Schneider Electric RSL1PVJU General Purpose Relay 1500 Va

Product Description

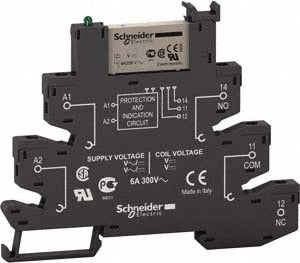

The SCHNEIDER ELECTRIC RSL1PVJU is an electromechanical general purpose relay rated at 1,500 VA, designed for control circuit switching in industrial and commercial electrical systems. It features a single-pole double-throw (SPDT) contact form and accepts a 12 VAC/VDC coil voltage, making it suitable for low-voltage control applications. The screw terminal connection simplifies field wiring and reduces installation time. Rated at 6 amps at 12 volts, this relay handles typical relay logic and switching loads. Licensed electricians and industrial controls technicians are the primary installers for this type of device.

The RSL1PVJU is suited for use in residential, commercial, and light industrial control panels where a compact, reliable electromechanical relay is required. Its slim 6.2mm width allows dense mounting on DIN rail or panel assemblies. Applications include motor starter auxiliary circuits, HVAC control wiring, and programmable logic controller (PLC) output isolation. The screw terminal design is compatible with standard control panel wiring practices.

Key Features

• 1,500 VA power rating for reliable switching in control circuit applications
• SPDT contact form supports both normally open and normally closed switching in a single device
• 12 VAC/VDC coil voltage for compatibility with low-voltage control systems
• Screw terminal connection for secure, tool-accessible field wiring
• Compact 6.2mm wide profile for high-density panel installations
• RoHS compliant; meets CE, CSA, cULus, UL 508, GOST, and IEC standards

Compatibility

Designed as an OEM-style replacement general purpose relay for use in industrial and commercial control panel applications requiring a 12 VAC/VDC SPDT electromechanical relay with screw terminals.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and applicable local codes. De-energize the control panel and verify zero voltage at the relay socket before removing or installing the relay. Screw terminals should be tightened to the panel or socket manufacturer's specified torque using an appropriate screwdriver. Do not exceed the relay's rated voltage, current, or VA capacity during operation.
