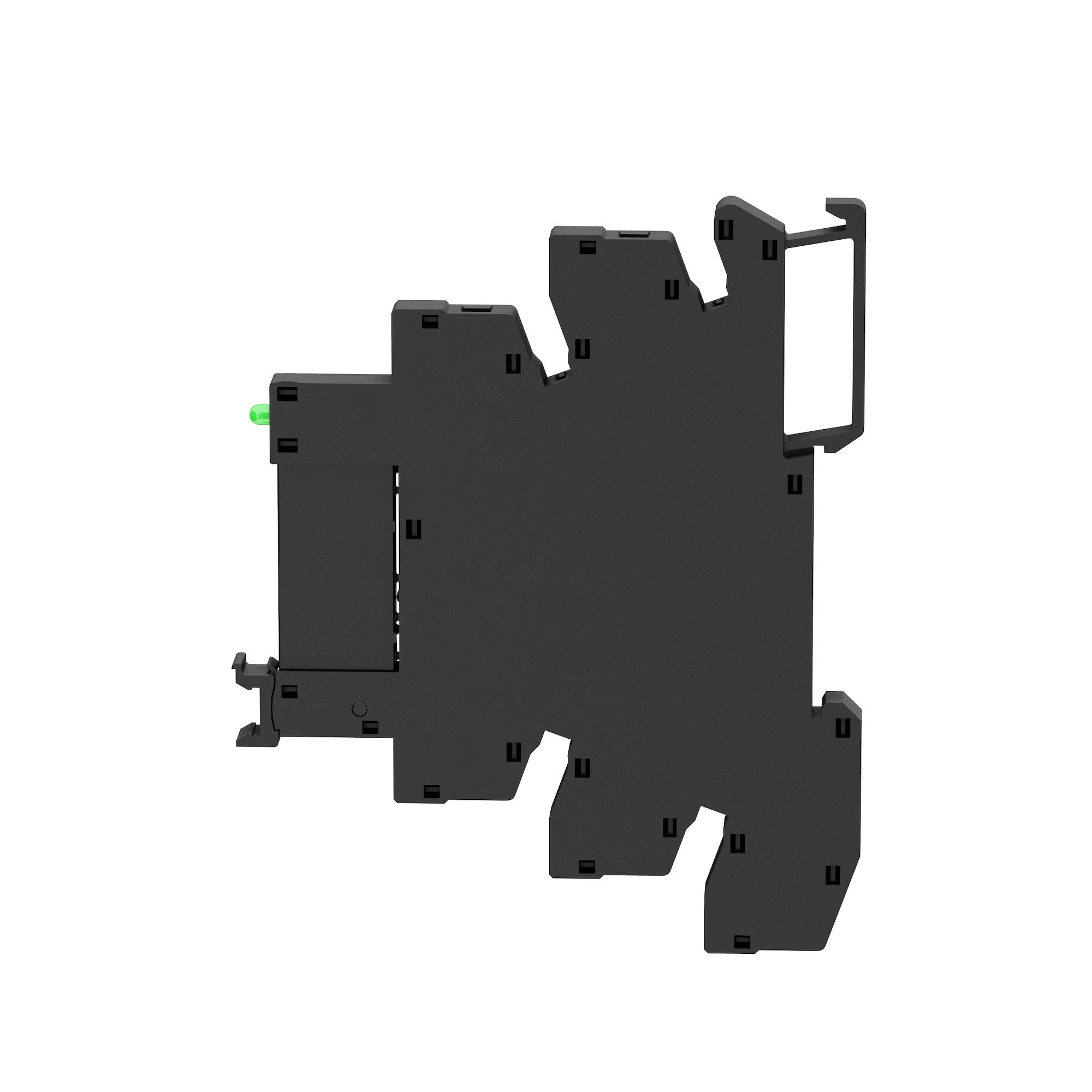

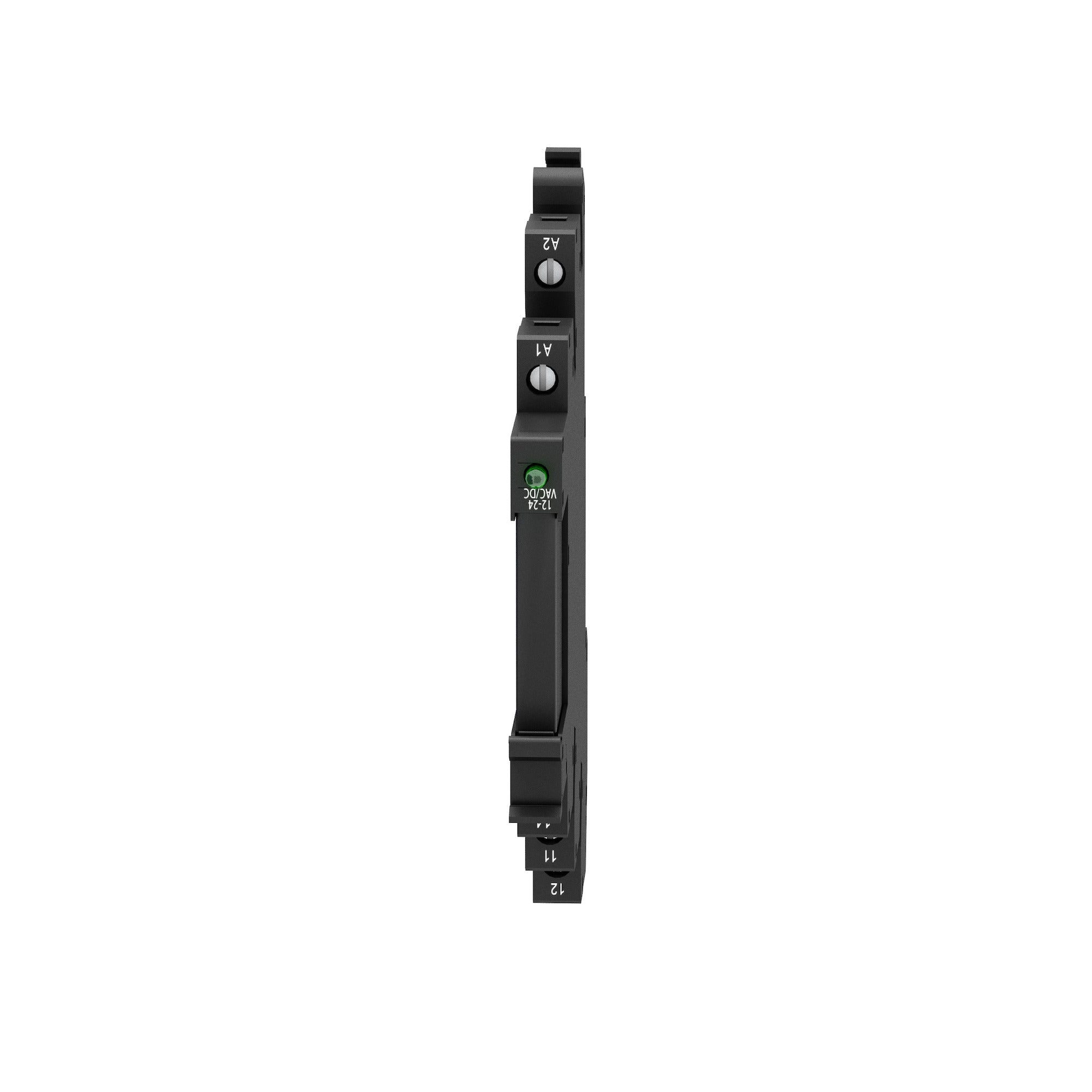

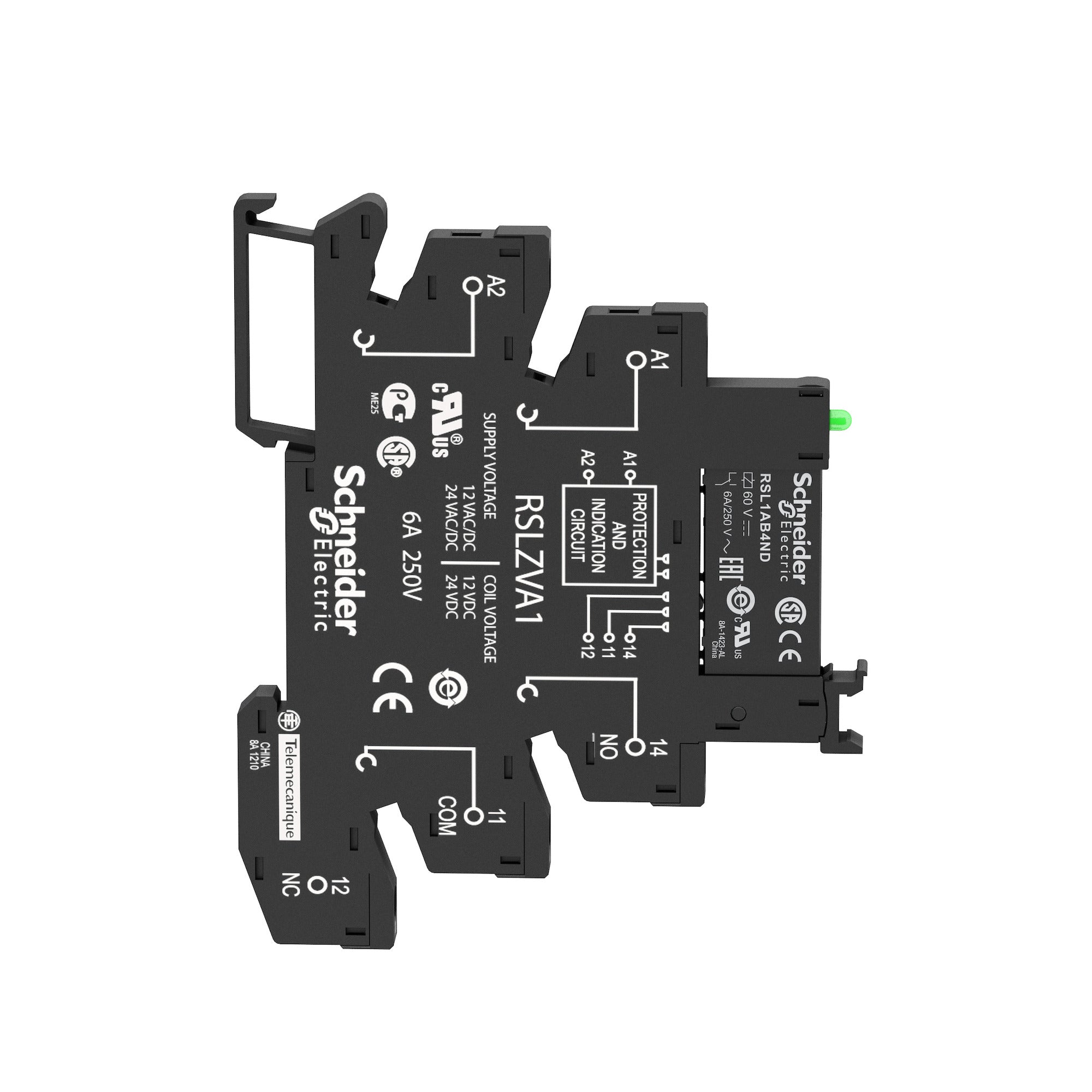

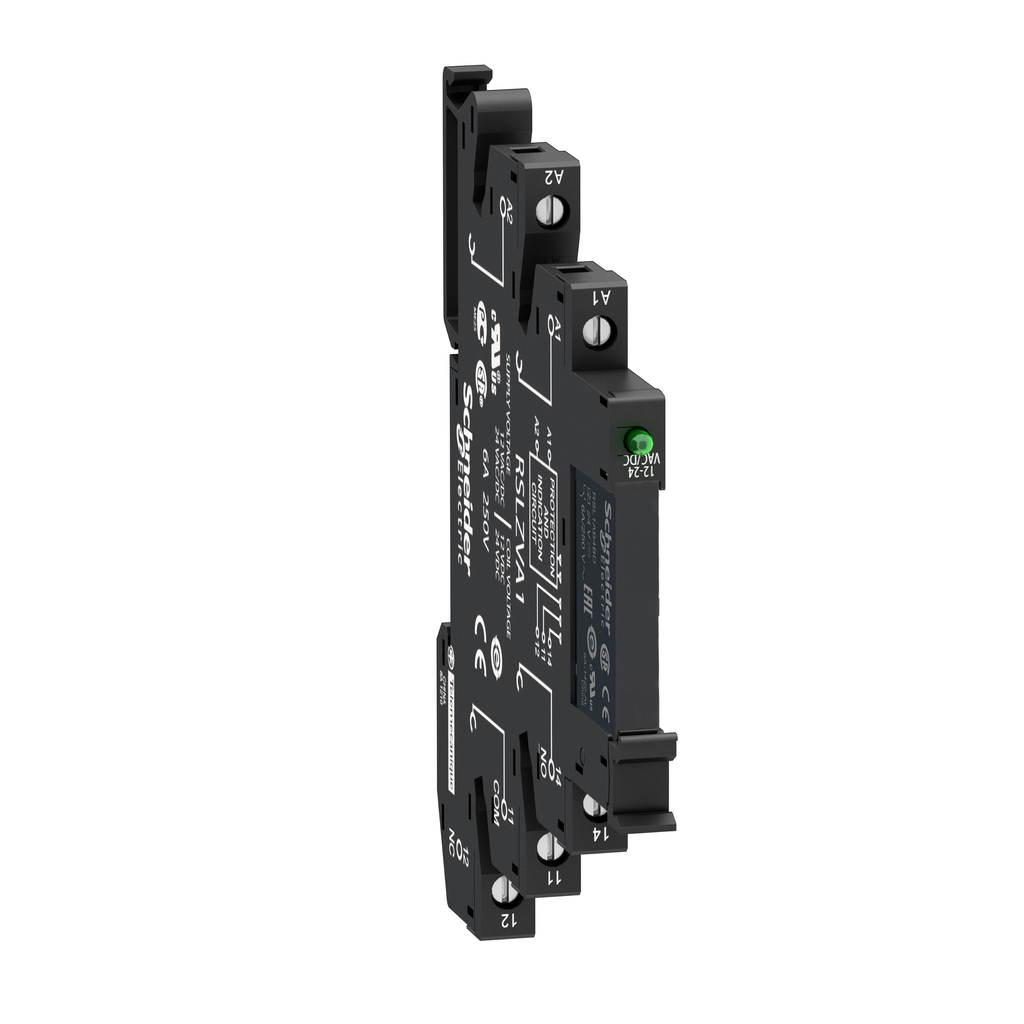

Schneider Electric RSL1PVFU Slim Interface Relay 110 VAC/VDC 6 Amp 1NO 1NC Din Rail

Product Description

Schneider Electric RSL1PVFU is a slim interface relay designed for various control and automation applications. It operates at a coil control voltage of sixty volts DC and is built with one single pole double throw (SPDT) contact rated at six amps. This relay is highly adaptable, allowing for mounting in tight spaces due to its width of six millimeters. The RSL1PVFU supports high rated current use and offers an LED indicator for clear status signaling, enhancing reliability in machine operation.

• Coil control voltage: 60V DC
• Contact configuration: 1 C/O
• Operating cycles: Up to 72000 cycles/hour without load

Product Highlights

This relay is ideal for integration into hard-wired logic automated systems to enhance functionalities of industrial programmable logic controllers (PLCs). It has a robust design conducive for both high breaking capacity and low-level current applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: RSL1PVFU

Technical Specifications

• Input Voltage: 110 V
• Amperage: 6 Amp
• Weight: 0.06 lb
• Depth: 95 mm
• Width: 6.2 mm
• Height: 78.6 mm
• Operating Temperature: -40 to 70 degrees C
• Country of Origin: China
