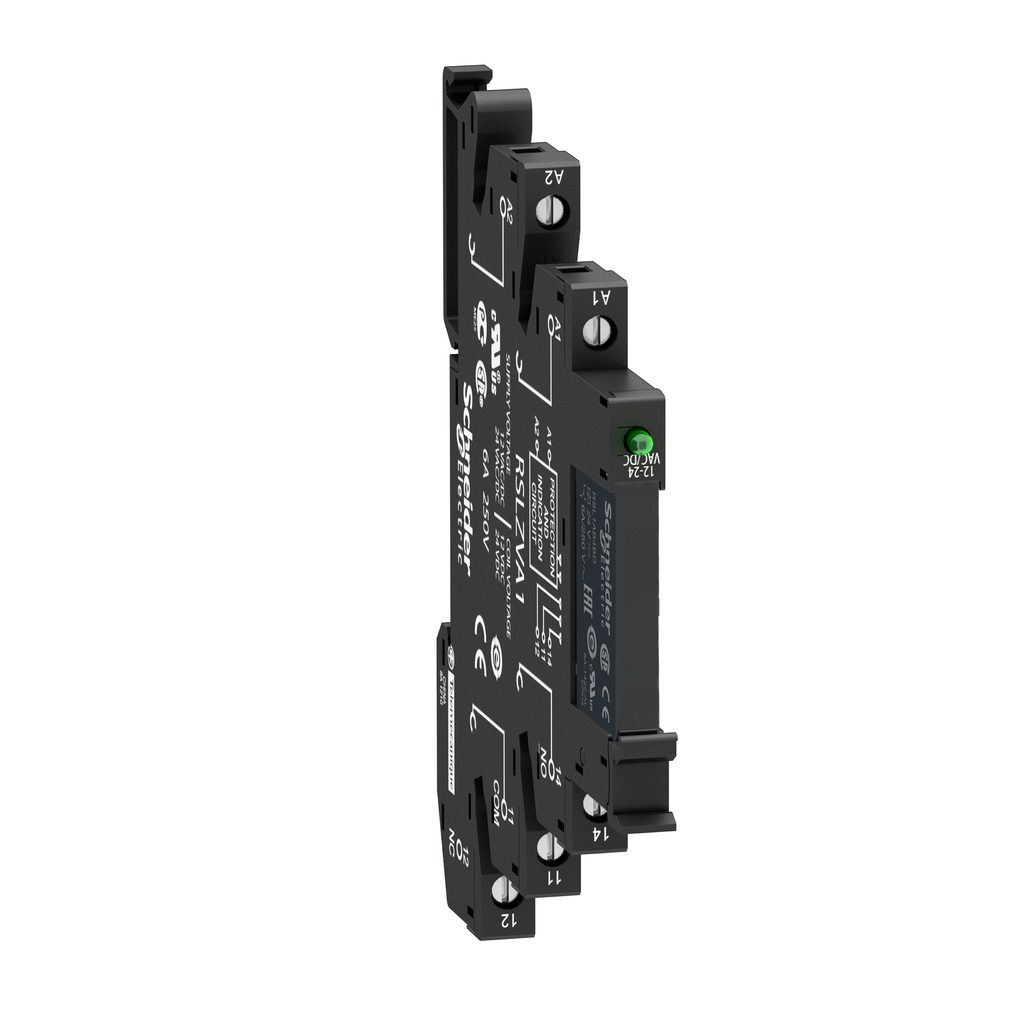

Schneider Electric RSL1PVBU Square D 24 VAC/VDC 6 Amp 1NO 1NC Din Rail/Socket Mount Slim Interface Relay

Product Description

Schneider Electric's RSL1PVBU is a slim interfacing relay designed for various automation applications. This relay operates on a coil control voltage of twenty-four volts DC. It features one changeover contact, SPDT, rated for six amps. The relay provides an extensive choice for contact configurations to accommodate high-rated current uses. An integrated LED indicator enhances usability by signaling operational status in both bright and dark conditions. The relay's compact design ensures it can fit into tight spaces, increasing design flexibility and improving the reliability of machinery. It can accommodate high breaking capacity and low-level current applications effectively. The relay is suitable for hard-wired logic systems, complementing the functions of programmable logic controllers (PLCs). This device can handle up to eighteen thousand operating cycles per hour without load and three hundred sixty cycles per hour under load.

• Operating voltage: 24V DC with SPDT contact configuration
• Compact form factor with a width of 6mm
• LED status indicator for visibility

Product Highlights

The RSL1PVBU is ideal for various control and automation applications, ensuring reliable performance and simple installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RSL1PVBU
• Input Voltage: 21.6 - 28.8 V
• Operating Cycles: <= 18000 cycles/hour (no-load); <= 360 cycles/hour (under load)
• Contact Configuration: 1 C/O
• Amperage Rating: 6 Amp
• Operating Temperature: -40 to 55 degrees C
• Country of Origin: China
• Warranty Length: 18 months
