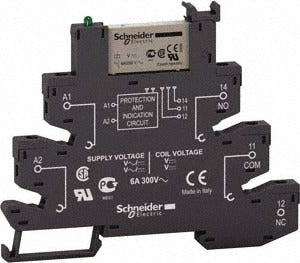

Schneider Electric RSL1PRFU General Purpose Relay 1500 Va

Product Description

The SCHNEIDER ELECTRIC RSL1PRFU is an electromechanical general purpose relay rated at 1,500 VA with a single-pole double-throw (SPDT) contact form. It operates on a coil voltage of 110 VAC or 110 VDC and is rated for 6 amps at 110 volts. The RSL1PRFU uses a spring-style terminal connection, which supports tool-free wire insertion and secure conductor retention. This relay is designed for control panel and machine automation applications and is typically installed by licensed electricians or automation technicians working with low-voltage control circuits.

The RSL1PRFU is suited for use in industrial control panels, building automation systems, and general-purpose switching applications where a compact, DIN-rail-compatible relay is required. Its 110 VAC and 110 VDC dual-voltage coil rating makes it adaptable across a range of North American and international control circuit designs. The relay measures approximately 0.24 inches wide, 3.1 inches high, and 4.06 inches deep, making it well suited for space-constrained enclosures. It carries multiple certifications including cULus, CSA, CE, GOST, and is RoHS compliant.

Key Features

• 1,500 VA power rating for reliable switching in general-purpose control circuits
• SPDT contact form provides both normally open and normally closed output paths
• Spring terminal connection allows tool-free wiring and reduces installation time
• Dual coil voltage rating: 110 VAC and 110 VDC for flexible circuit compatibility
• Compact profile suited for high-density control panel layouts
• Certified to cULus, CSA, CE, GOST, UL 508, IEC 61810-1, and RoHS standards

Compatibility

Designed as an OEM-style replacement or new-installation relay for general-purpose industrial and commercial control panel applications requiring a 110 VAC or 110 VDC SPDT electromechanical relay with spring terminal connections.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize the control circuit and verify zero voltage before handling or wiring the relay. Spring terminals accept conductors without additional tools, but verify conductor gauge compatibility before insertion. Confirm coil voltage matches the control circuit supply before energizing the panel.
