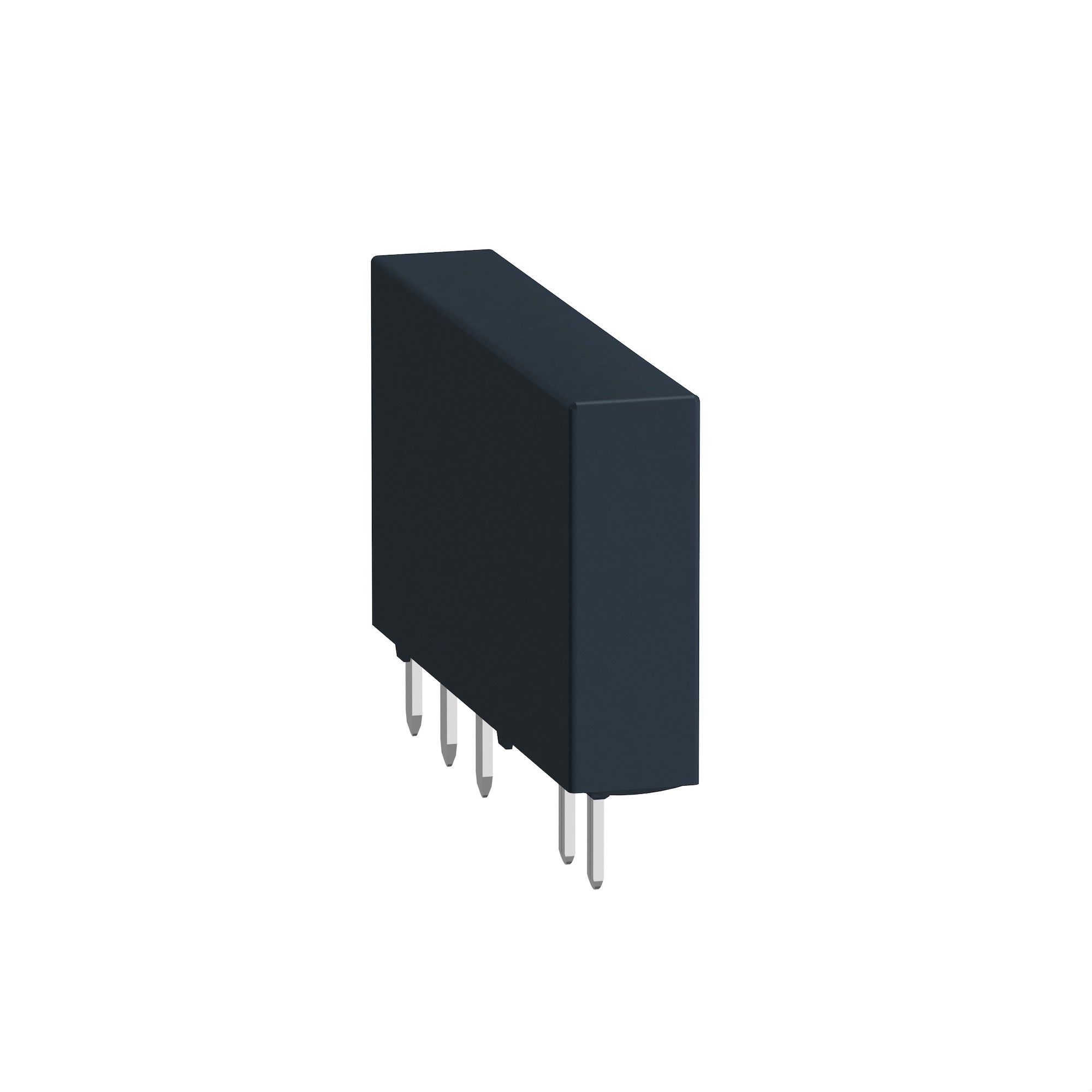

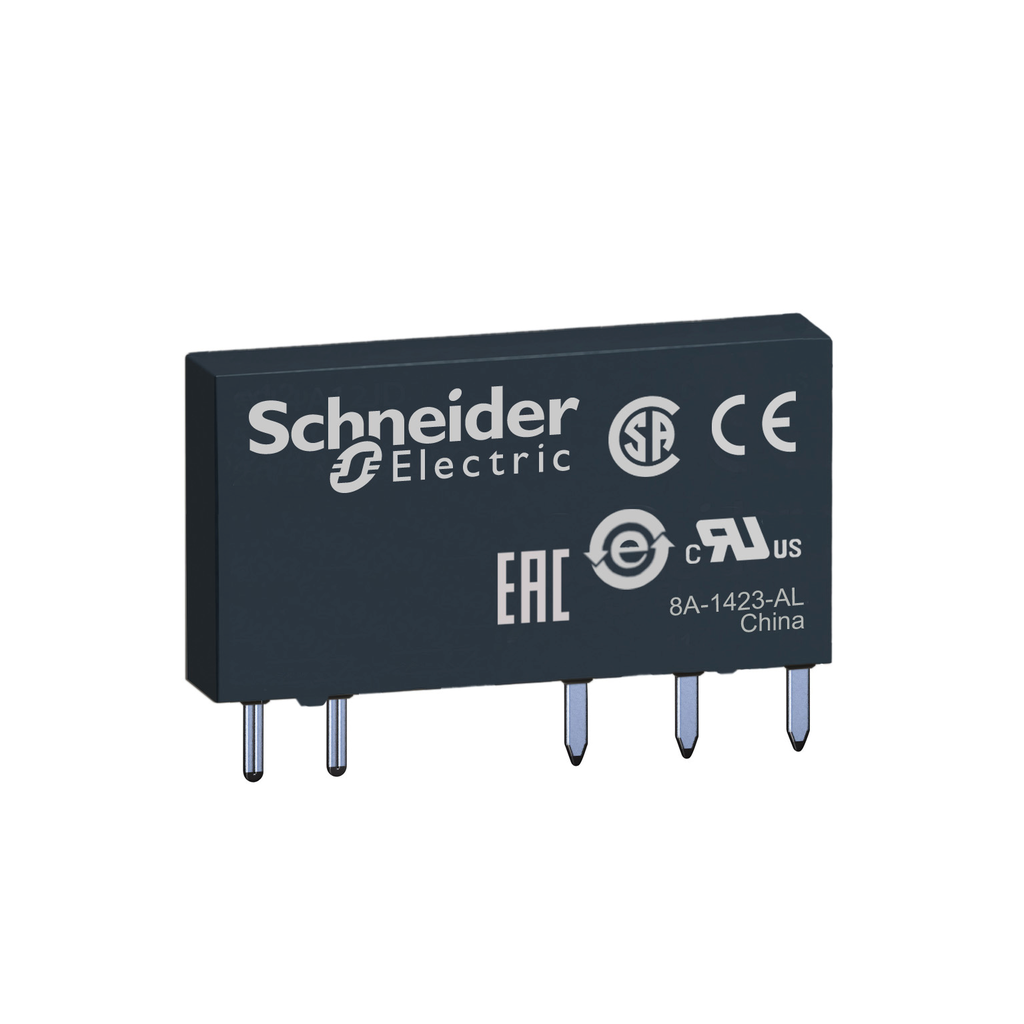

Schneider Electric RSL1AB4JD slim interface plug in relay 12V DC

Product Description

Schneider Electric RSL1AB4JD is a slim interface plug-in relay with a coil control voltage of twelve volts DC. It features one changeover contact SPDT rated at six amps. This relay reduces the size of enclosures, enabling increased machine reliability. Its compact design, at six millimeters in width, allows for almost universal mounting options. The device is easy to install and remove from its socket and is compatible with high breaking capacity or low-level current applications. It integrates into hard-wired logic systems to enhance the functions of industrial programmable logic controllers (PLCs). The relay includes a status LED for visibility in both day and night conditions.

• Single pole double throw (SPDT) contact
• Compatible with automated control systems
• Compact size for versatile installation

Product Highlights

This relay is designed for ease of use in various applications, streamlining control processes.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: RSL1AB4JD

Technical Specifications

• Control Voltage: 12V DC
• Contact Rating: 6A
• Dimensions: 0.73 in width, 0.73 in depth, 1.10 in height
• Weight: 0.01 lb
• Operating Cycles: ≤ 18000 cycles/hour no-load
• Storage Temperature: -40 to 70 degrees C
• Operating Temperature: -40 to 55 degrees C
