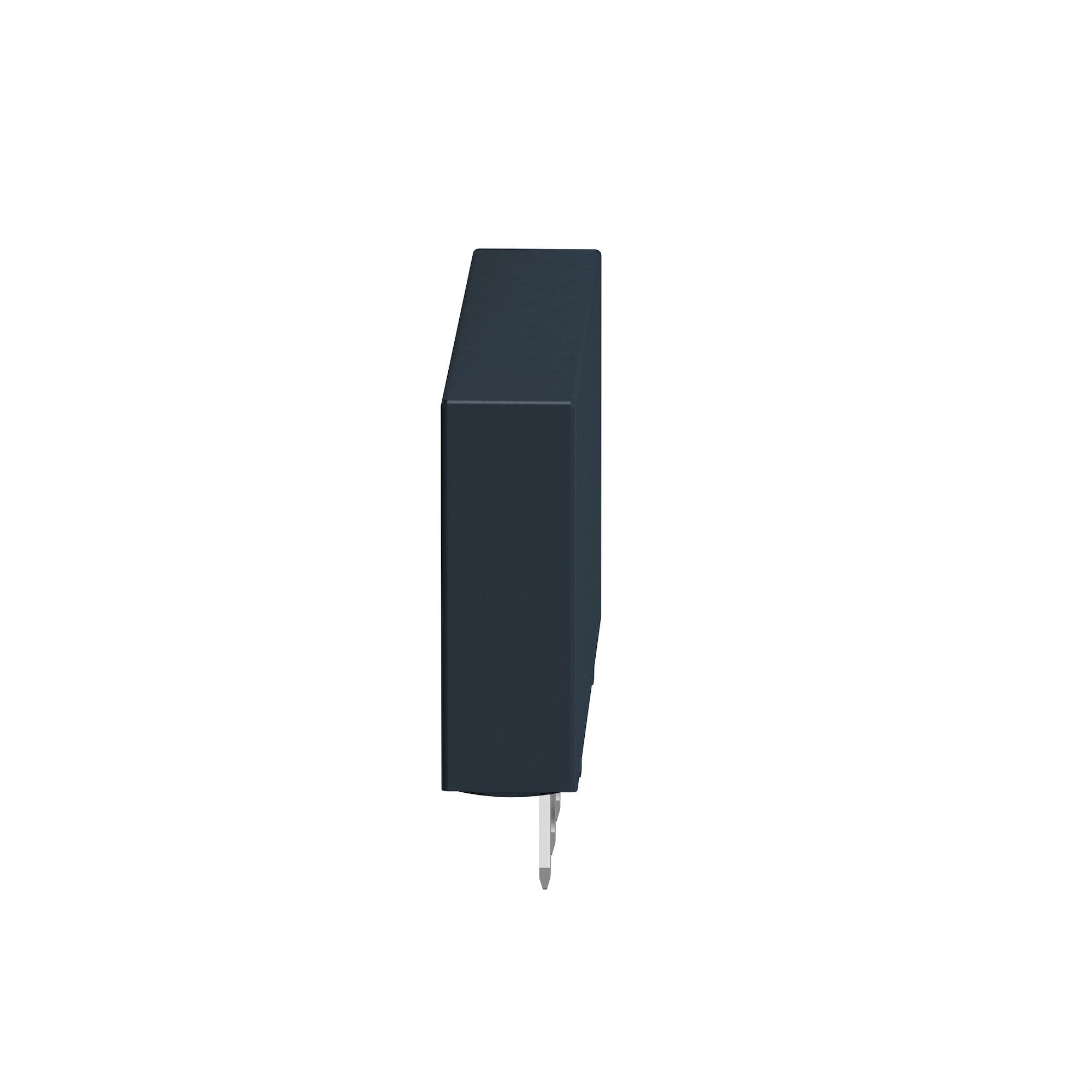

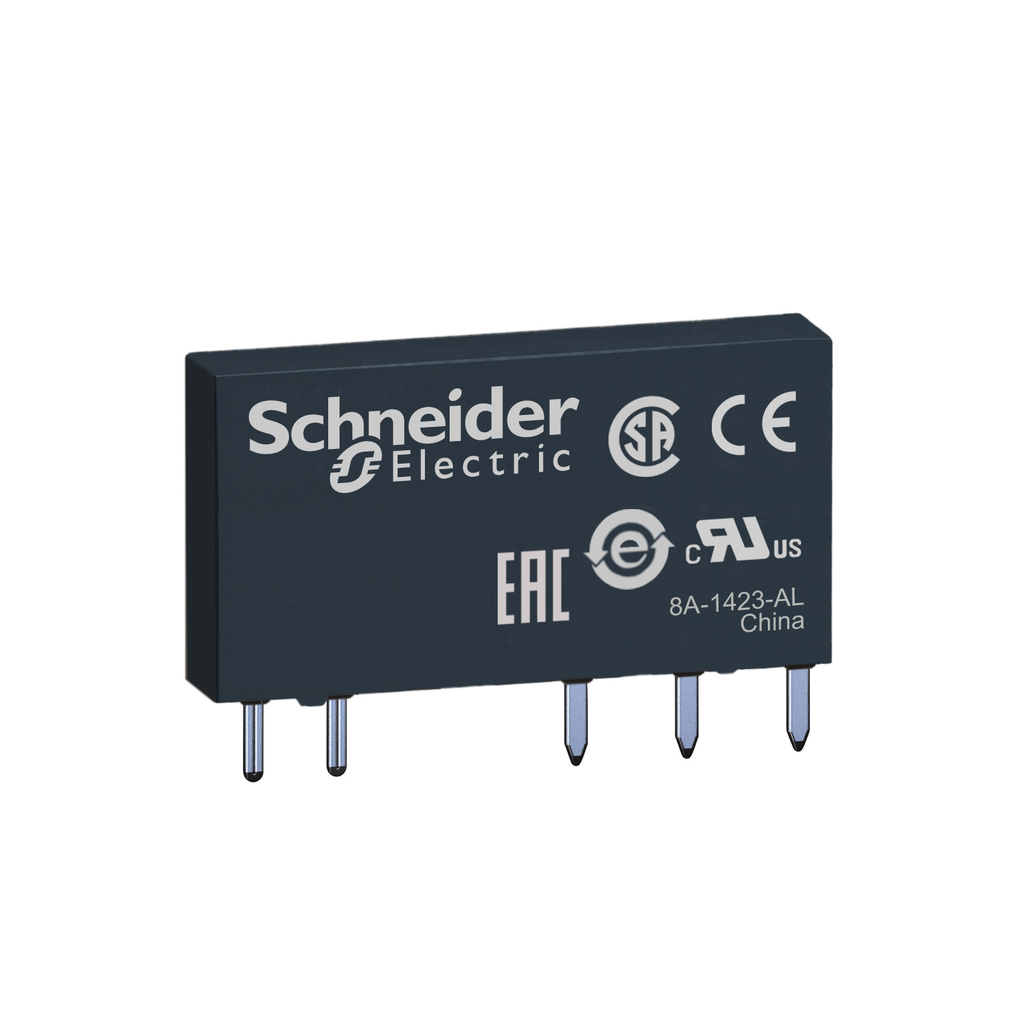

Schneider Electric RSL1AB4BD Square D 24 VAC/VDC 6 Amp 1NO 1NC Din Rail/Socket Mount Slim Interface Relay

Product Description

This Schneider Electric RSL1AB4BD slim interface relay offers a coil control voltage of twenty-four volts DC and features one changeover contact SPDT with a six amp rating. It includes a range of contact options suitable for high current applications. The compact design reduces the overall enclosure size, enhancing machine reliability and allowing for nearly universal mounting. Measuring only six millimeters in width, it is one of the slimmest interface relays available. Installation and removal from its socket are straightforward. It is compatible with both high breaking capacity and low-level current applications, making it ideal for hard-wired logic automated systems that work with industrial programmable logic controllers (PLCs). Additionally, a status display with an LED signals operational status clearly both day and night.

• Single pole double throw (1NO 1NC) configuration
• Supports low-level current applications
• Designed for easy installation and withdrawal

Product Highlights

Compact design enhances machine reliability and allows for easy integration into various control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: RSL1AB4BD

Technical Specifications

• Catalog Number: RSL1AB4BD
• Coil Voltage: 24V DC
• Rating: 6 Amp
• Contact Configuration: 1 C/O
• Width: 0.73 in
• Height: 28 mm
• Depth: 18.5 mm
• Weight: 0.01 lb
