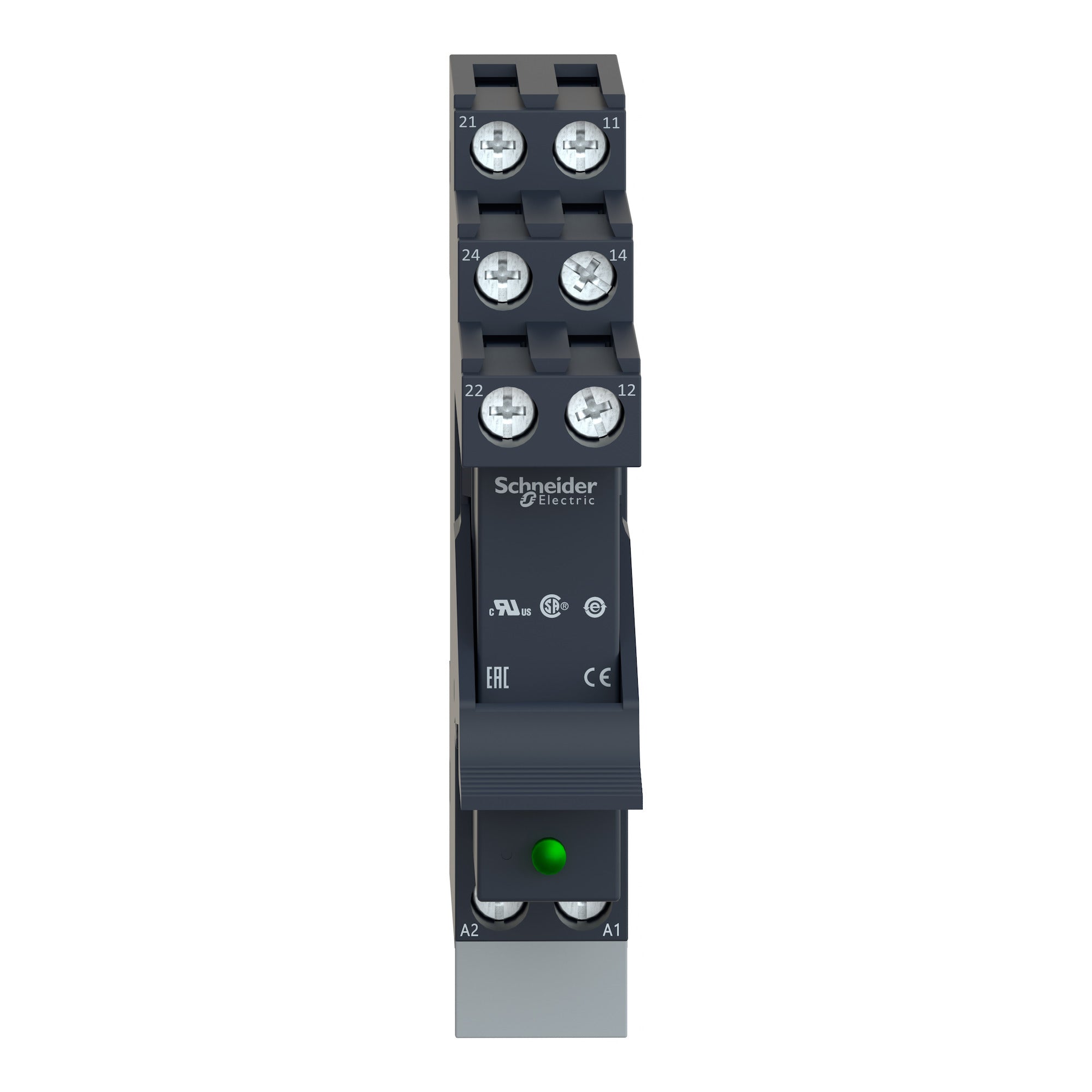

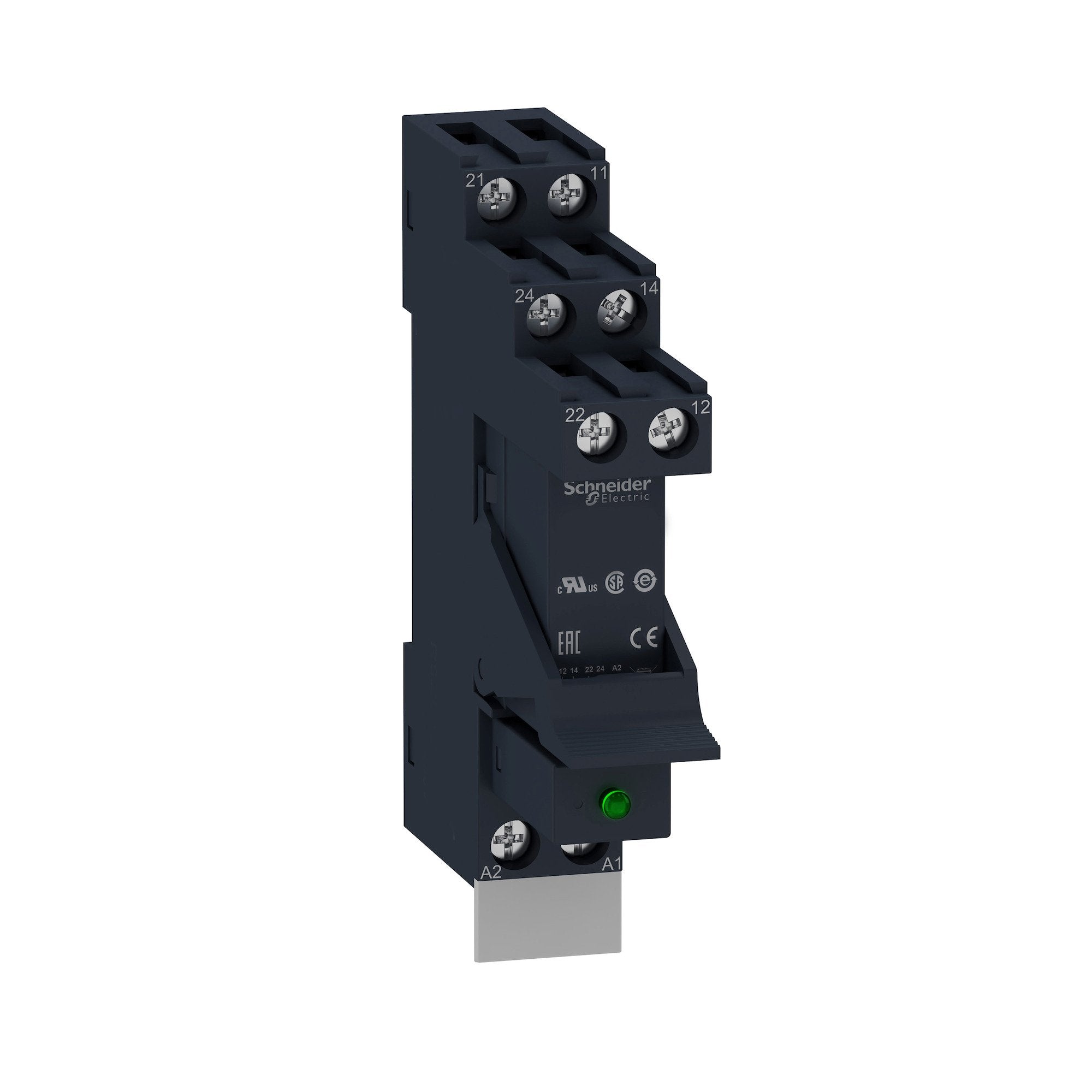

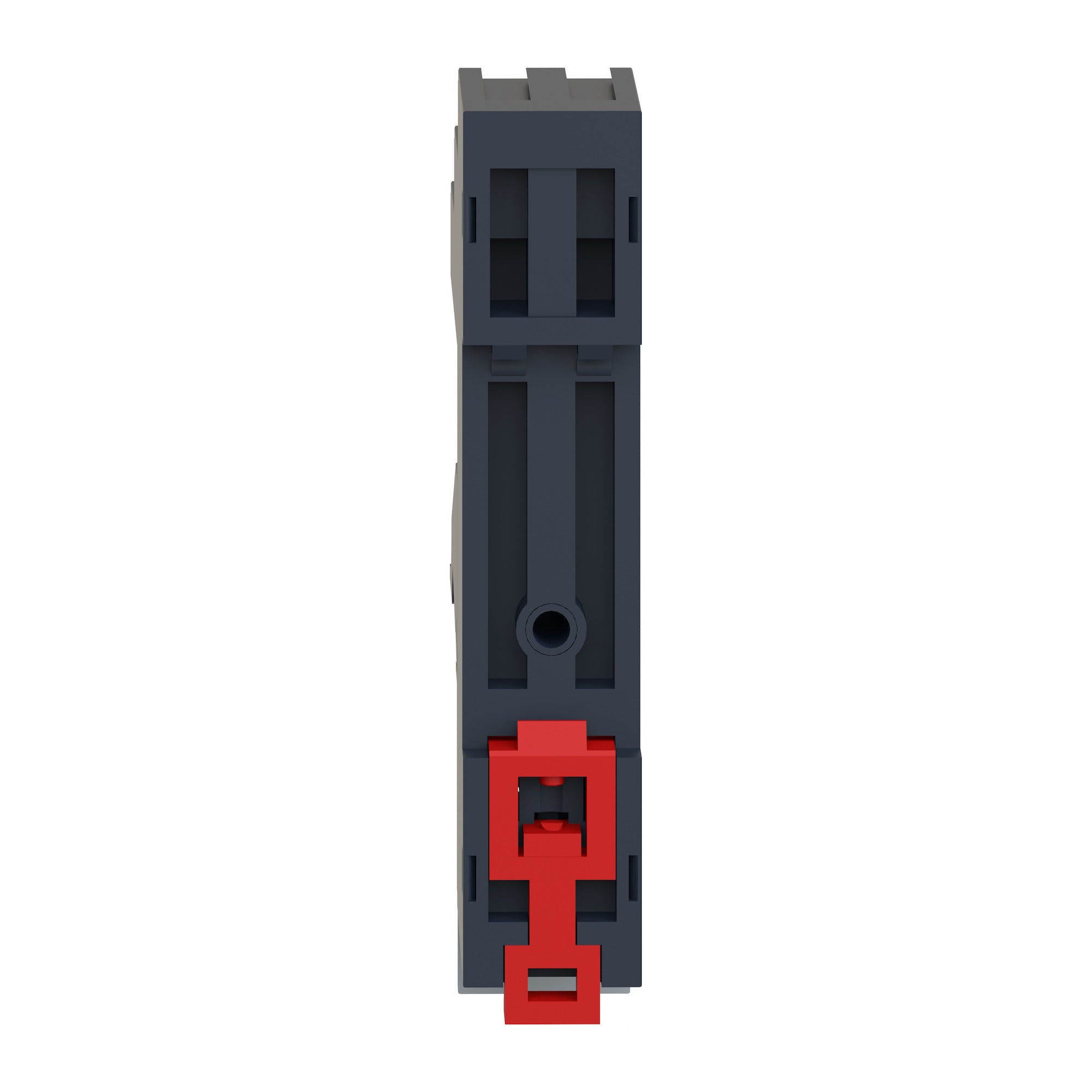

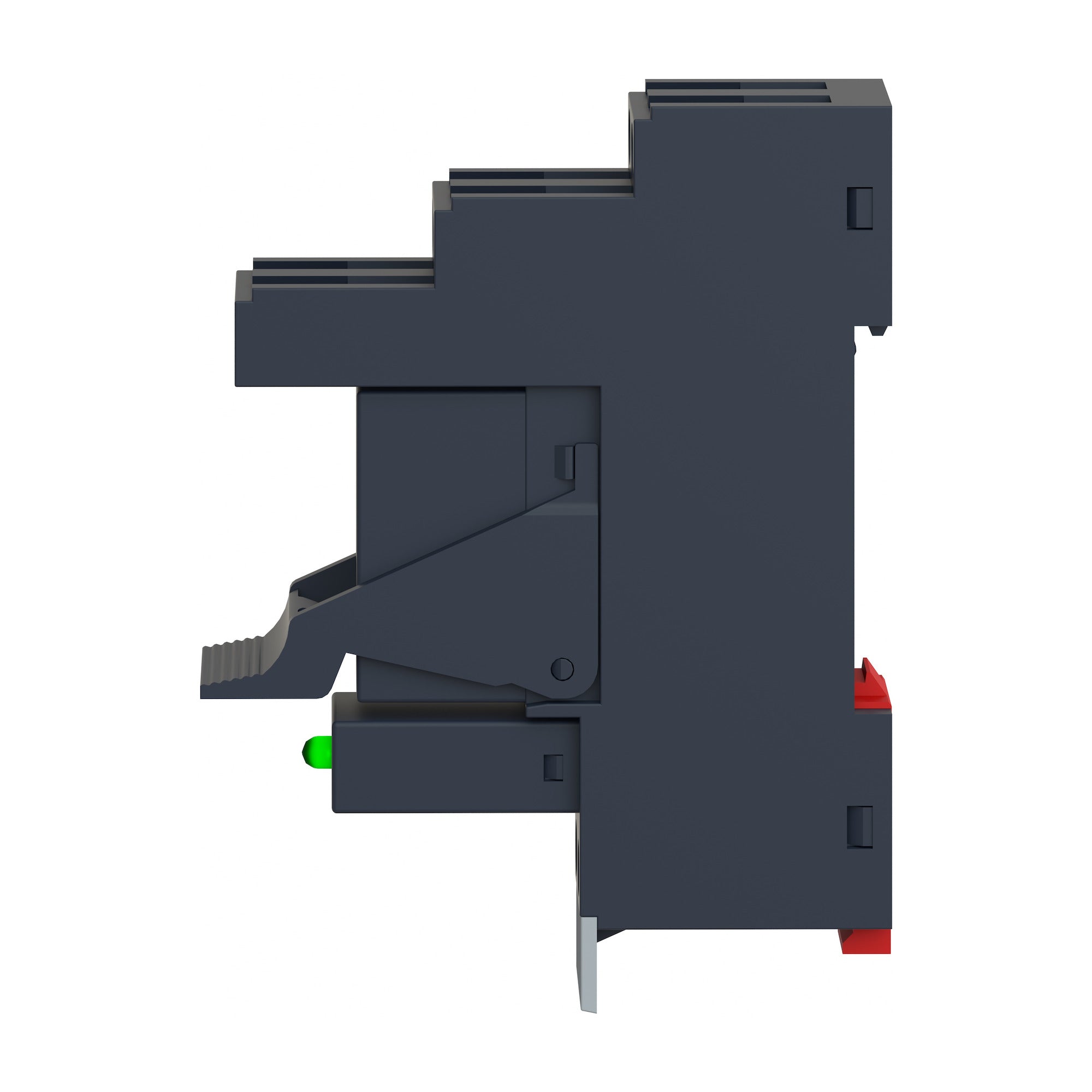

Schneider Electric RSB2A080F7PV Interface Plug-In Relay 8A 2CO 120V AC

Product Description

This interface plug-in relay is part of the Schneider Electric Harmony electromechanical relays line. The model number is RSB2A080F7PV. It is a pre-assembled electromechanical relay equipped with a separate contact terminal socket featuring a varistor protection module and a maintaining clamp. The relay operates at eight amperes and one hundred twenty volts AC with two changeover contacts.

• Pre-assembled for reduced installation time
• Comes with LED indicator for easy status monitoring
• Compatible with industrial machines, HVAC, and automation control

Product Highlights

This relay is designed to fit various applications across industrial settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: RSB2A080F7PV

Technical Specifications

• Catalog Number: RSB2A080F7PV
• Manufacturer: Schneider Electric
• Relay Type: Electromechanical
• Rated Current: 8A
• Voltage Rating: 120V AC
• Coil Resistance: 8800 Ohm
• Number of Contacts: 2 CO
• Product Weight: 0.057 kg
