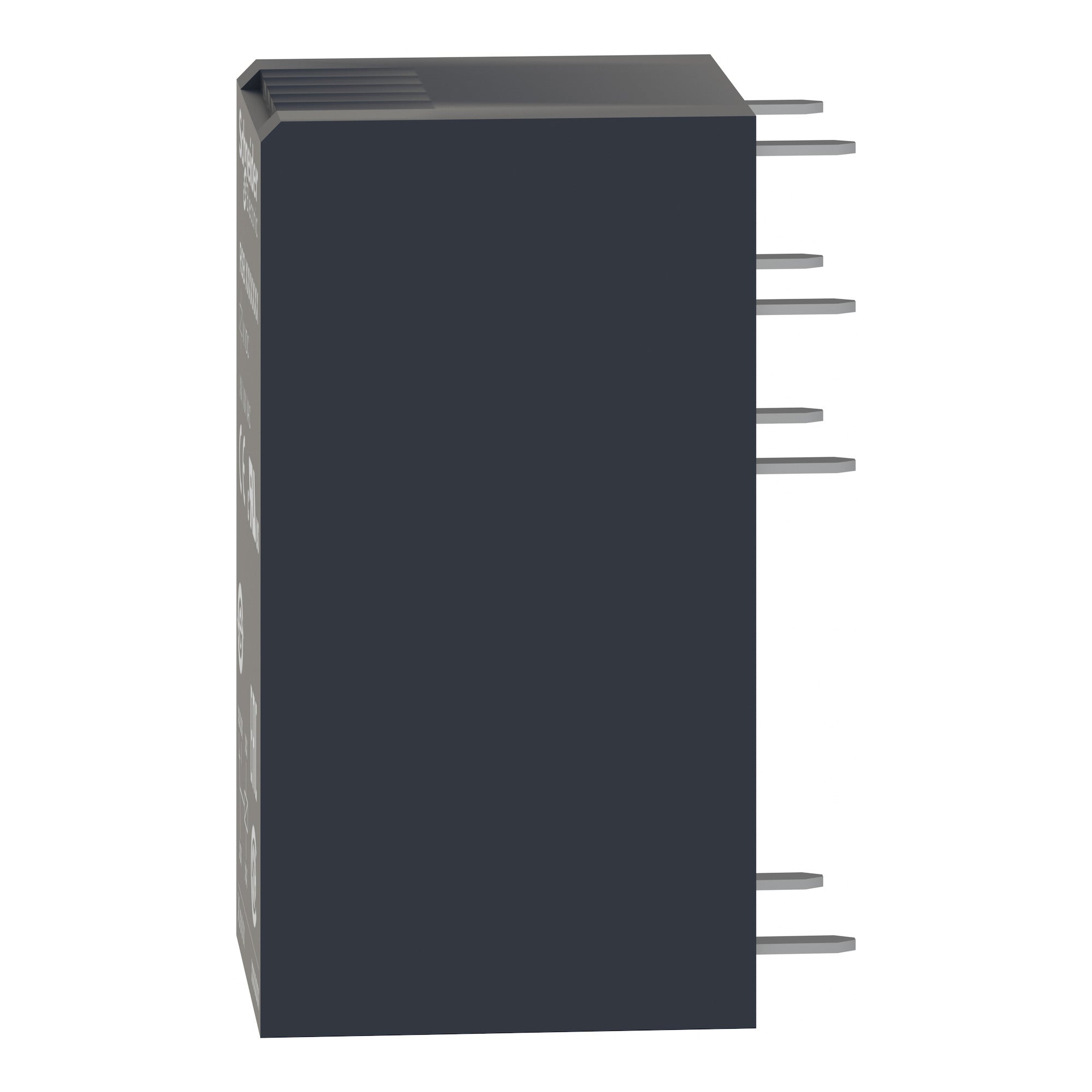

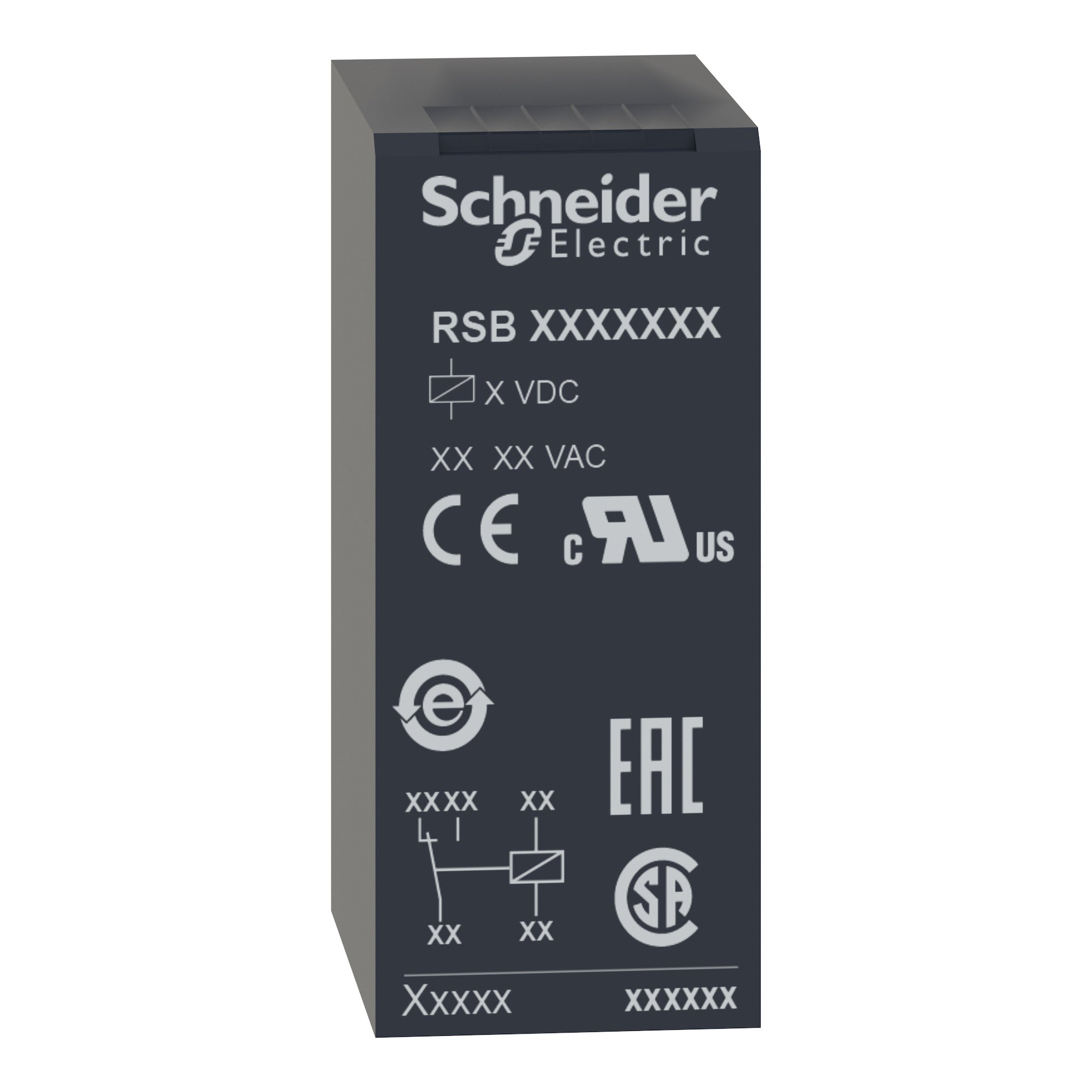

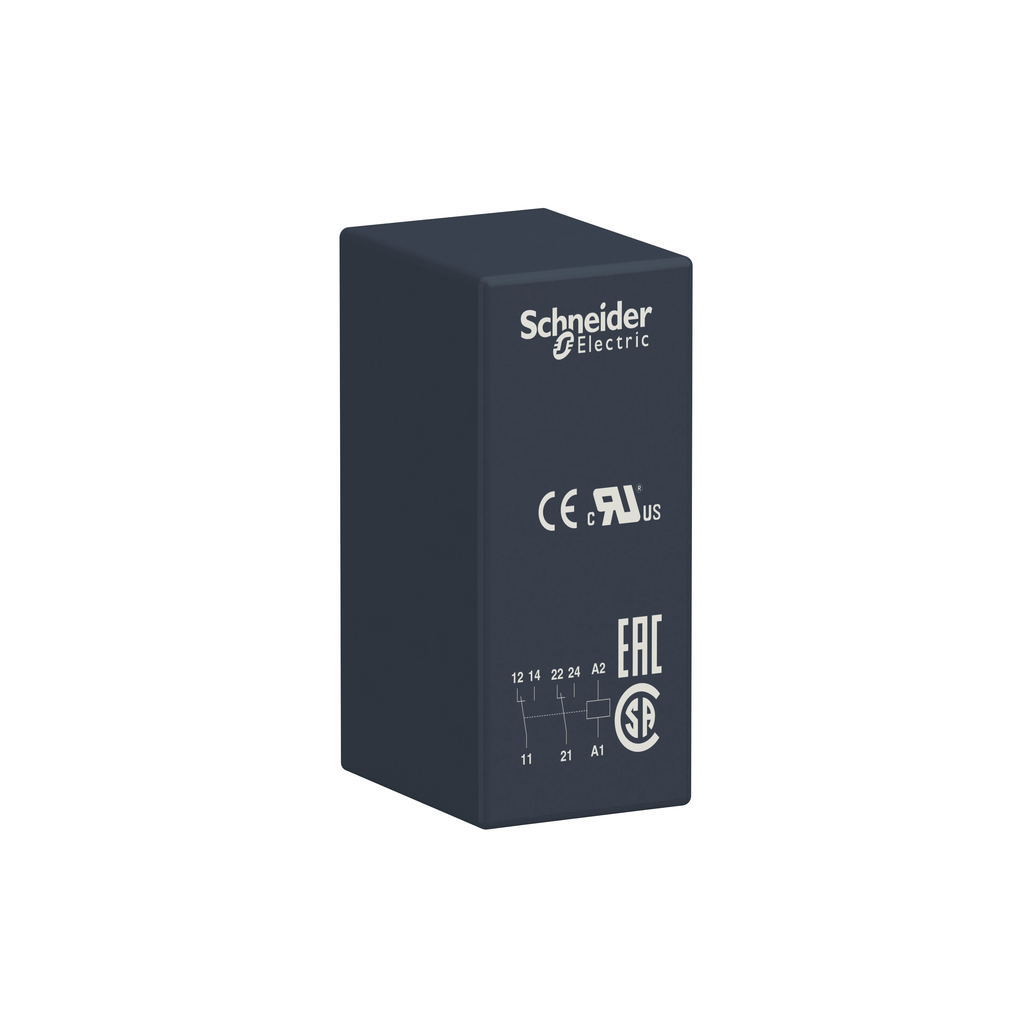

Schneider Electric RSB2A080BD Square D 24 VDC 8 Amp DPDT Plug-In Relay

Product Description

Schneider Electric RSB2A080BD is a plug-in relay with a control coil voltage of twenty-four volts DC. It features 2 changeover contacts in a double pole double throw configuration rated for eight amps. The compact design reduces the enclosure size and enhances machine reliability. Its plug-in type simplifies installation and maintenance. This relay is IP40 rated and allows for visual inspection of contact status through a transparent cover.

• Control voltage: 24V DC
• Contact configuration: 2 changeover (2 C/O)
• Operating temperature range: -40 to eighty-five degrees Celsius

Product Highlights

This relay is designed to facilitate control in automation and motor control applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: RSB2A080BD
• Voltage: 24 VDC
• Amperage: 8 A
• Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
• Enclosure Rating: IP40
• Contact Material: Silver Alloy
• Operating Temperature: -40 to 85 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Country of Origin: Austria
• Warranty: Eighteen months
