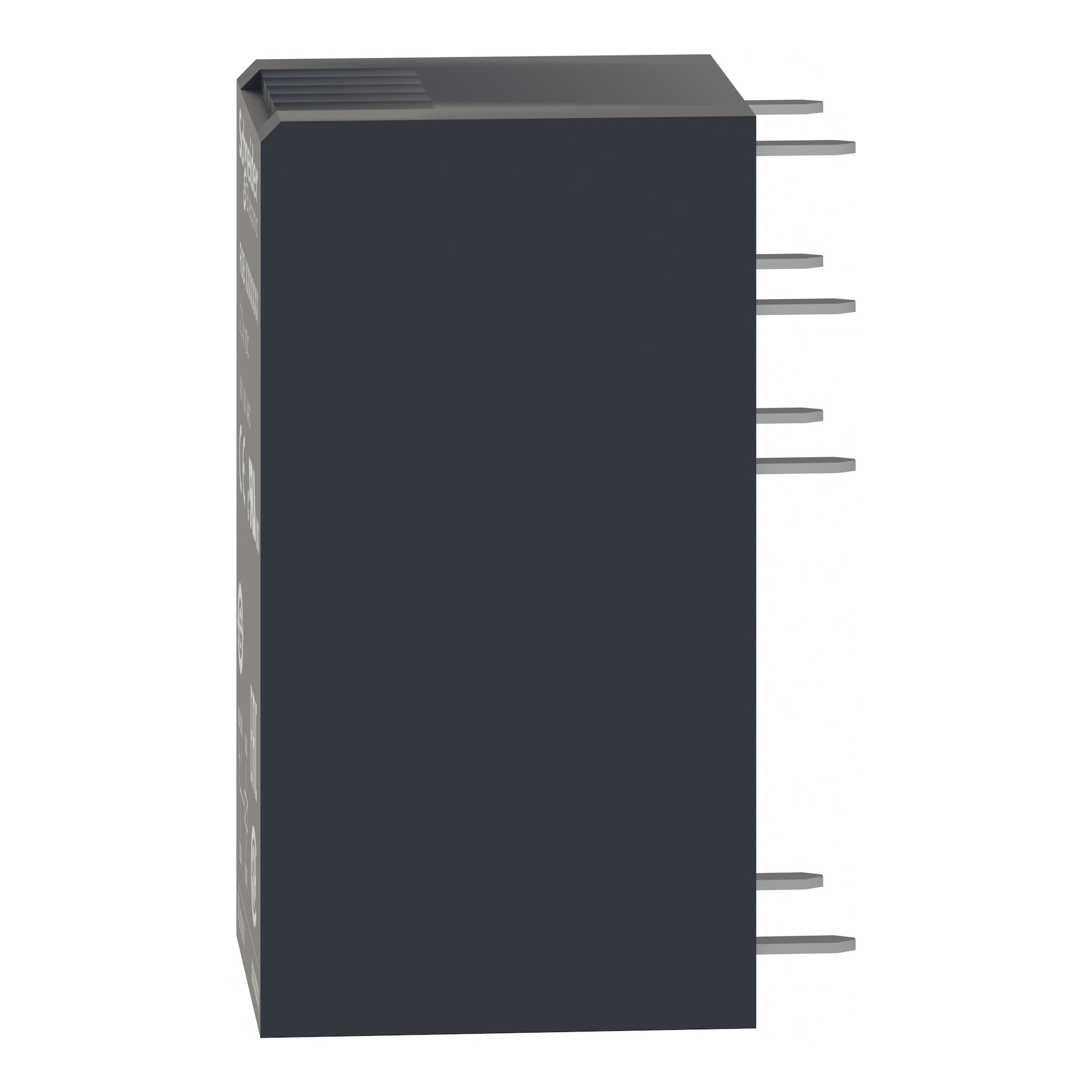

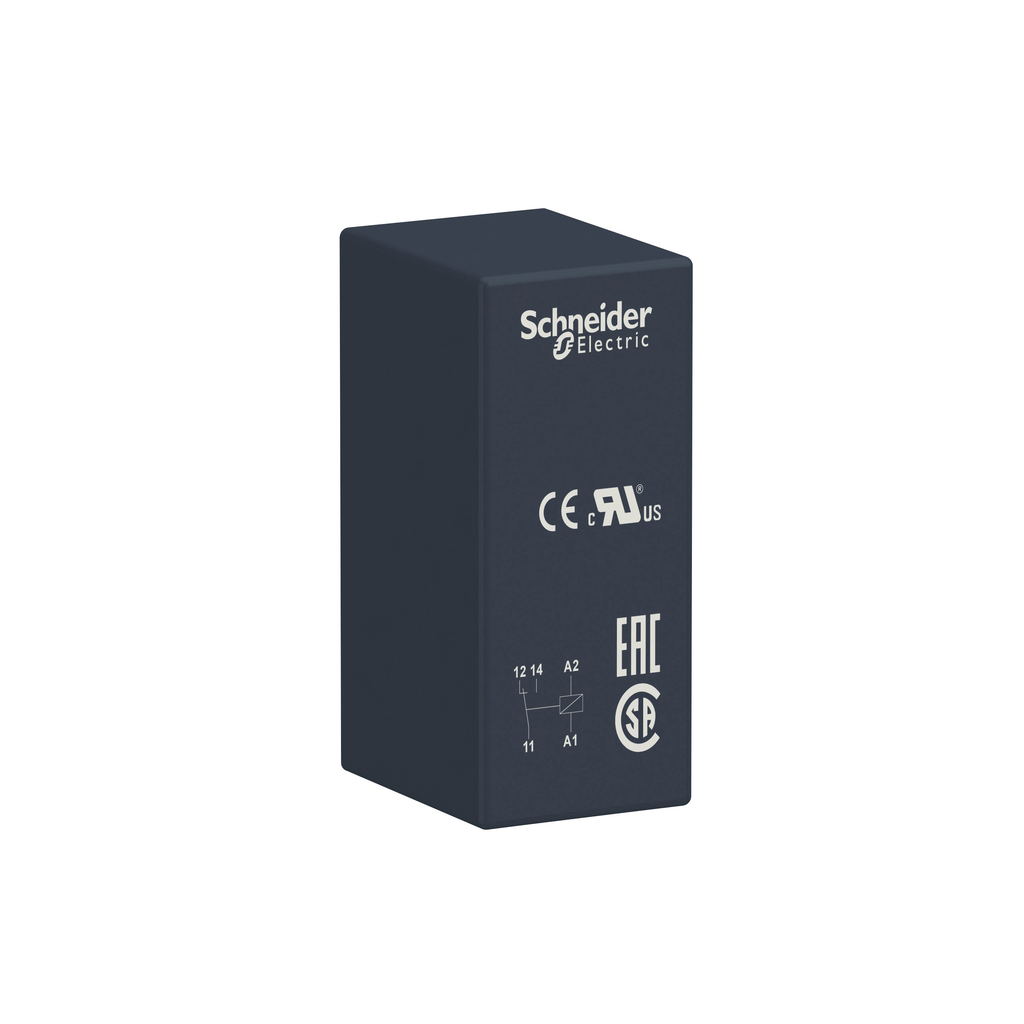

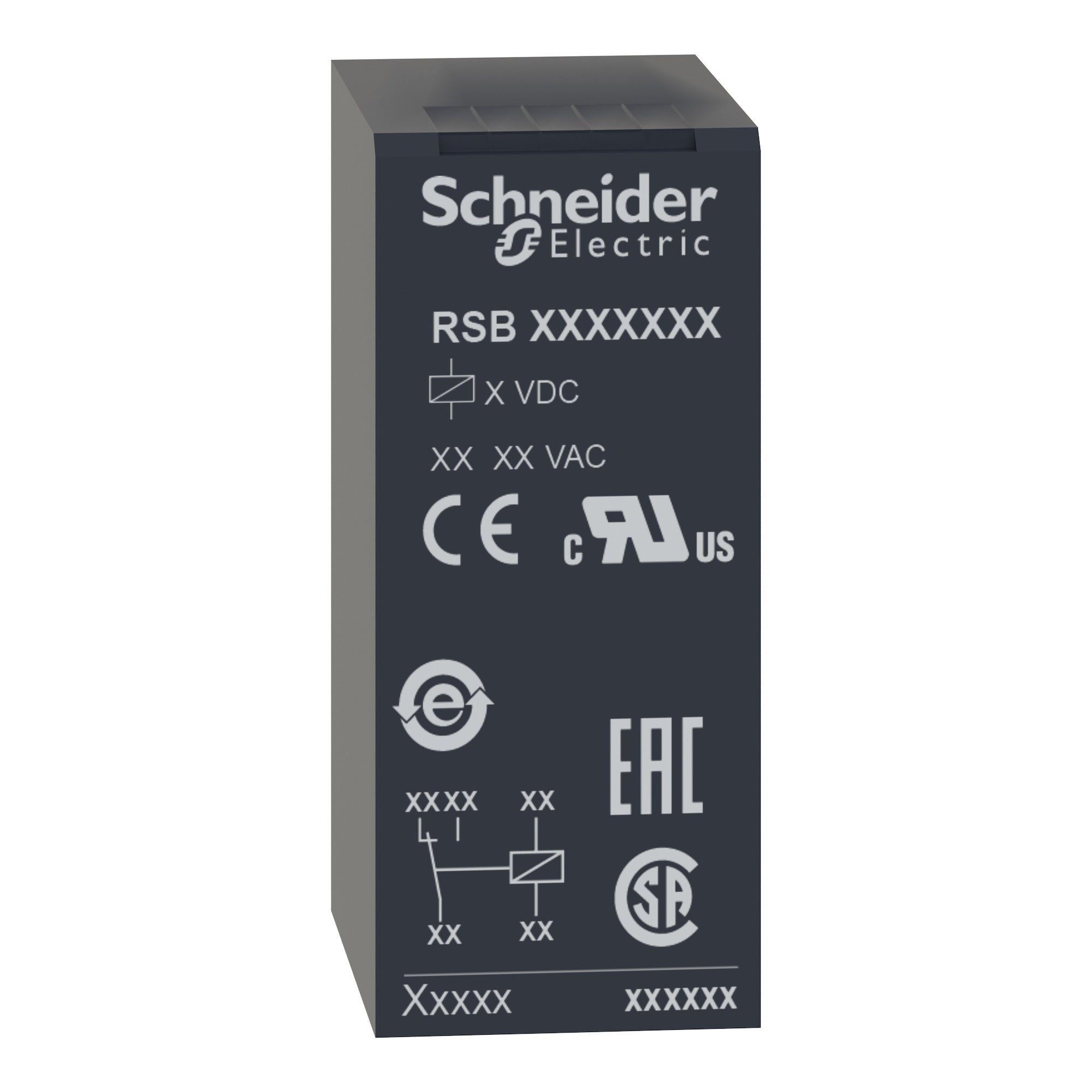

Schneider Electric RSB1A120F7 Square D RSB1A120F7 120 VAC 12 Amp SPDT 1CO

Product Description

This Schneider Electric RSB1A120F7 interfacing plug-in relay has a control coil voltage of 120V AC. It features one changeover contact, single pole double throw configuration with a rating of twelve amps. This relay is compact, enhancing machine reliability and can be mounted in various locations. The plug-in design allows for easy installation and maintenance. The product is rated IP40 and has a transparent cover that enables visual inspection of the contact status.

• Control voltage: 120V AC
• Changeover contact with a twelve amp rating
• Compact size for versatile mounting

Product Highlights

Ideal for applications requiring reliable control in confined spaces.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: RSB1A120F7
• Voltage Rating: 120V AC
• Amperage Rating: 12 Amp
• Contact Configuration: 1 CO
• Enclosure Rating: IP 40
• Country of Origin: Austria
• Resistance: 8360 Ohm at twenty degrees Celsius
• Operating Temperature: Negative forty to seventy degrees Celsius
