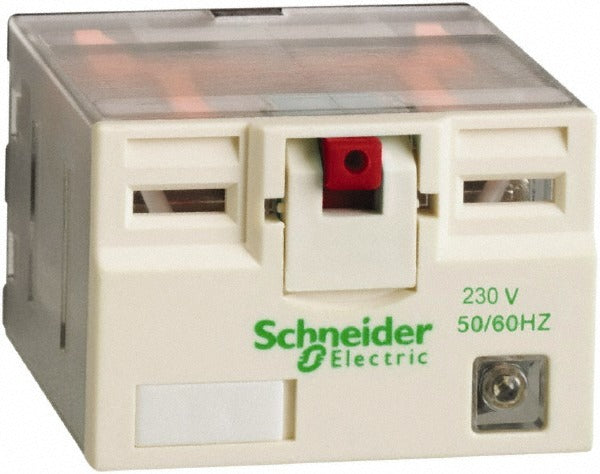

Schneider Electric RPM42P7 General Purpose Relay 3750 Va

Product Description

The SCHNEIDER ELECTRIC RPM42P7 is a plug-in electromechanical general purpose relay rated at 3,750 VA with a 15 amp contact rating at 250 VAC or 28 VDC. It features a 4CO (4-pole changeover) contact form and is designed for control panel and industrial automation applications where reliable switching of moderate loads is required. The coil operates at 230 VAC. Licensed electricians and panel builders install this relay in control circuits, motor starter panels, and general switching applications. Its plug-in terminal type allows for straightforward socket mounting and field replacement without rewiring.

This relay is suited for residential, commercial, and light industrial control panel installations. Typical applications include HVAC control circuits, machine control panels, building automation systems, and other general-purpose switching scenarios requiring a compact 4CO relay. The plug-in design makes it well-suited for installations where relay replacement speed and serviceability are priorities. It meets recognized North American and international standards, making it appropriate for a broad range of regulated installations.

Key Features

• 3,750 VA power rating for reliable load switching
• 15 amp contact rating at 250 VAC or 28 VDC
• 4CO contact form provides four independent changeover switching poles
• Plug-in terminal type for fast socket-based installation and replacement
• 230 VAC coil voltage
• Meets CSA C22.2 No. 14, EN/IEC 61810-1, and UL 508 standards

Compatibility

Designed as an OEM-style plug-in general purpose relay for use in compatible relay sockets accepting a 4CO plug-in relay with matching footprint and terminal layout.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and local electrical codes. De-energize and lock out the control panel before inserting or removing the relay from its socket. Verify that the socket and wiring are rated for the relay coil voltage and contact load before energizing. Do not exceed the rated contact current or voltage.
