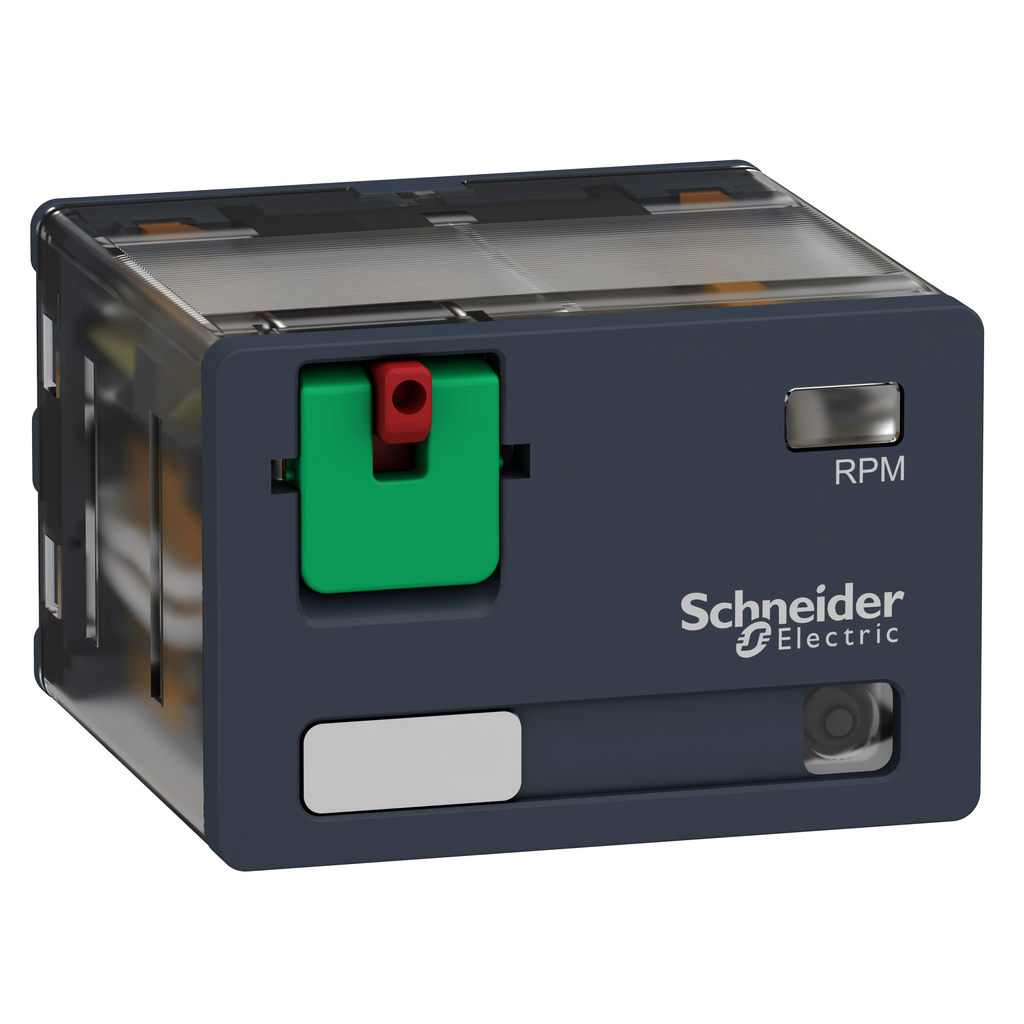

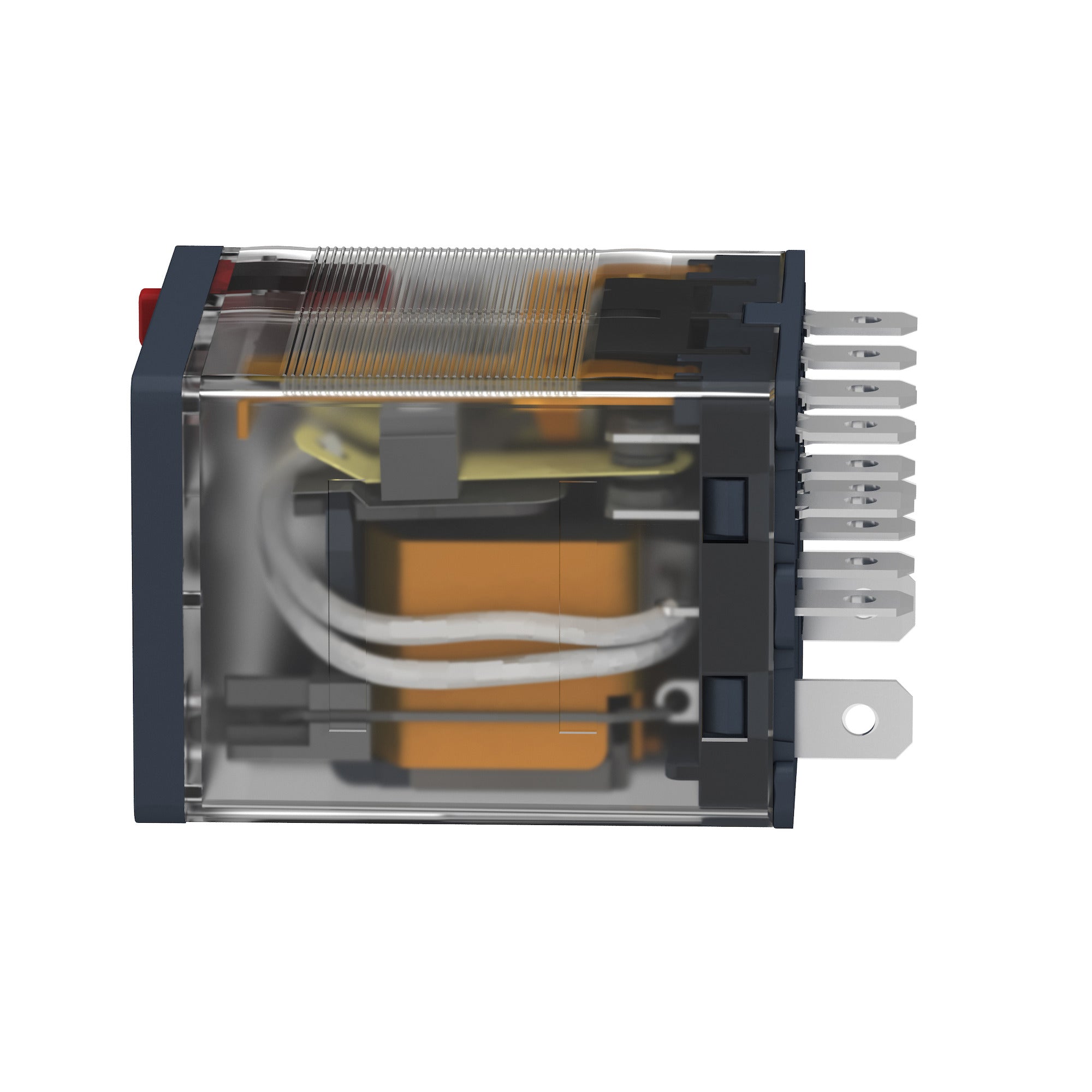

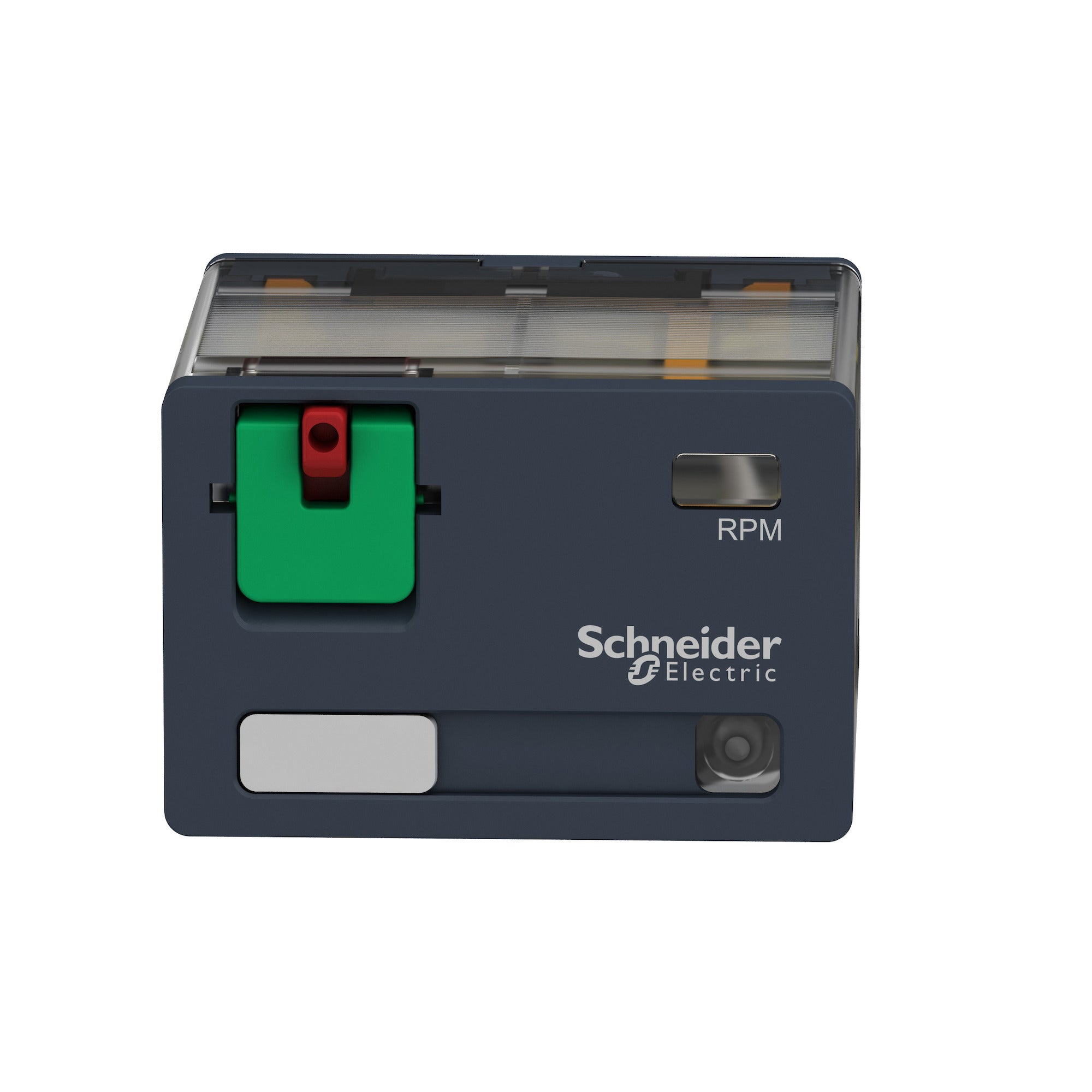

Schneider Electric RPM42F7 Square D Plug-In Relay 120 VAC 15 Amp 4NO 4NC

Product Description

The Schneider Electric RPM42F7 is a plug-in relay designed for control applications. This relay has a coil control voltage of one hundred twenty volts AC and four changeover contacts rated at fifteen amps. It is suitable for applications requiring high rated current and offers an LED status indicator that signals the current state of the relay effectively. The compact design allows for installation in varied enclosures, enhancing machine reliability.

• Coil Control Voltage: 120V AC
• Current Rating: 15A
• LED Status Indicator

Product Highlights

The RPM product is built for integration with hard-wired logic systems and industrial programmable logic controllers (PLCs). The IP40 rating provides protection against solid objects, making it ideal for a wide range of control applications.

Product Information

Standard Information

• Catalog Number: RPM42F7
• Manufacturer: Schneider Electric

Technical Specifications

• Amperage: 15 Amp AC, 15 Amp DC
• Weight: 0.16 lb
• Enclosure: IP40
• Operating Temperature: -40 to 55 degrees C
• Country of Origin: China
• Warranty Length: 18 months
• Contact Configuration: 4 C/O
• Operating Cycles: 1200, 18000
