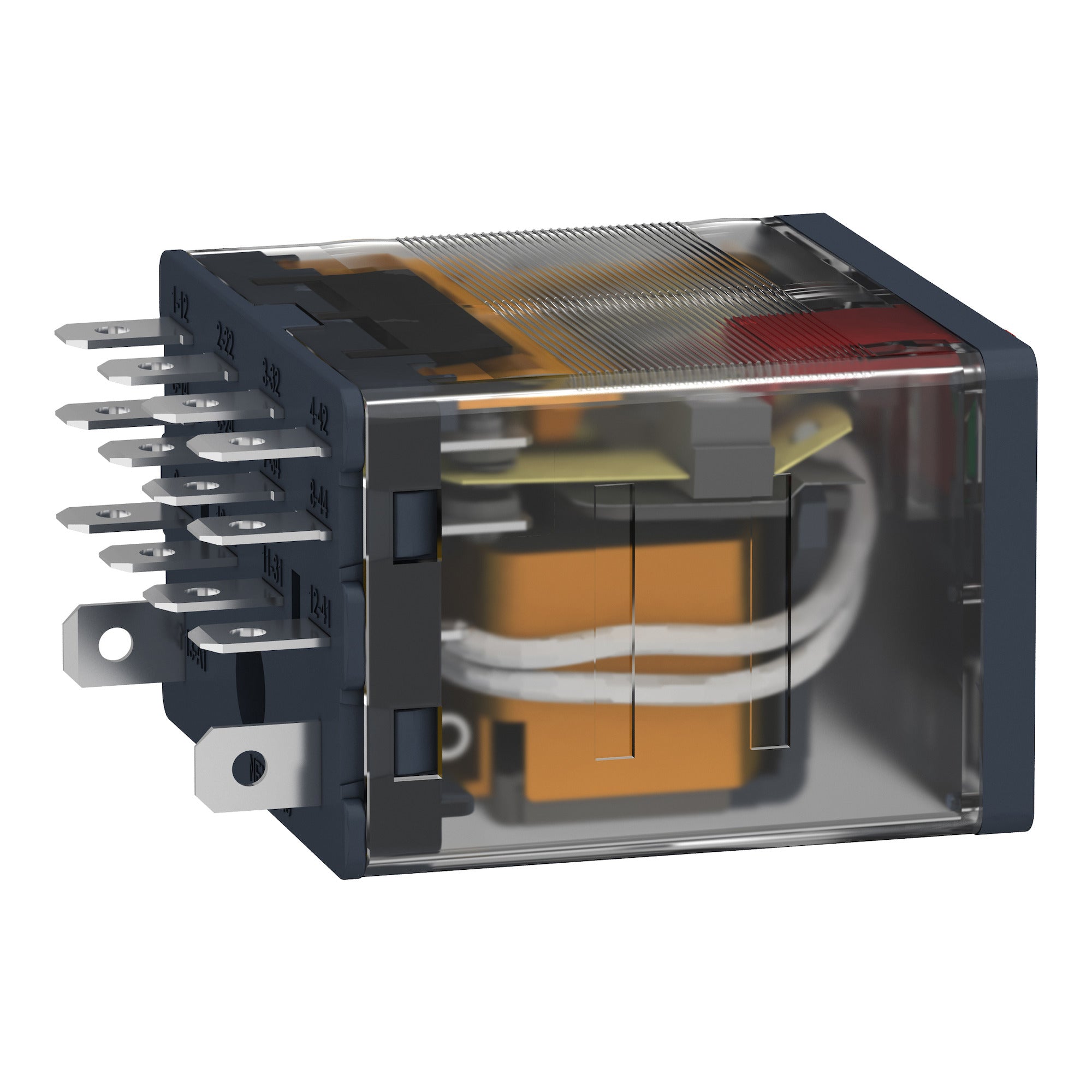

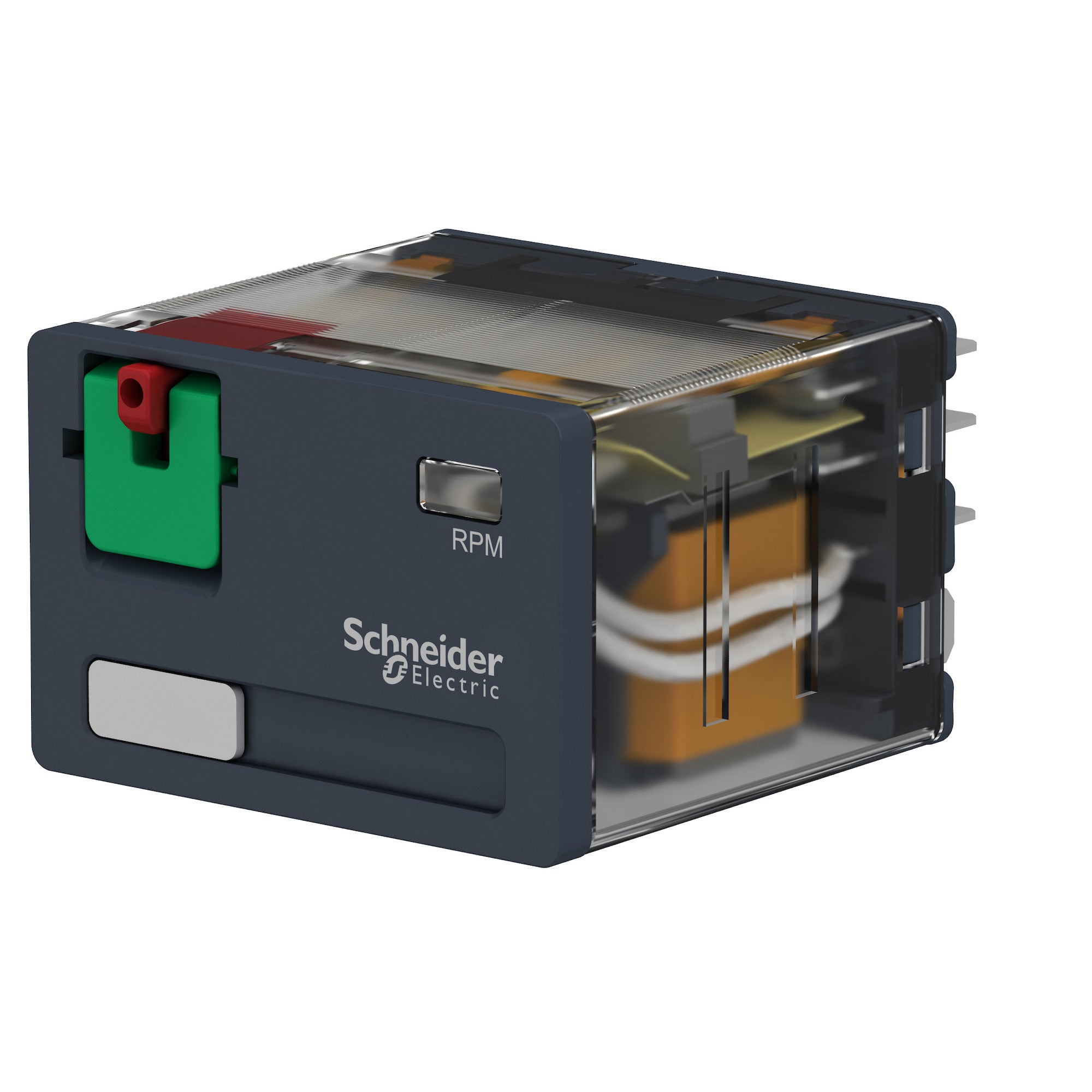

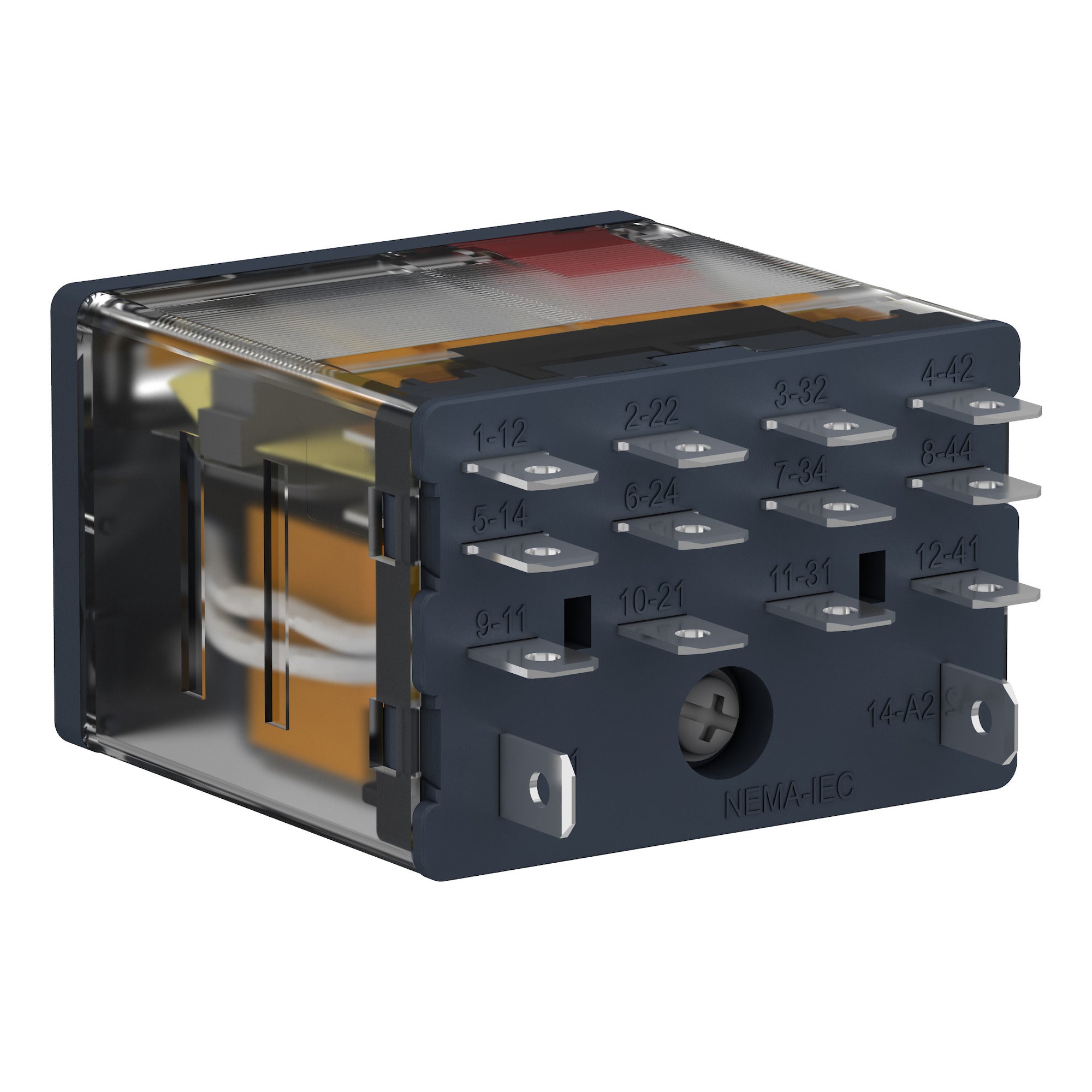

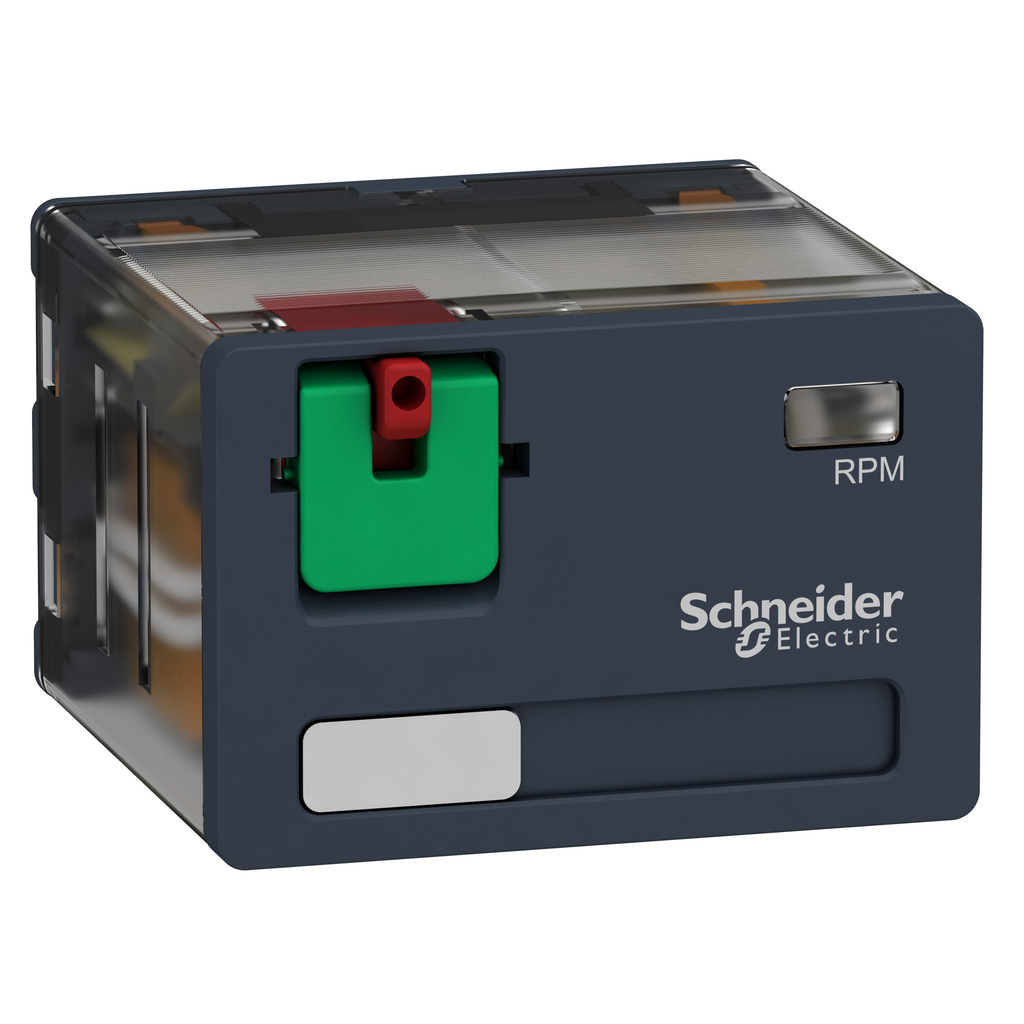

Schneider Electric RPM41F7 120 VAC 15 Amp 4NO 4NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM41F7 is a power plug-in relay designed for 120V AC applications. This relay features four changeover contacts configured as quadruple pole double throw (4PDT) with a maximum rating of fifteen Amps. The compact design allows for flexible installations in various environments.

• Coil control voltage of 120V AC
• Four changeover contacts (4PDT)
• Plug-in type for easy installation and maintenance

Product Highlights

This relay facilitates numerous switching functions while minimizing the size of enclosures. Its design makes it adaptable for use in hard-wired logic automated systems, complementing industrial programmable logic controllers (PLCs).

Product Information

Standard Information

• Catalog Number: RPM41F7
• Brand: Schneider Electric

Technical Specifications

• Manufacturer: Schneider Electric
• Amperage: 15 Amp
• Control Type: Lockable test button
• Enclosure: IP 40 conforming to IEC/EN 60529
• Storage Temperature: -40 to 85 degrees C
• Operating Temperature: -40 to 55 degrees C
• Warranty Length: 18 months
• Country of Origin: China
