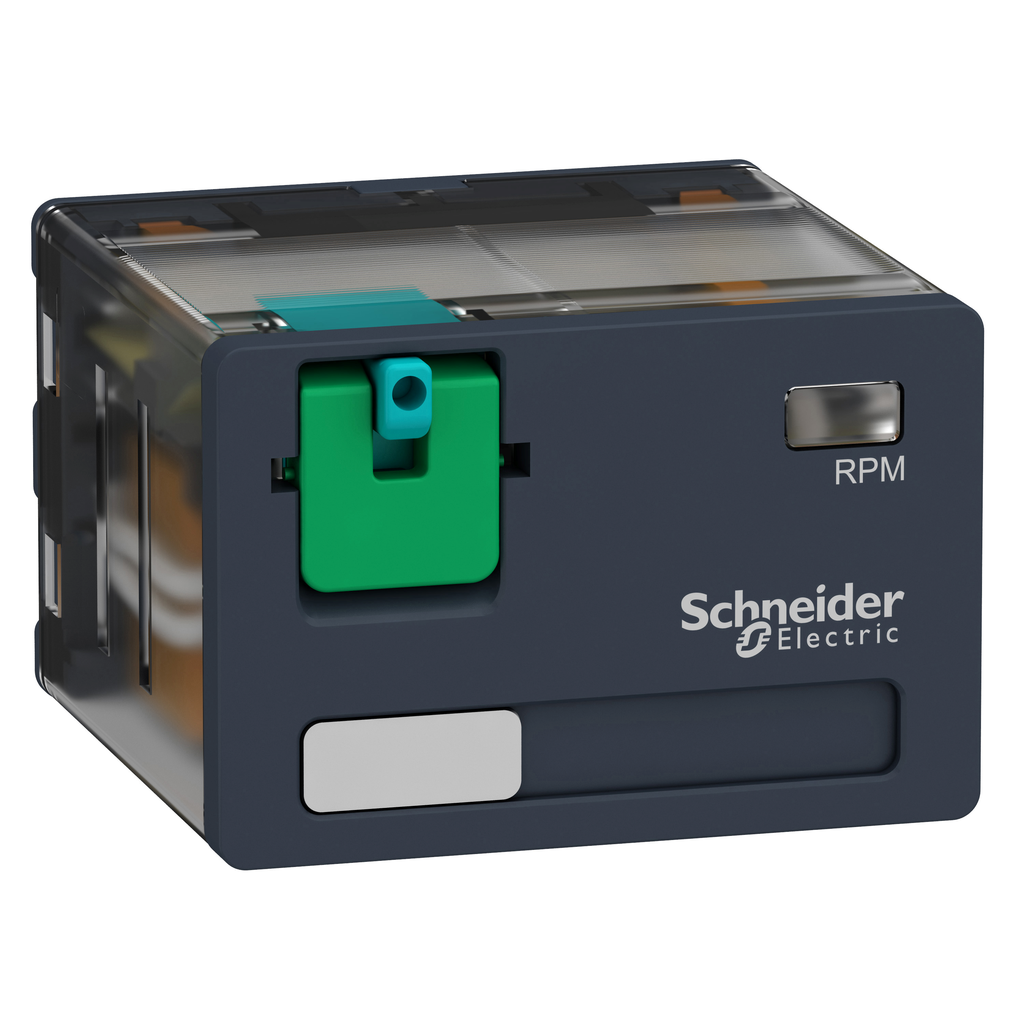

Schneider Electric RPM41BD Square D 24 VDC 15 Amp 4NO 4NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM41BD is a 24 VDC plug-in relay featuring a 15 Amp rating. This relay includes four changeover contacts (4PDT), making it suitable for various control applications. Its compact design helps optimize space within enclosures, enhancing machine reliability. The plug-in feature allows for quick installation and maintenance, making it compatible with hard-wired logic automated systems and industrial programmable logic controllers (PLCs).

• Rated for 15 Amps at 24 VDC
• Includes four changeover contacts (4NO 4NC)
• Designed for easy installation on din rails and panel mounting

Product Highlights

This relay is ideal for automation and control tasks in various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RPM41BD
• Coil Control Voltage: 24 VDC
• Amperage: 15 Amp
• Contact Configuration: 4 C/O
• Resistance: 388 Ohms
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Country of Origin: China
