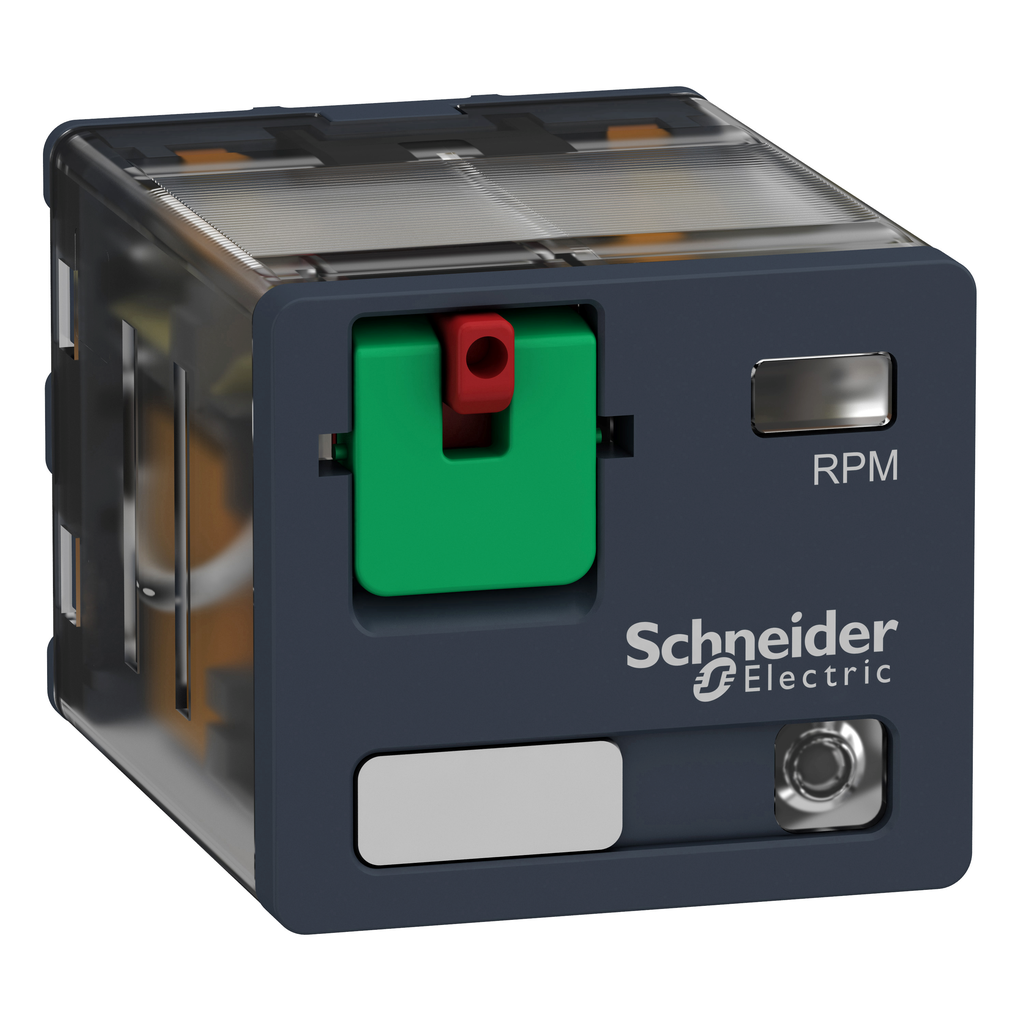

Schneider Electric RPM32F7 Square D 120 VAC 15 Amp 3NO 3NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM32F7 is a plug-in relay designed to operate with a coil control voltage of one hundred twenty volts AC. It features three changeover contacts with a three-pole double throw, and supports a current rating of fifteen amps. This relay is ideal for various automation tasks, including controlling equipment within hard-wired logic systems and enhancing the functionalities of industrial programmable logic controllers.

• Coil control voltage of 120 volts AC.
• Three changeover contacts rated at 15 amps.
• LED indicator for status display.

Product Highlights

This relay can be easily mounted on din rails or panels, making it suitable for a wide range of applications. The status LED provides clear visual feedback both day and night, enhancing usability and monitoring capabilities.

Product Information

Standard Information

• Catalog Number: RPM32F7
• Brand: Schneider Electric

Technical Specifications

• Weight: 0.12 lb
• Operating Temperature: -40 to 55 degrees C
• Amperage: 15 Amp
• Contact Configuration: 3 C/O
• Enclosure Rating: IP 40 conforming to IEC/EN 60529
• Resistance: 2770 Ohms
• Certifications: CSA, EAC, UL
• Warranty Length: 18 months
