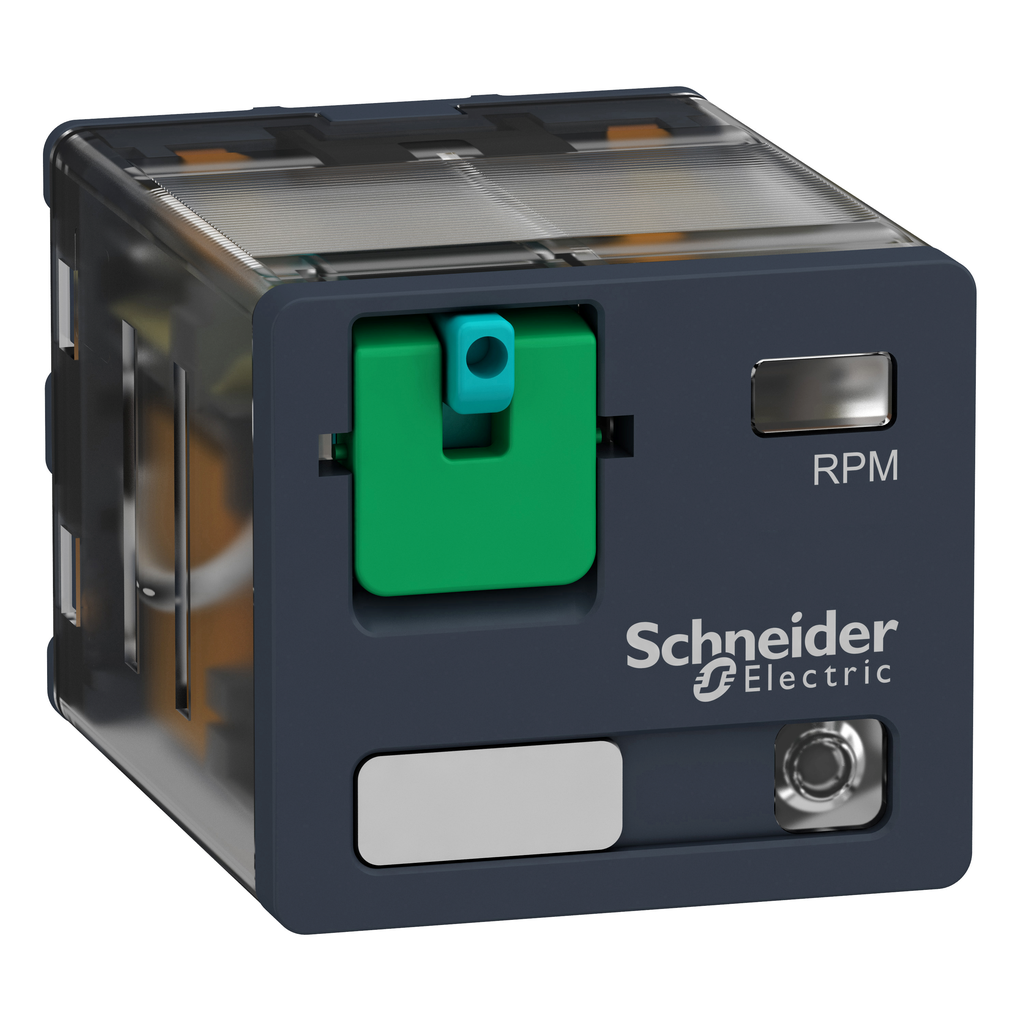

Schneider Electric RPM32BD Square D RPM32BD 24 VDC 15 Amp 3NO 3NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM32BD is a plug-in relay designed for applications requiring reliable control. This relay operates at a coil control voltage of twenty-four volts DC and features three changeover contacts, each rated for fifteen amps. It is designed for DIN rail or panel mounting, making installation straightforward in various settings.

• Coil control voltage of twenty-four volts DC
• Three poles double throw design
• LED status indicator for operational clarity

Product Highlights

The RPM32BD supports high current applications and enhances machine reliability. Its compact design allows for placement in tight spaces.

Product Information

Standard Information

• Catalog Number: RPM32BD
• Manufacturer: Schneider Electric

Technical Specifications

• Amperage: 15 Amps AC / 28 V DC
• Enclosure Rating: IP 40
• Contact Configuration: 3 Changeover Contacts
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Weight: 0.12 lb
• Warranty Length: 18 months
• Country of Origin: China
