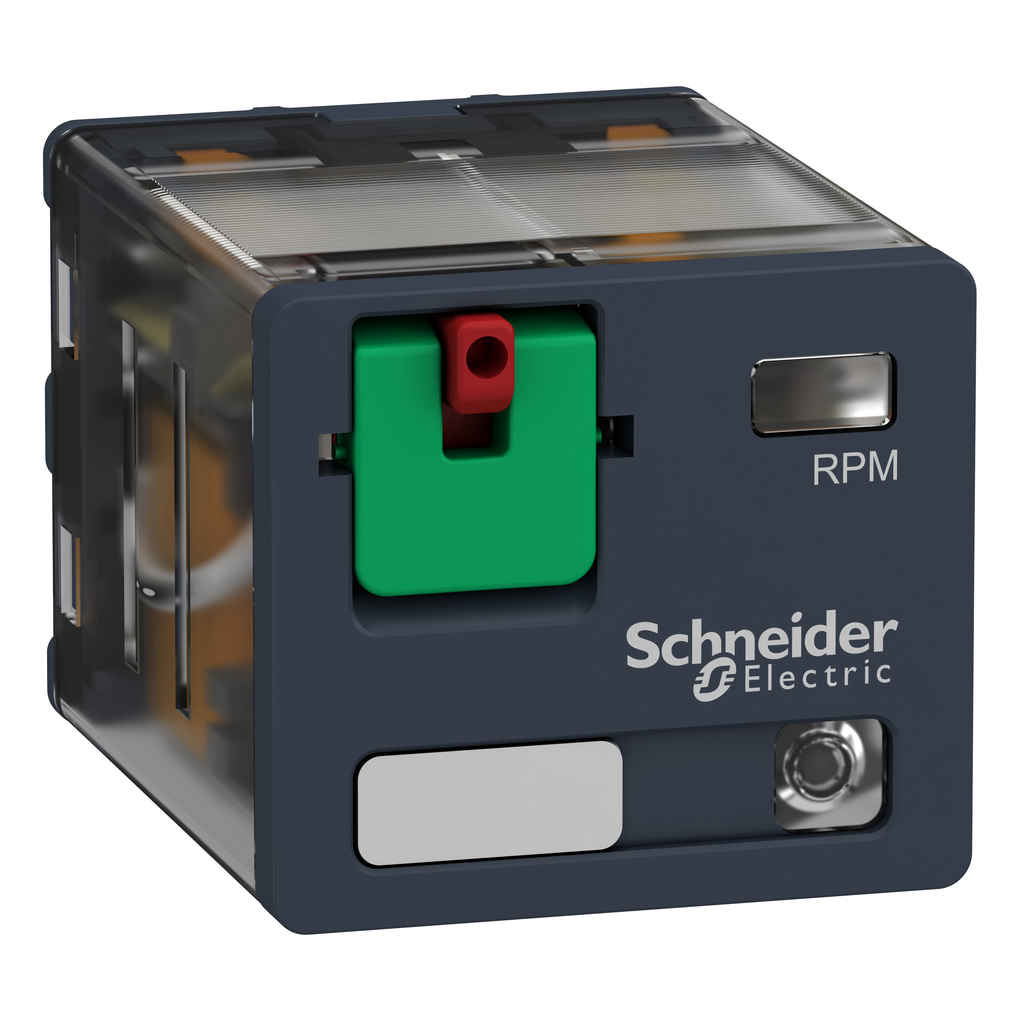

Schneider Electric RPM32B7 Square D 24 VAC 15 Amp 3NO 3NC Din Rail/Panel Mount Relay

Product Description

The Schneider Electric RPM32B7 is a plug-in relay with a coil control voltage of twenty-four volts AC. It features three changeover contacts, rated for fifteen amps, and is designed for use in various applications where reliable control is required. The relay is suitable for DIN rail or panel mounting. It comes with an LED indicator to signal the current status.

• Coil Control Voltage: 24 VAC
• Contact Rating: 15 Amps, 3NO/3NC
• IP40 Enclosure Rating

Product Highlights

This product is ideal for industrial applications, enhancing the reliability of automated systems. It integrates easily with programmable logic controllers (PLCs). Its compact design reduces enclosure size, making installation straightforward.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: RPM32B7
• Weight: 0.12 lb
• Country of Origin: China
• Control Type: Lockable test button
• Enclosure: IP 40
• Operating Temperature: -40 to 55 degrees C
• Resistance: 103 OHMS
• Warranty: 18 months
