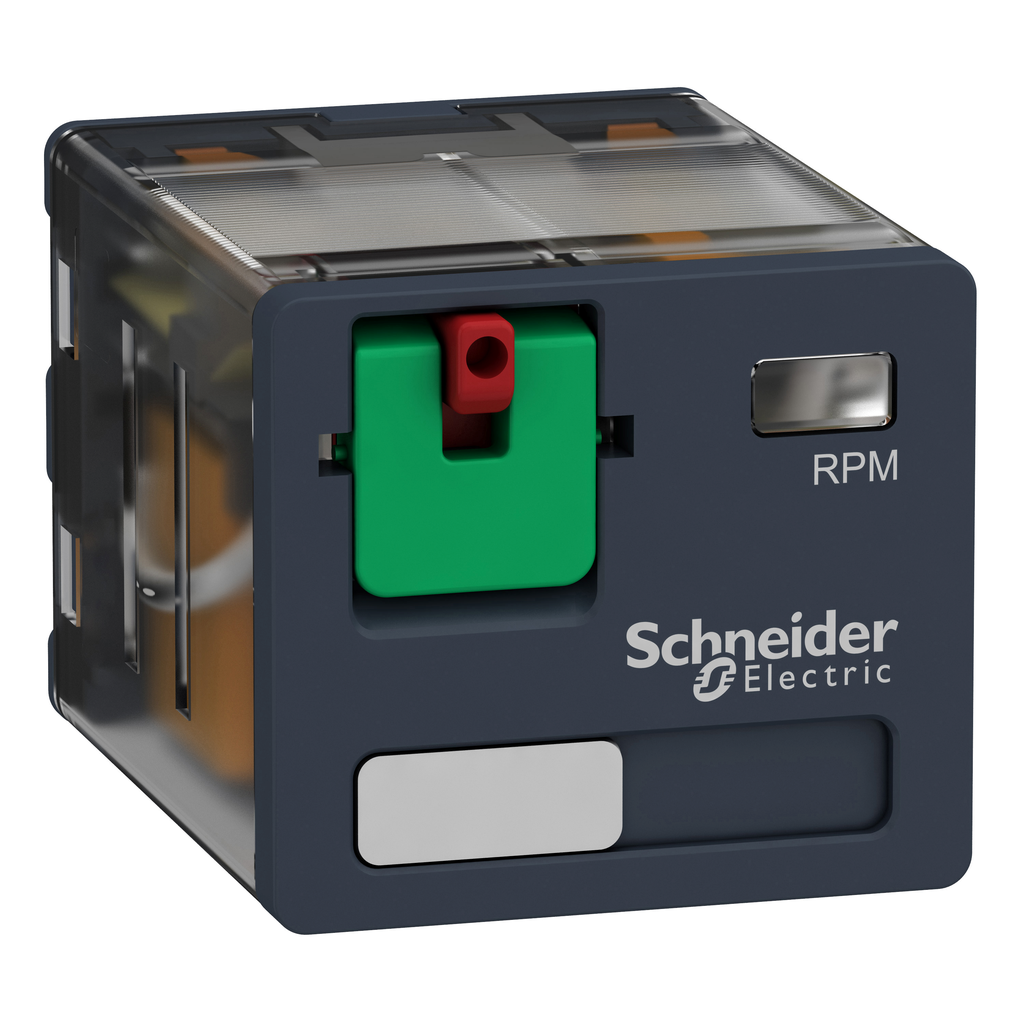

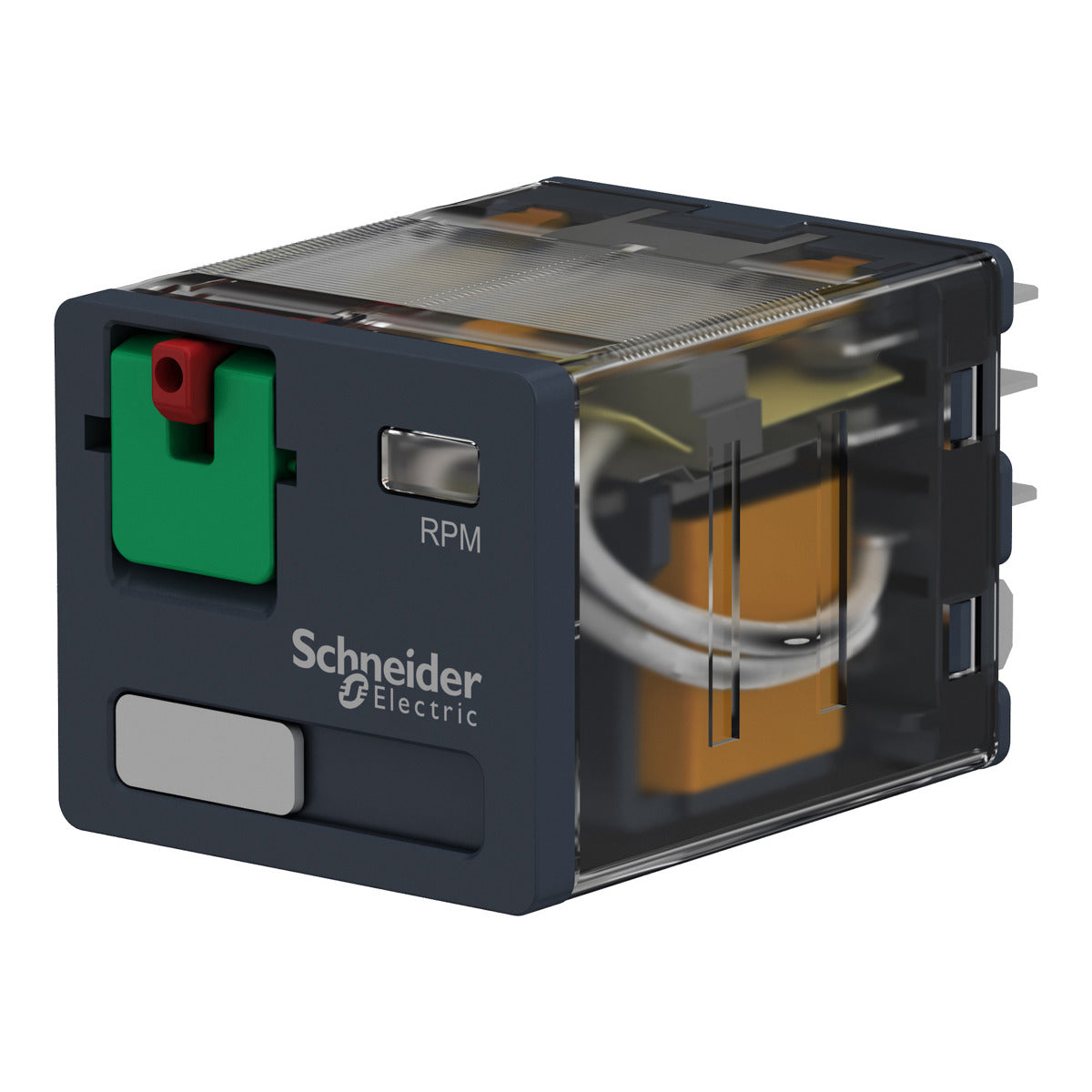

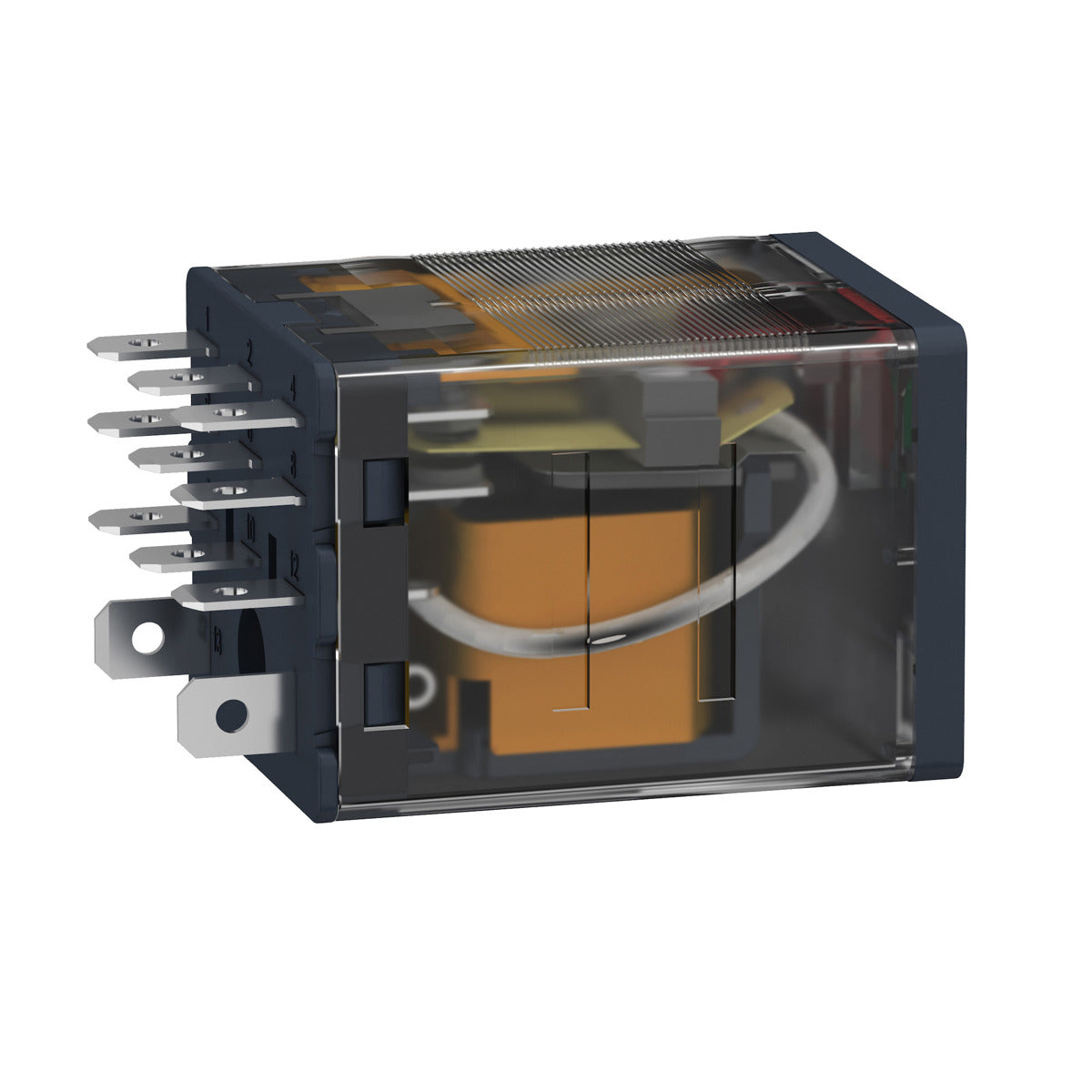

Schneider Electric RPM31F7 Square D 120 VAC 15 Amp 3NO 3NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM31F7 is a plug-in relay designed for control applications with a coil voltage of 120 volts AC. This relay features three changeover contacts configured as 3PDT, suitable for a current rating of fifteen amps. Its compact design allows for installation in tight spaces, and it is compatible with industrial programmable logic controllers.

• Coil control voltage: 120 VAC
• Contact configuration: 3 changeover contacts (3PDT)
• Ideal for use in control panels and automation systems

Product Highlights

The design reduces enclosure sizes while improving machine reliability. The plug-in feature facilitates easy installation and maintenance, making it effective for automated systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RPM31F7
• Amperage: 15 Amp
• Weight: 0.12 lb
• Control Type: Lockable test button
• Resistance: 2770 Ohms
• Contact Material: Silver Alloy
• Operating Temperature: -40 to 55 degrees C
• Warranty Length: 18 months
