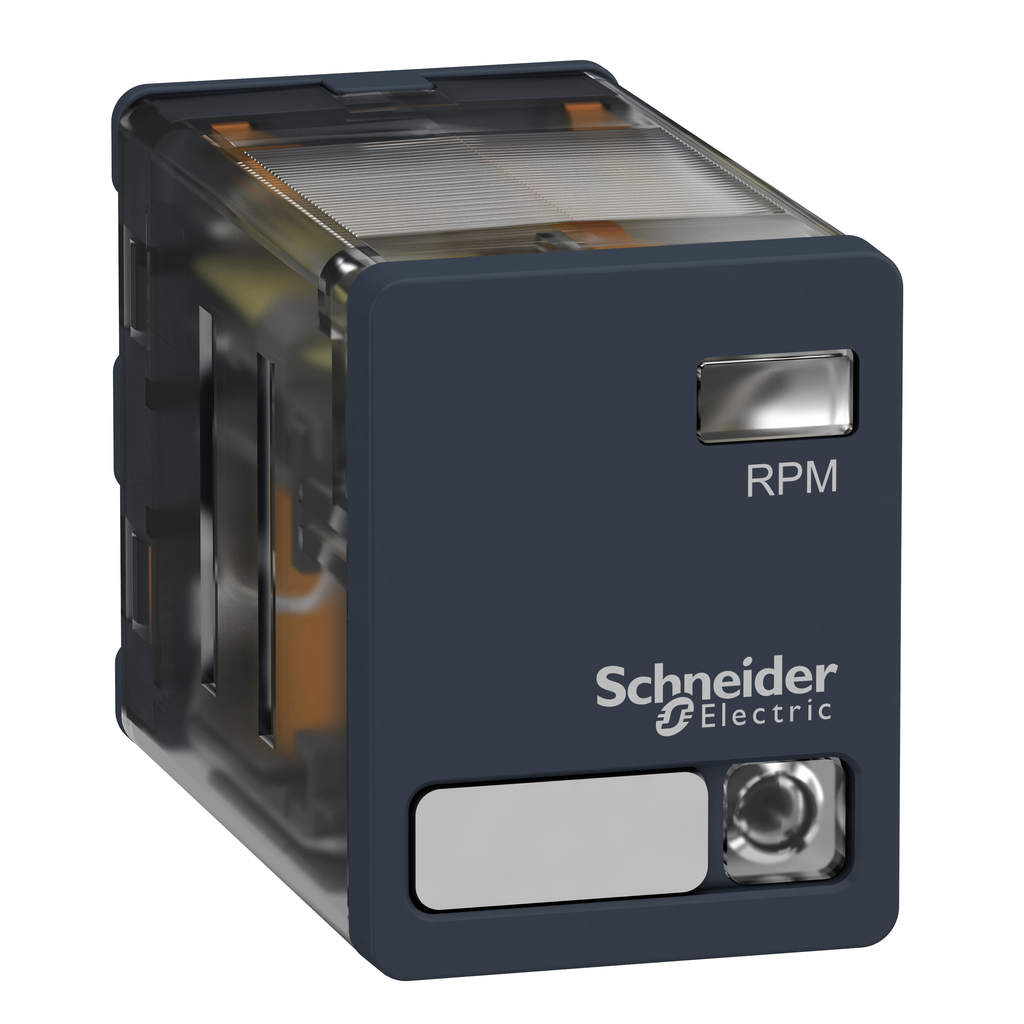

Schneider Electric RPM23F7 Square D RPM23F7 120 VAC 15 Amp 2NO 2NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM23F7 is a plug-in relay designed for industrial applications. It operates on a 120 VAC circuit and has a rated current of 15 Amperes. This relay is suitable for various uses, including control in heating, ventilation, air conditioning, packaging, and textile machines.

• Designed for easy installation on Din rails or panels
• Features 2 normally open and 2 normally closed contacts
• Suitable for various industrial applications

Product Highlights

The RPM23F7 relay helps save space and enhance reliability in enclosures by providing a reliable switching solution.

Product Information

Standard Information

• Catalog Number: RPM23F7
• Brand: Schneider Electric

Technical Specifications

• Type: Plug-in relay; Flat
• Weight: 0.08 lb
• Amperage: 15 Amp
• Enclosure: IP 40 conforming to IEC/EN 60529
• Contact Configuration: 2 C/O
• Operating Temperature: -40 to 55 degrees C
• Country of Origin: China
• Warranty Length: 18 months
