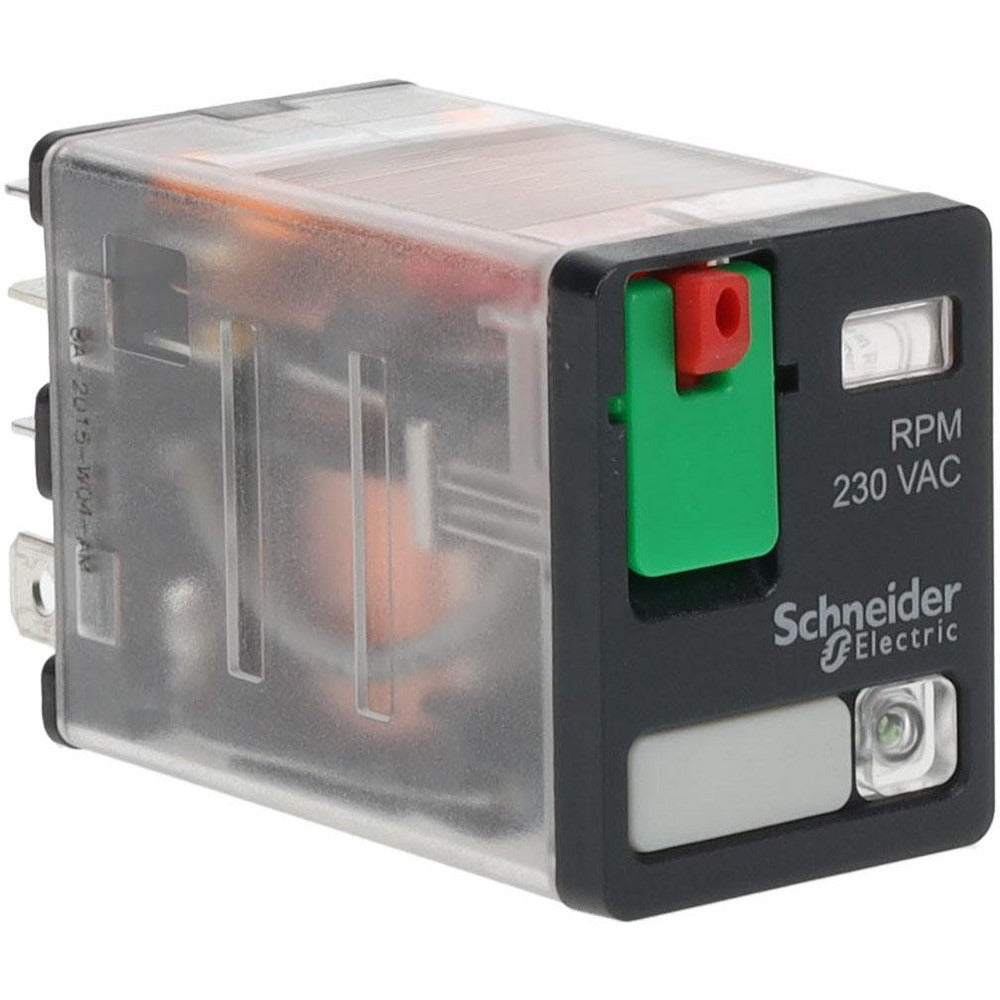

Schneider Electric RPM22P7 Plug-in Relay 3750 Va 2CO

Product Description

The SCHNEIDER ELECTRIC RPM22P7 is an electromechanical plug-in general purpose relay rated at 3,750 VA, designed for control and switching applications in industrial and commercial electrical systems. It features a 2CO (double changeover) contact form, a 15-amp contact rating at 250 VAC or 28 VDC, and a 230 VAC coil voltage. The plug-in design allows for fast field replacement without rewiring the base socket. Licensed electricians and controls technicians are the typical installers. Its compact footprint makes it suitable for control panels, machine automation circuits, and HVAC control panels where DIN-rail or socket-mounted relays are standard.

This relay fits general-purpose switching and control applications in both residential and light commercial settings. Common install scenarios include motor control circuits, lighting contactors, HVAC system interlocks, and building automation panels. The 2CO contact arrangement supports both normally-open and normally-closed switching paths in a single device, making it versatile for ladder logic and relay logic control schemes. It is appropriate for any application requiring a dependable plug-in relay with proven electromechanical operation at standard North American and European voltage levels.

Key Features

• 3,750 VA power rating for reliable general-purpose switching
• 2CO (double changeover) contact form provides both NO and NC switching in one relay
• 15-amp contact rating at 250 VAC and 28 VDC
• 230 VAC coil voltage for compatibility with standard control circuits
• Plug-in terminal design enables fast replacement without socket rewiring
• Meets CSA C22.2 No. 14, EN/IEC 61810-1, and UL 508 standards

Compatibility

Designed as a plug-in electromechanical relay for use with compatible relay sockets in general-purpose industrial and commercial control panel applications. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before inserting or removing the relay from its socket. Verify that the socket base coil voltage and contact ratings match this relay before installing. Do not exceed the rated contact current or voltage to avoid contact damage or premature failure.
