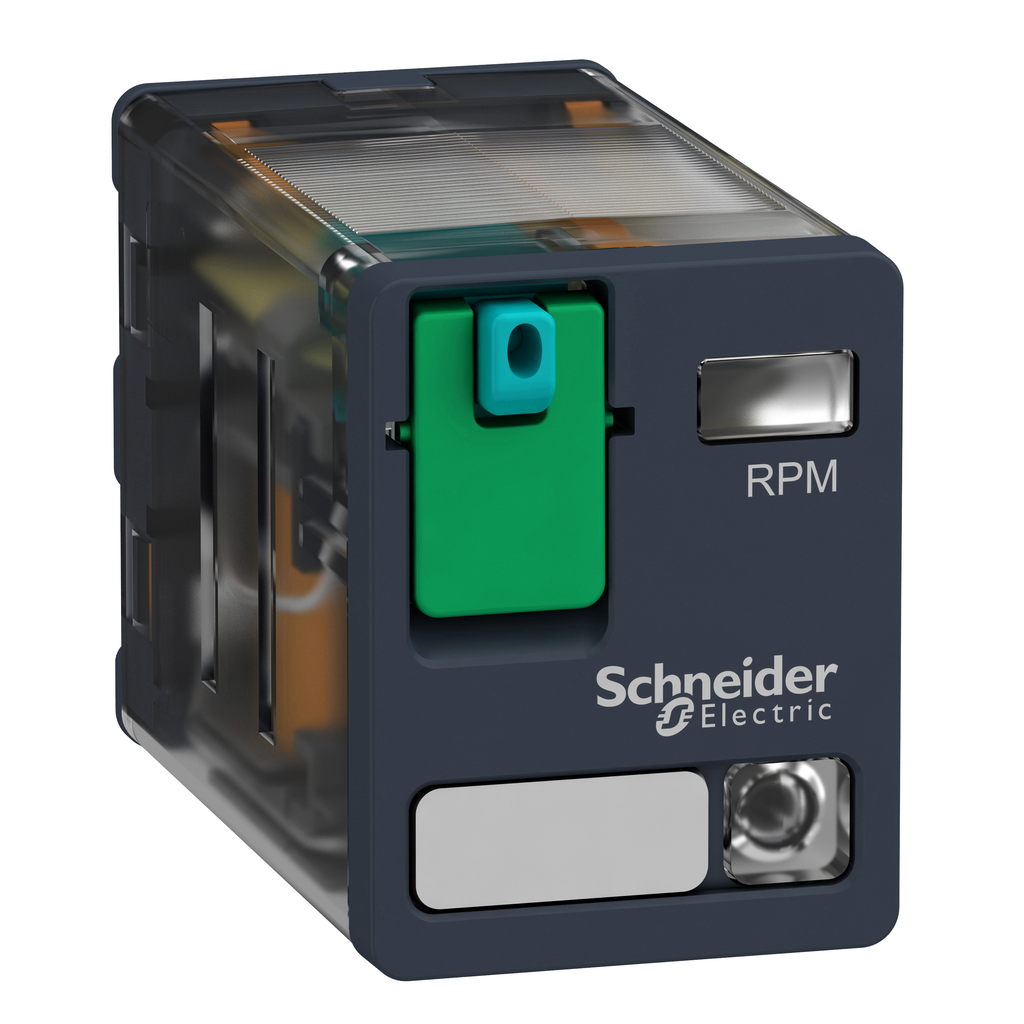

Schneider Electric RPM22JD Square D Plug-In Relay 15 Amp 250 Volt

Product Description

The Schneider Electric RPM22JD is a plug-in relay with a coil control voltage of twelve volts DC. This relay features two changeover contacts, double pole double throw, with a rating of fifteen amps. It is designed to work in various applications, including high-current environments.

• Control voltage: 12V DC
• Two changeover contacts (DPDT)
• IP40 rated for dust protection

Product Highlights

This product helps to reduce enclosure size and enhances machine reliability. The relay has an LED status indicator, providing clear signals both day and night. It is suitable for integrating with industrial programmable logic controllers (PLCs) and hard-wired automated systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RPM22JD
• Amperage Rating: 15 Amp
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Enclosure Rating: IP 40
• Contact Configuration: 2 C/O
• Resistance: 160 Ohms
• Control Type: Lockable test button
• Certifications: CSA, UL, EAC
• Warranty Length: 18 months
• Country of Origin: China
