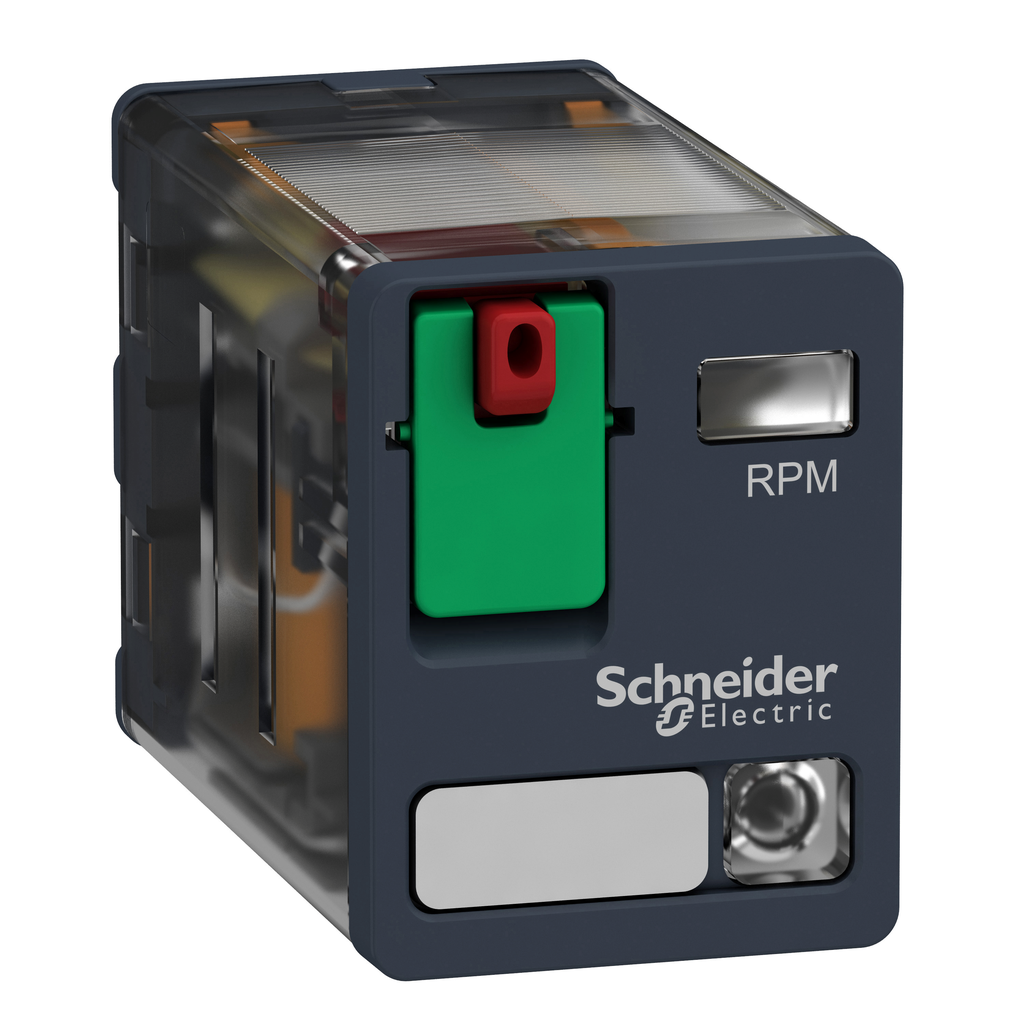

Schneider Electric RPM22B7 24 VAC 15 Amp 2NO 2NC Din Rail/Panel Mount Plug-In Relay

Product Description

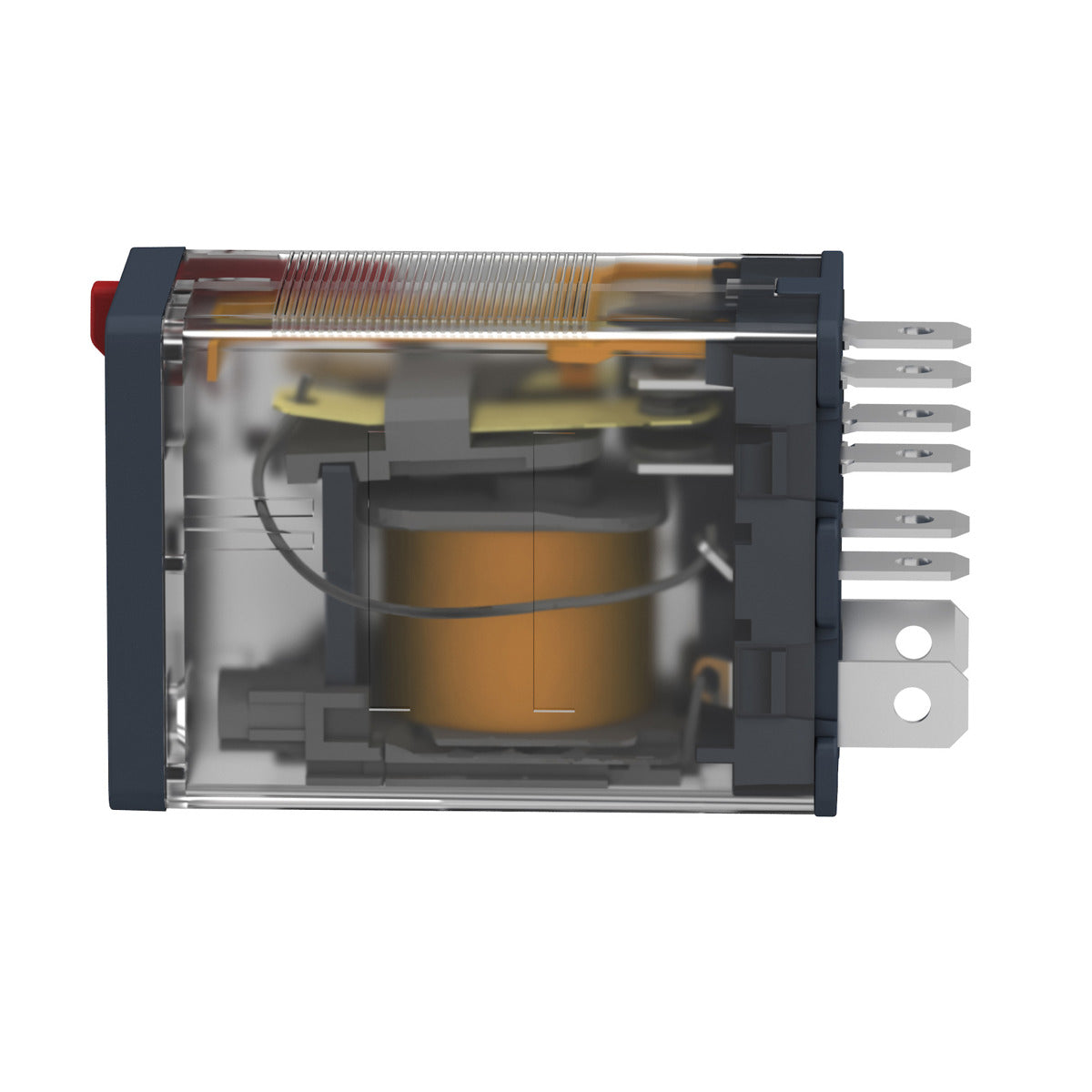

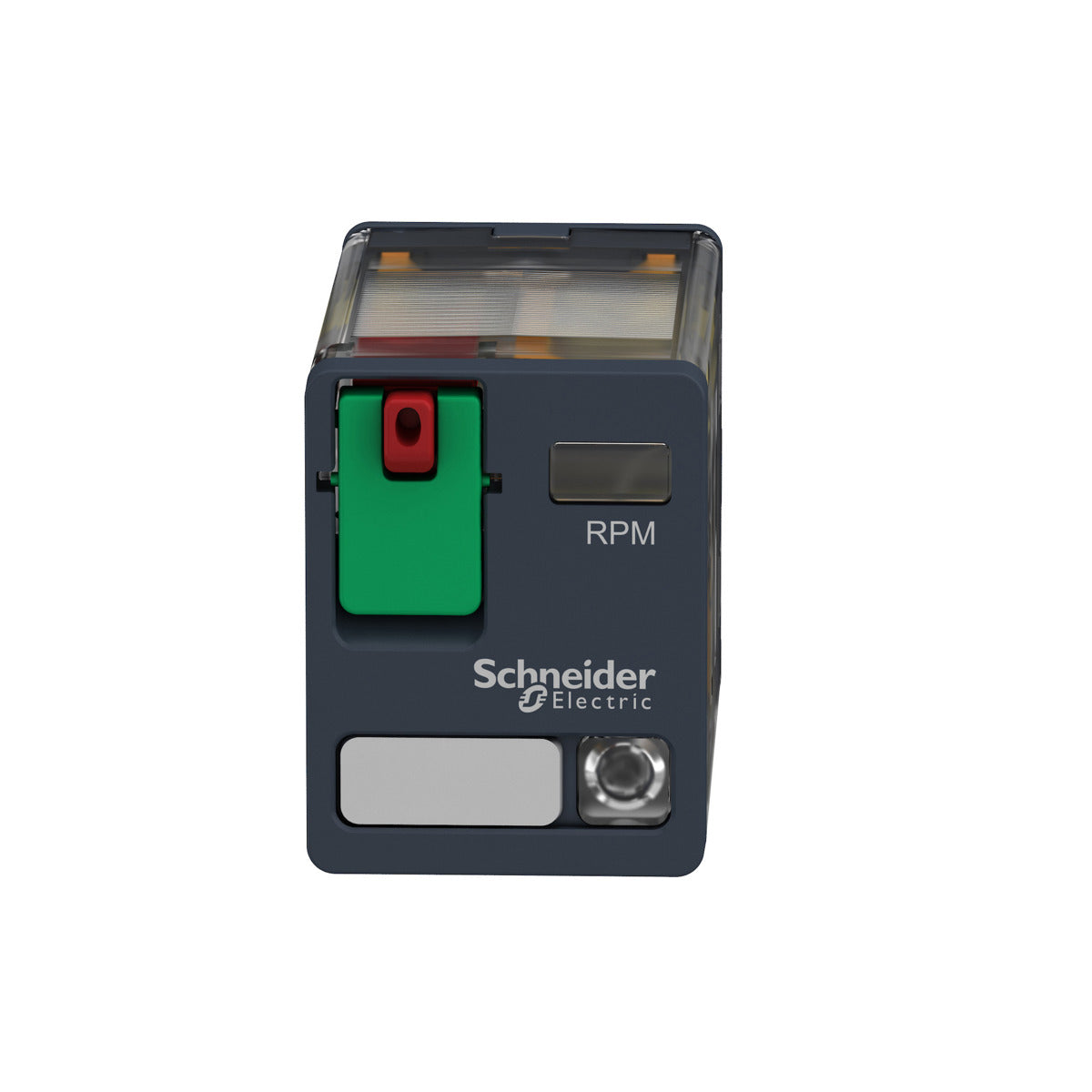

Schneider Electric RPM22B7 is a plug-in relay designed for industrial automation. This relay operates at a control voltage of twenty-four volts alternating current with a maximum rating of fifteen amps. It features two normally open and normally closed contacts, which allows for versatile control options. The LED indicator shows relay status, enhancing operational visibility.

• Coil voltage of twenty-four volts AC.
• Fifteen amp relay rating.
• Built for panel and din rail mounting.

Product Highlights

This relay is crucial for applications in motor control, lighting systems, and various automation tasks. Its compact design is suitable for installations in confined spaces. The standard IP40 rating ensures the product is protected from solid objects larger than one millimeter.

Product Information

Standard Information

• Manufacturer: Schneider Electric (Square D)
• Catalog Number: RPM22B7

Technical Specifications

• Contact Configuration: 2 Change Over (2CO)
• Enclosure rating: IP40
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Weight: 0.08 lb
• Resistance: 180 ohms
• Certification: CSA, UL, IEC
• Warranty Length: 18 months
