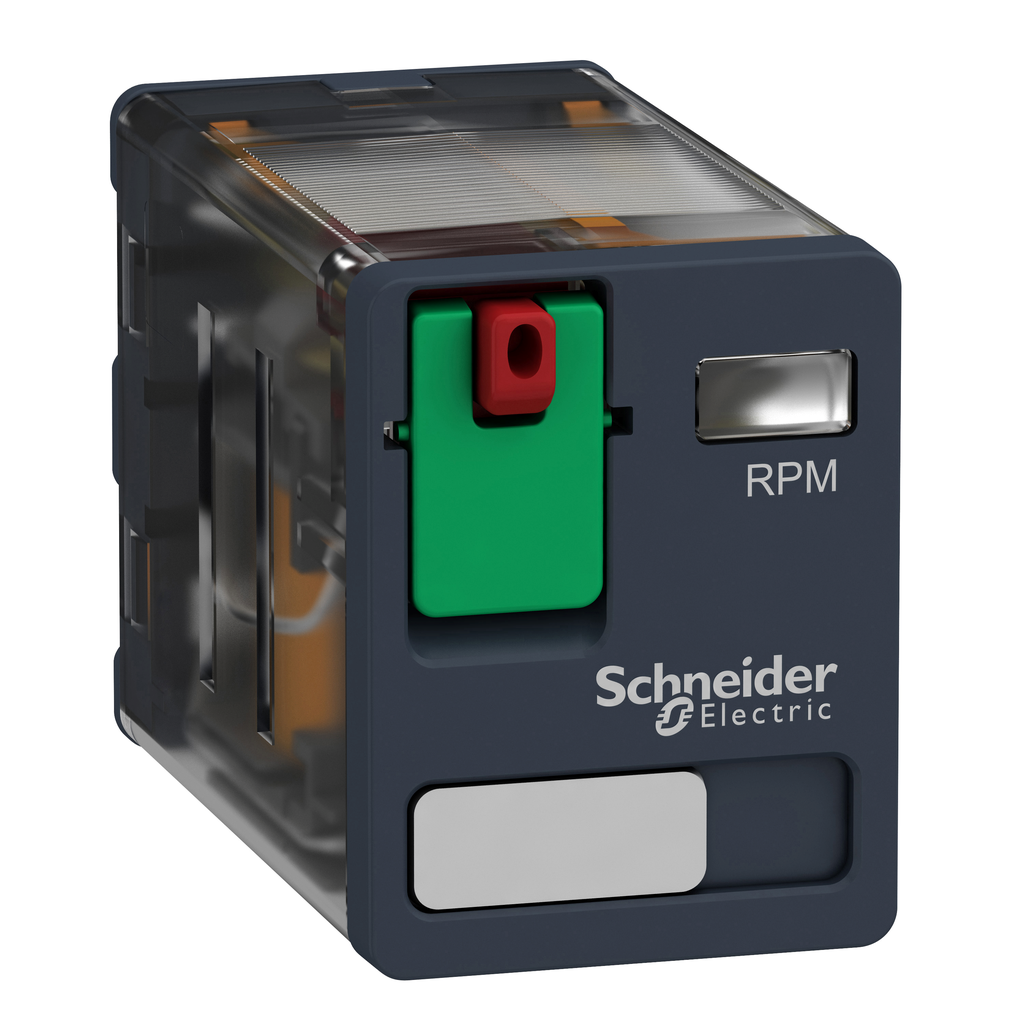

Schneider Electric RPM21F7 120 VAC 15 Amp 2NO 2NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM21F7 relay operates at a coil control voltage of 120 volts AC. It features two normally open and two normally closed contacts rated at 15 amps. This relay is designed for flexibility and reliability in control and automation tasks. It is ideal for applications requiring a compact design and ease of installation.

• Coil control voltage of 120 Volts AC
• 15 Amp contact rating with two normally open and two normally closed contacts
• Mountable on DIN rail or panel for versatile installation

Product Highlights

This plug-in relay simplifies setup and maintenance, making it suitable for hardwired logic automated systems and industrial programmable logic controllers (PLCs).

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Plug-In Relay

Technical Specifications

• Amperage: 15 Amps
• Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
• Enclosure: IP 40
• Contact Material: Silver Alloy
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Operating Cycles: 1200 to 18000
• Warranty Length: 18 months
