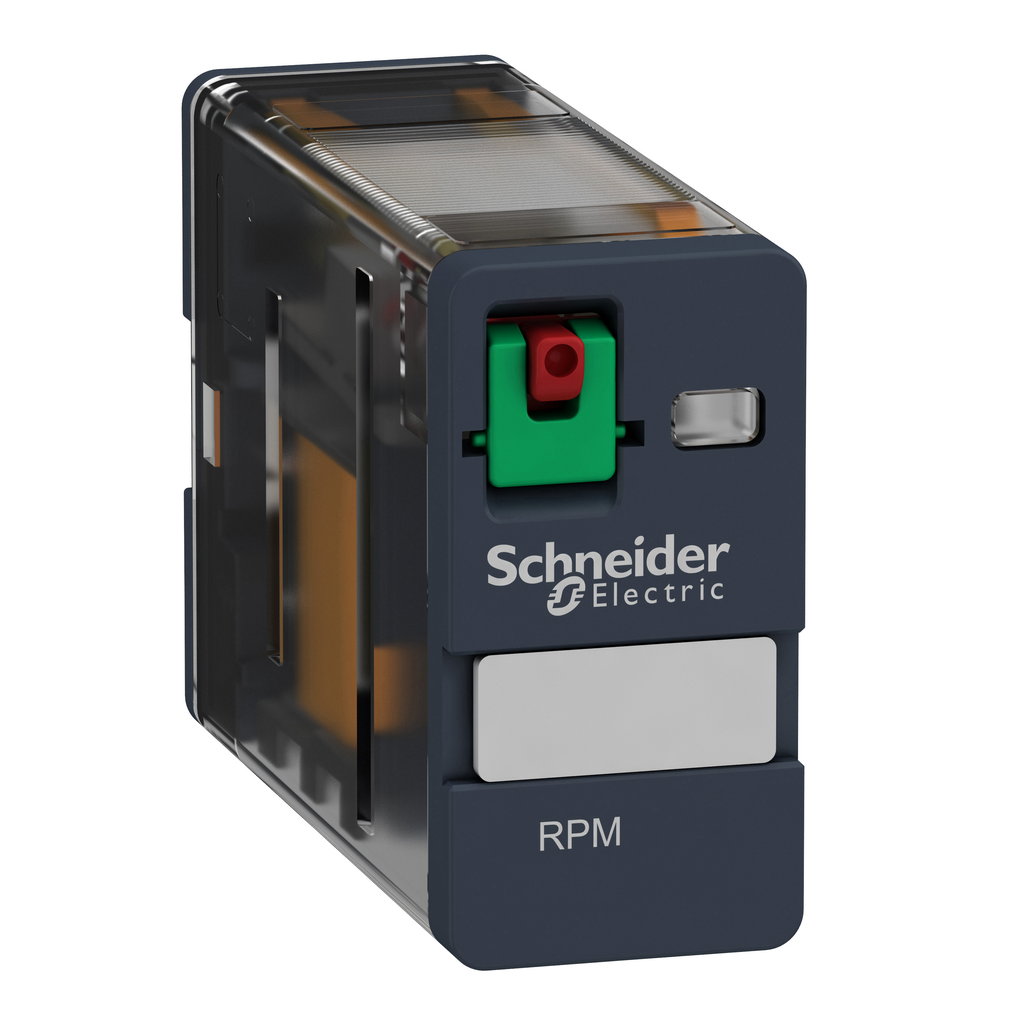

Schneider Electric RPM11F7 120 VAC 15 Amp 1NO 1NC Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPM11F7 is a plug-in relay designed for use in various control applications. It operates at a coil control voltage of 120 volts AC and features one changeover contact (SPDT) rated for 15 amps. Its compact design facilitates the reduction of enclosure sizes while increasing system reliability. This relay is suitable for use in numerous applications, including those that require integration with industrial programmable logic controllers (PLCs).

• Coil Voltage: 120V AC
• Contact Configuration: 1NO 1NC
• Amperage Rating: 15A

Product Highlights

The RPM11F7 is easy to install and maintain, making it ideal for control and automation tasks. This relay is essential for enhancing the performance of automated systems.

Product Information

Standard Information

• Catalog Number: RPM11F7
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Plug-in relay; Flat
• Amperage: 15 Amps
• Standard Compliance: CSA C22.2 No 14, IEC 61810-1, UL 508
• Enclosure Rating: IP 40
• Weight: 0.06 lb
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Contact Material: Silver Alloy
