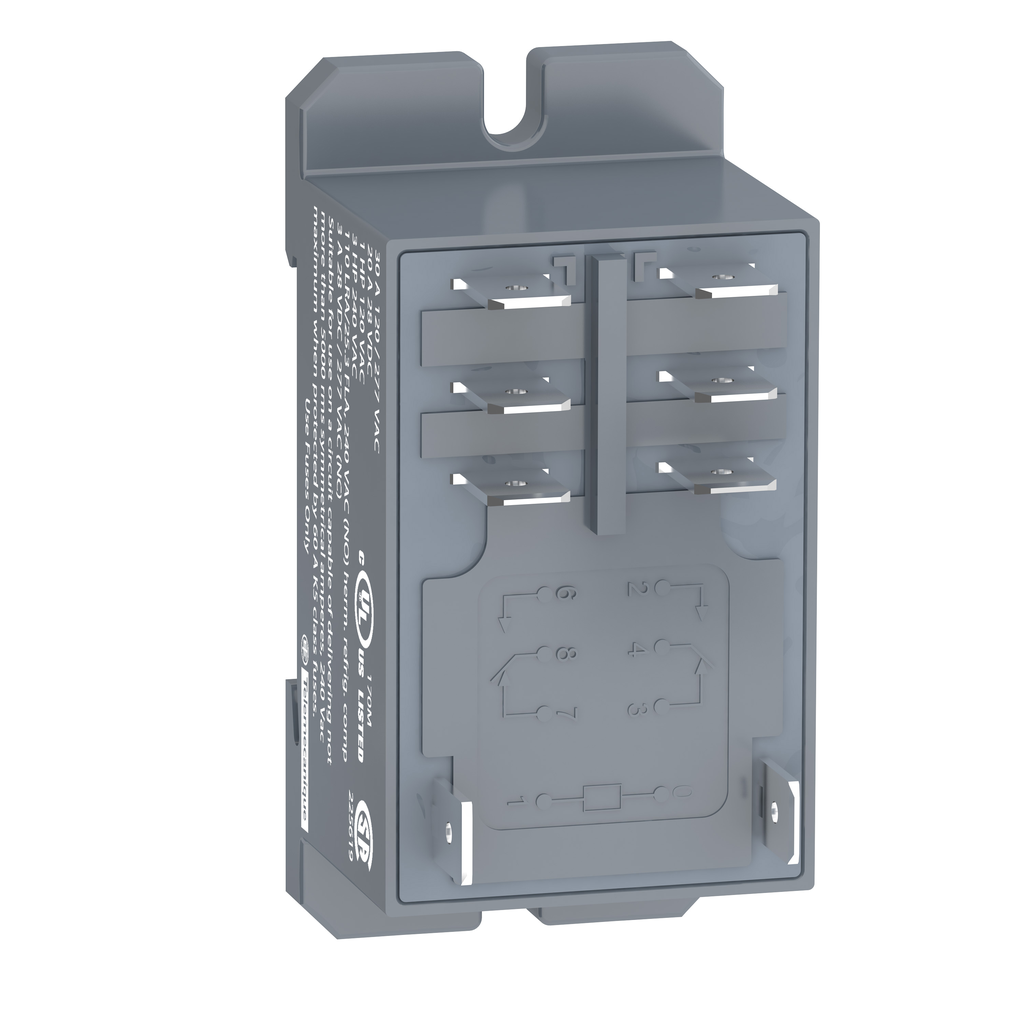

Schneider Electric RPF2BF7 Power Relay 120 VAC 30 Amp 2NO 2NC

Product Description

The Schneider Electric RPF2BF7 power relay is designed for panel mounting with fast-on terminals. It operates at a coil control voltage of 120 volts AC and features two normally open contacts rated for thirty amps. This relay supports efficient enclosure space reduction and enhances machine reliability. It is suitable for integration into hard-wired logic and complements industrial programmable logic controllers (PLCs) effectively.

• Rated for 30A at 120VAC.
• Two normally open contacts.
• Versatile mounting options for various applications.

Product Highlights

Ideal for various control and automation tasks, the RPF2BF7 relay is built for reliability and compact installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: RPF2BF7
• Type: Plug-in relay
• Control Voltage: 120V AC
• Contact Configuration: 2 normally open
• Amperage Rating: 30A
• Dimensions: Width - 33.7 mm, Height - 68.5 mm
• Weight: 0.18 lb
• Operating Temperature: -40 to 55 degrees Celsius
• Country of Origin: China
