Schneider Electric RPF2BBD Plug-in Relay 7500 Va 2CO

Product Description

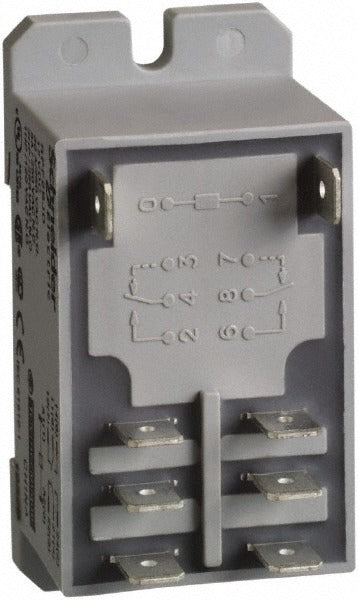

The SCHNEIDER ELECTRIC RPF2BBD is an electromechanical plug-in general purpose relay rated at 7,500 VA, designed for industrial and commercial control panel applications. It features a 2CO (double changeover) contact form and operates on a 24 VDC coil. Contact ratings include 20 amps at 28 VDC, 25 amps at 28 VDC, 30 amps at 250 VAC and 277 VAC, and 3 amps at 250/277 VAC. The plug-in terminal design allows for fast, tool-free socket mounting in relay bases, making replacement straightforward during panel servicing. Licensed electricians and controls technicians are the typical installers for this component.

The RPF2BBD is suited for residential, commercial, and light industrial control circuits where a compact, socketed relay is required. Common applications include motor control panels, HVAC control boards, building automation systems, and general switching duty in 24 VDC low-voltage control circuits. Its dual changeover contacts allow it to handle both normally open and normally closed load paths simultaneously, giving panel designers flexibility in circuit configuration.

Key Features

• 7,500 VA power rating supports a wide range of switching loads
• 2CO (double changeover) contact form provides both NO and NC switching paths
• 24 VDC coil voltage compatible with standard low-voltage control circuits
• Plug-in terminal type enables tool-free installation and fast field replacement
• Contact ratings up to 30 amps at 250 VAC and 277 VAC for higher-current AC loads
• Meets CSA C22.2 No. 14, EN/IEC 61810-1, and UL 508 standards

Compatibility

Designed as a plug-in general purpose relay for use in compatible relay sockets; consult the manufacturer documentation to confirm correct socket and base compatibility before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before removing or inserting the relay into its socket. Verify coil voltage and contact load ratings match circuit requirements prior to installation. Do not exceed published contact current ratings for the load type being switched.
