Schneider Electric RPF2BB7 General Purpose Relay 7500 Va

Product Description

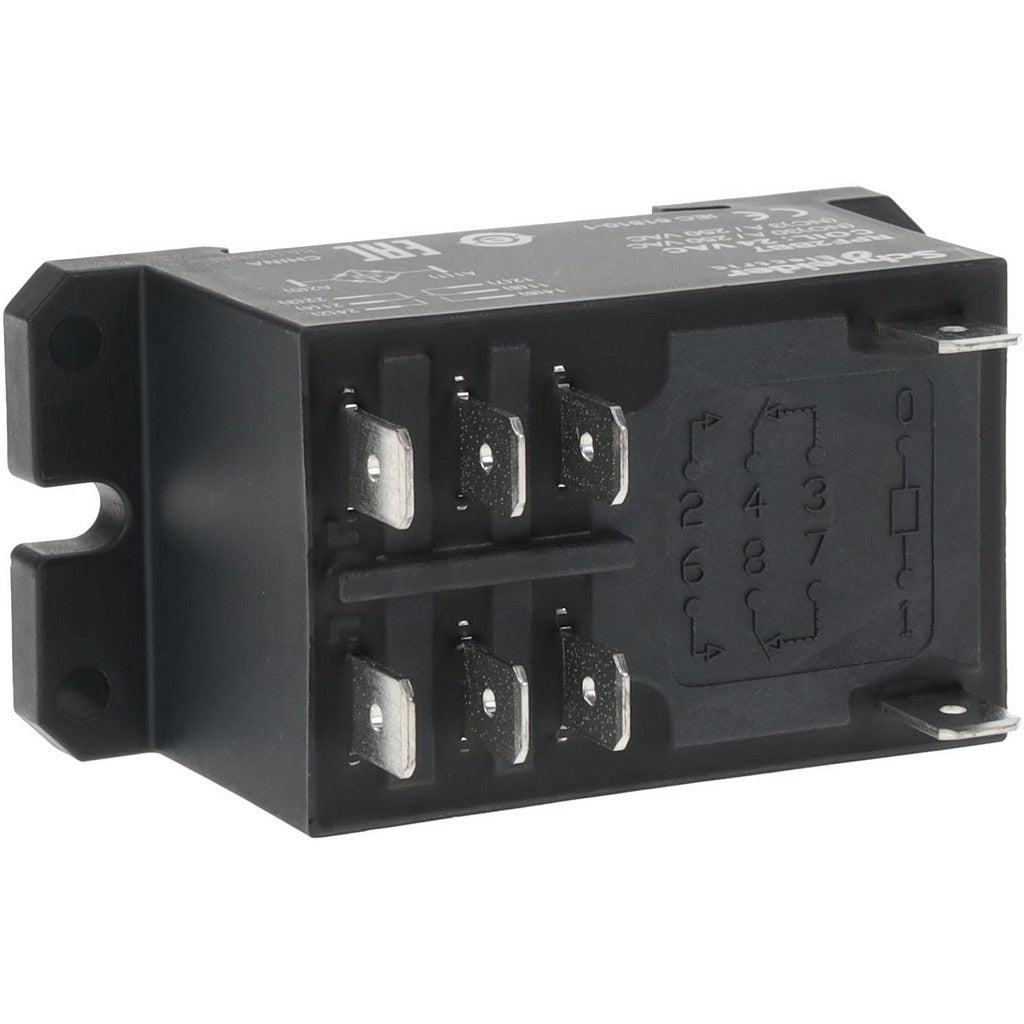

The SCHNEIDER ELECTRIC RPF2BB7 is an electromechanical plug-in general purpose relay rated at 7,500 VA, designed for control circuit switching in industrial and commercial electrical systems. It features a 2CO (double pole double throw) contact form and operates on a 24 VAC coil voltage. Contact ratings include 20 amps at 28 VDC, 25 amps at 28 VDC, 30 amps at 250 VAC and 277 VAC, and 3 amps at 250/277 VAC. The plug-in design allows for straightforward socket mounting without hardwiring directly to the relay body. Licensed electricians and control system technicians are the primary installers for this type of component.

The RPF2BB7 is suited for residential, commercial, and light industrial control panel applications where a reliable general purpose relay is required. Typical use cases include motor control circuits, HVAC control boards, lighting control panels, and automation systems that require a compact plug-in switching element. The relay fits standard relay sockets compatible with its pin configuration, making it a practical replacement or new-installation component in panel builds and retrofit projects.

Key Features

• 7,500 VA power rating for robust switching capacity
• 2CO contact form provides two independent switching circuits in one body
• 24 VAC coil voltage compatible with common low-voltage control circuits
• Plug-in terminal type for tool-free relay removal and replacement
• 30-amp contact rating at 250 VAC and 277 VAC for high-load applications
• Meets CSA C22.2 No. 14, EN/IEC 61810-1, and UL 508 standards

Compatibility

Designed as an OEM-style plug-in general purpose relay for use in standard relay socket bases compatible with the RPF2BB7 pin configuration in commercial and industrial control panel applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before removing or inserting the relay. Verify that the socket base pin configuration and voltage rating match the RPF2BB7 before installation. Do not exceed the published contact current and voltage ratings for the intended circuit.
