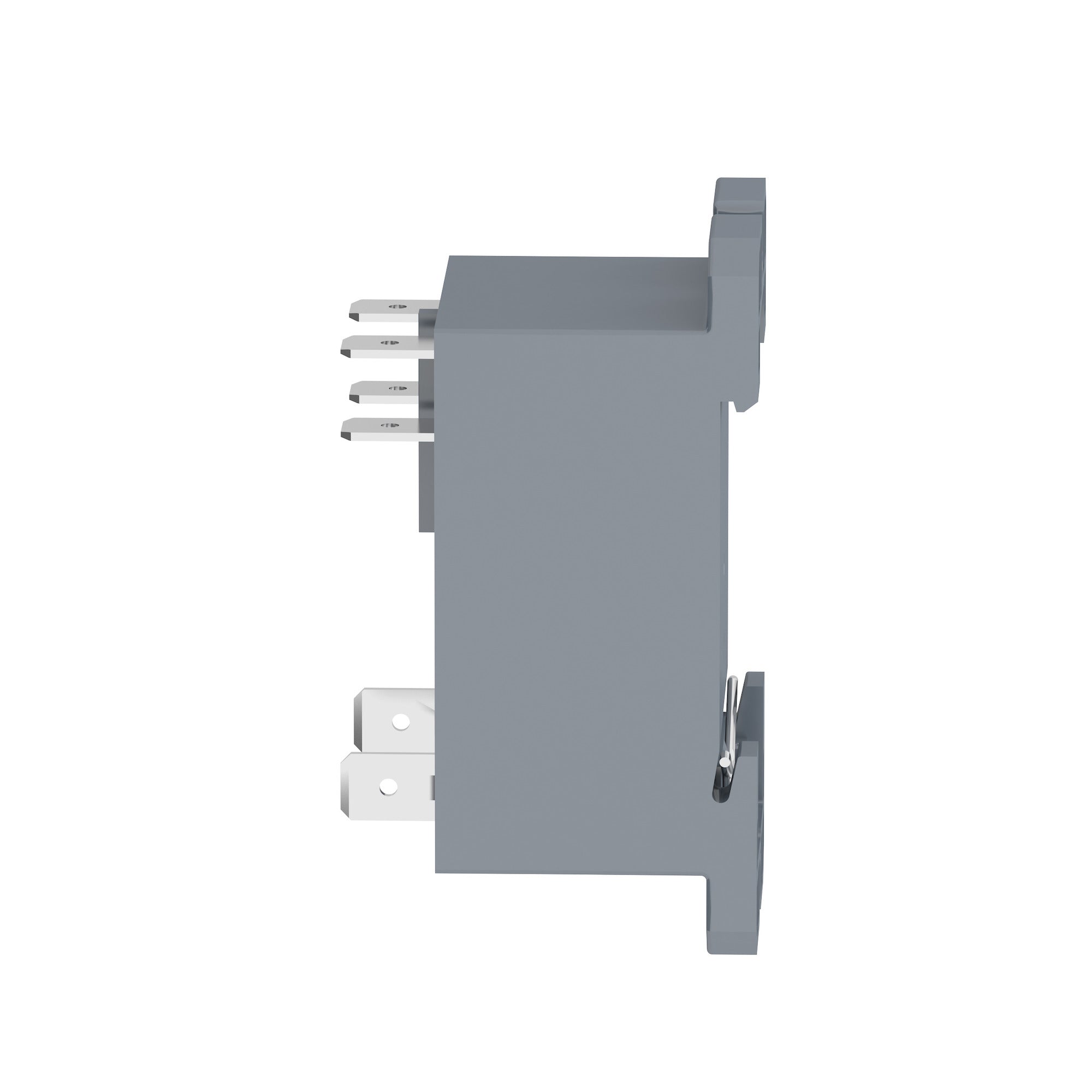

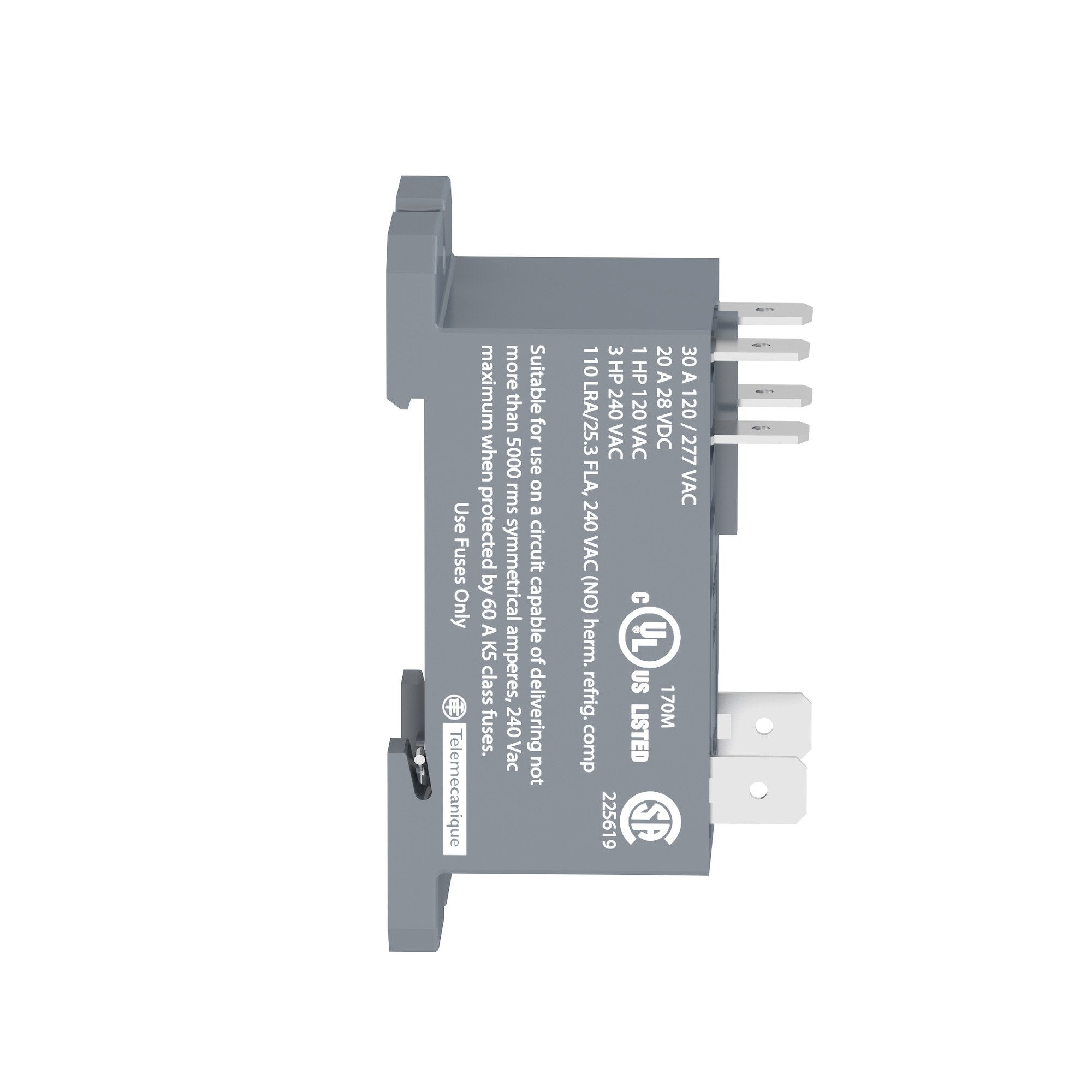

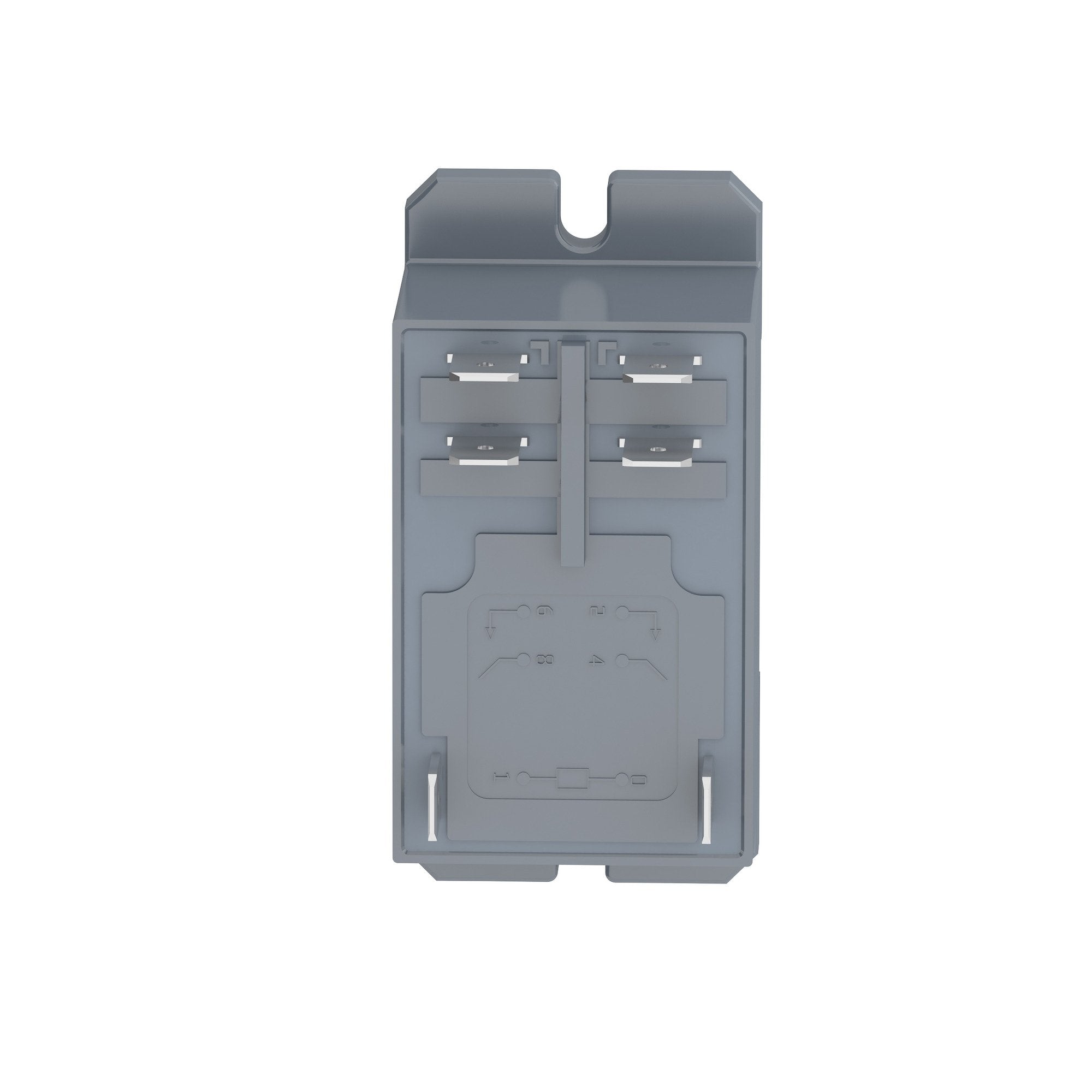

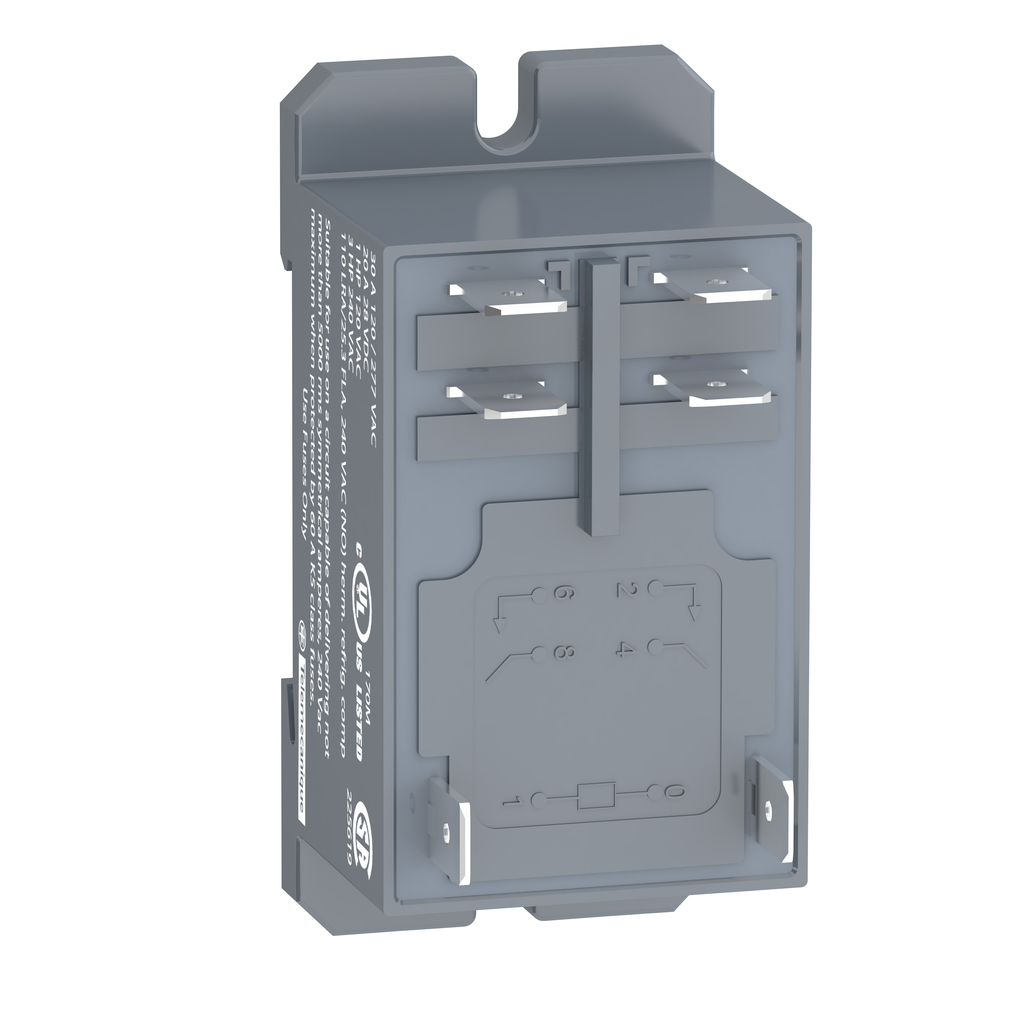

Schneider Electric RPF2AP7 Square D RPF2AP7 230 VAC 30 Amp 2NO Din Rail/Panel Mount Plug-In Relay

Product Description

Schneider Electric RPF2AP7 is a 230 VAC, 30 Amp plug-in relay designed for panel mounting. This power relay features two normally open contacts and fast-on terminals. It is suitable for various industrial applications, enhancing machine reliability and reducing enclosure sizes for efficient installation. This relay operates with hard-wired automated systems, complementing functions of programmable logic controllers (PLCs).

• Coil Control Voltage: 230V AC
• Contact Rating: 30A
• Mounting Flexibility: Din Rail or Panel

Product Highlights

This relay is versatile, compact, and reliable for various control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D / Schneider

Technical Specifications

• Catalog Number: RPF2AP7
• Amperage: 30 Amp 277 V AC, 20 Amp 28 V DC
• Resistance: 6500 Ohms
• Weight: 0.18 lb
• Height: 68.5 mm
• Width: 33.7 mm
• Operating Temperature: -40 to 55 degrees C
• Warranty: 18 months
