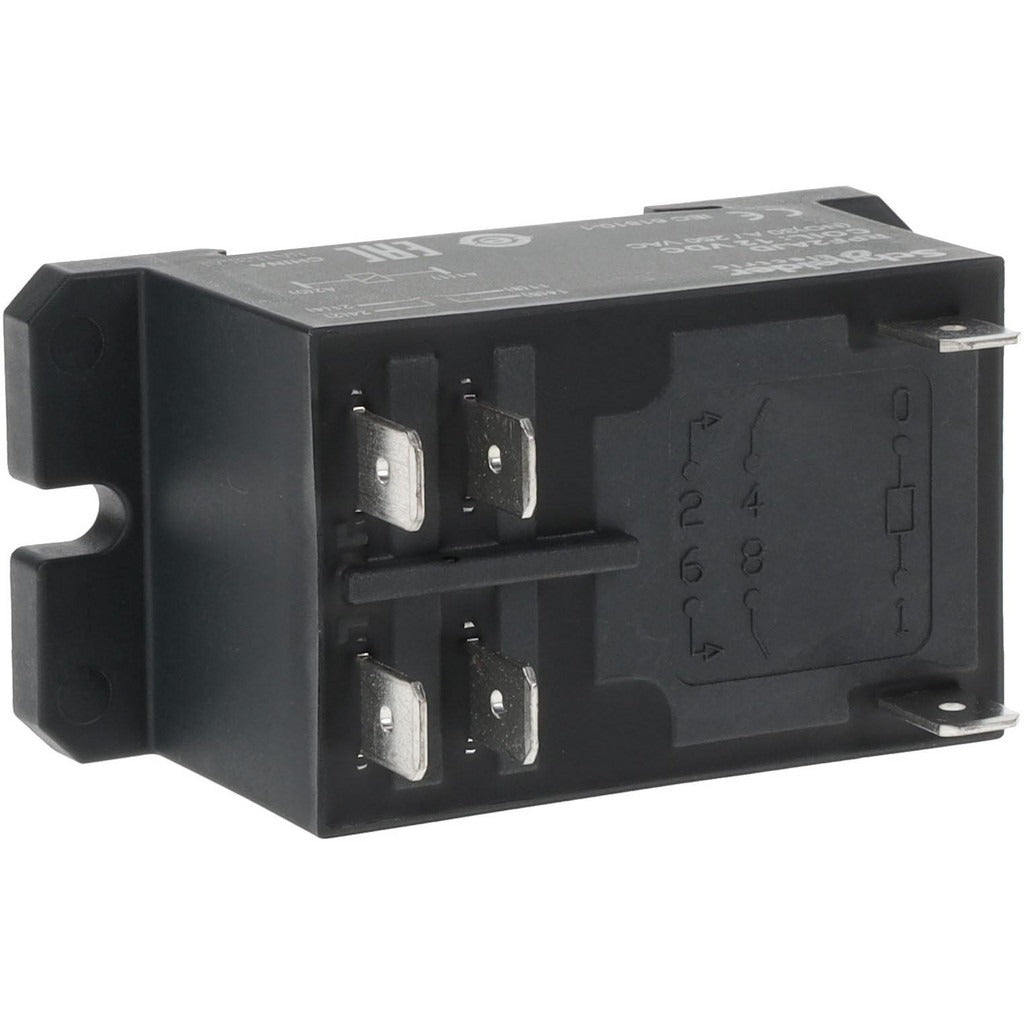

Schneider Electric RPF2AJD Plug-in Relay 7500 Va 2NO

Product Description

The SCHNEIDER ELECTRIC RPF2AJD is an electromechanical plug-in general purpose relay rated at 7,500 VA, designed for control circuit switching in industrial, commercial, and building automation applications. The relay features a 2NO (double normally open) contact form and a 12 VDC coil. Contact ratings reach 20 amps at 28 VDC and 30 amps at 250/277 VAC, making it suitable for both DC control circuits and standard AC load switching. The plug-in terminal design allows fast board-level installation and replacement without rewiring. Licensed electricians and control panel technicians are the primary installers for this relay type.

The RPF2AJD fits general purpose relay sockets used in motor control centers, control panels, HVAC equipment, and building automation enclosures. Its compact footprint — 2.7 inches long, 1.4 inches wide, and 1.7 inches tall — suits tight panel layouts. The 7,500 VA power rating supports a broad range of resistive and inductive load applications in both residential and light commercial equipment. No specific compatible models or systems are identified in the available product data beyond the general plug-in relay socket format.

Key Features

• 7,500 VA power rating supports a wide range of resistive and inductive loads
• 2NO contact form provides two independent normally open switching paths
• 12 VDC coil voltage for low-voltage DC control circuit compatibility
• 30-amp contact rating at 250/277 VAC for standard single-phase AC loads
• Plug-in terminal design enables tool-free swap-out in relay sockets
• Listed to CSA C22.2 No. 14, EN/IEC 61810-1, and UL 508 for broad code compliance

Compatibility

Designed as an OEM-style replacement plug-in general purpose relay for use in standard relay sockets compatible with this form factor. No specific compatible socket model numbers or system families were identified in the available product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before removing or inserting the relay. Verify coil voltage and contact rating match the circuit requirements before installation. Do not exceed the rated contact current or voltage for the load being switched.
