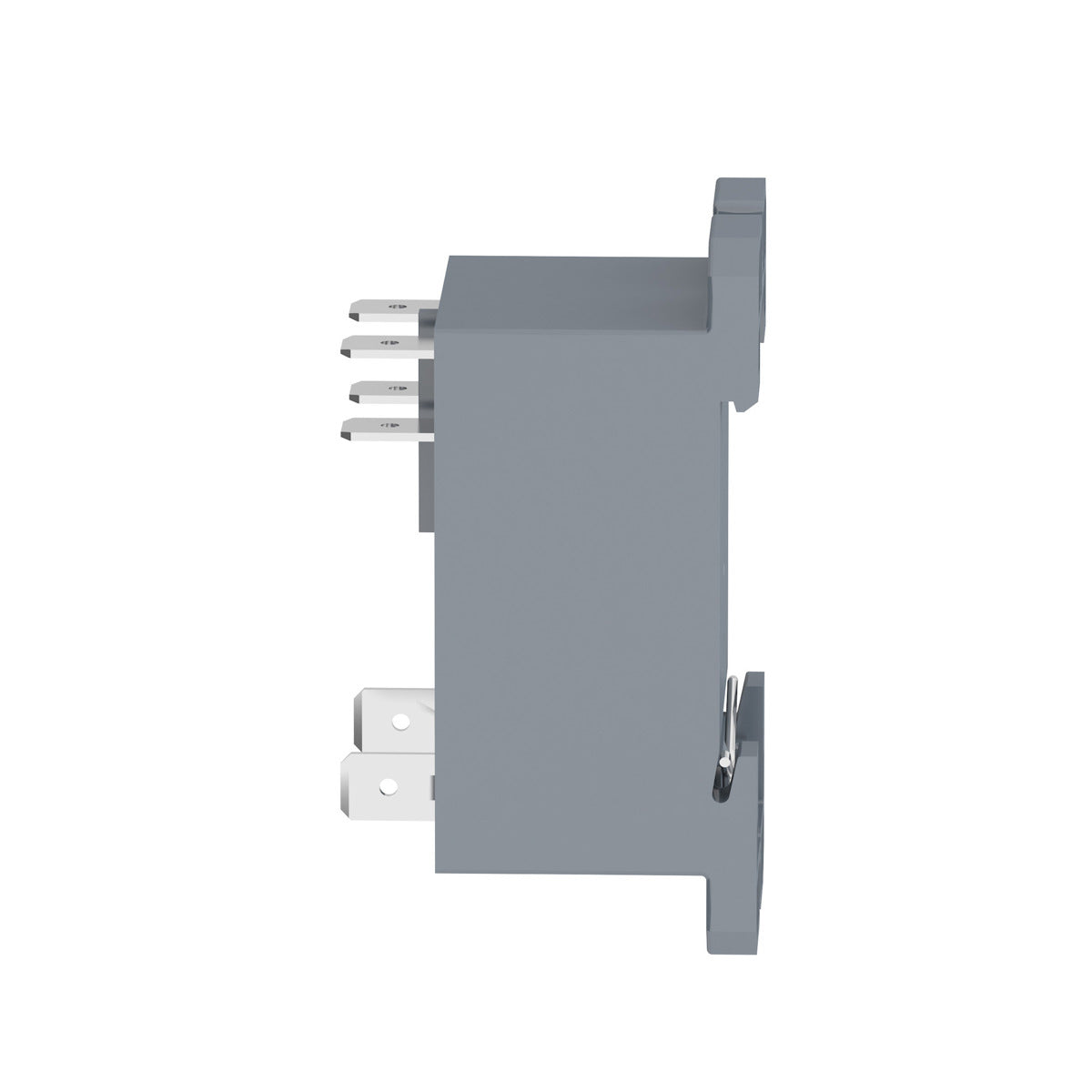

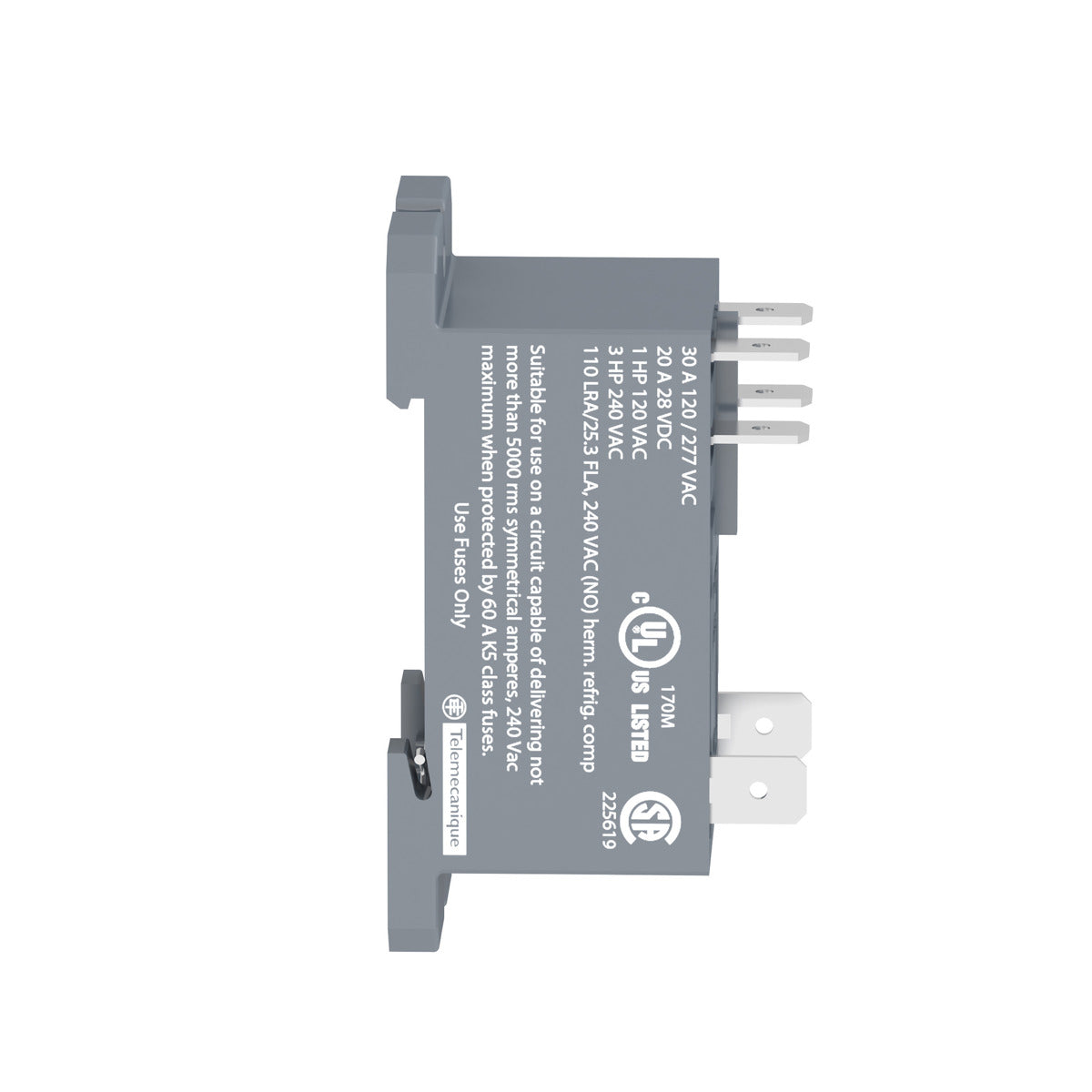

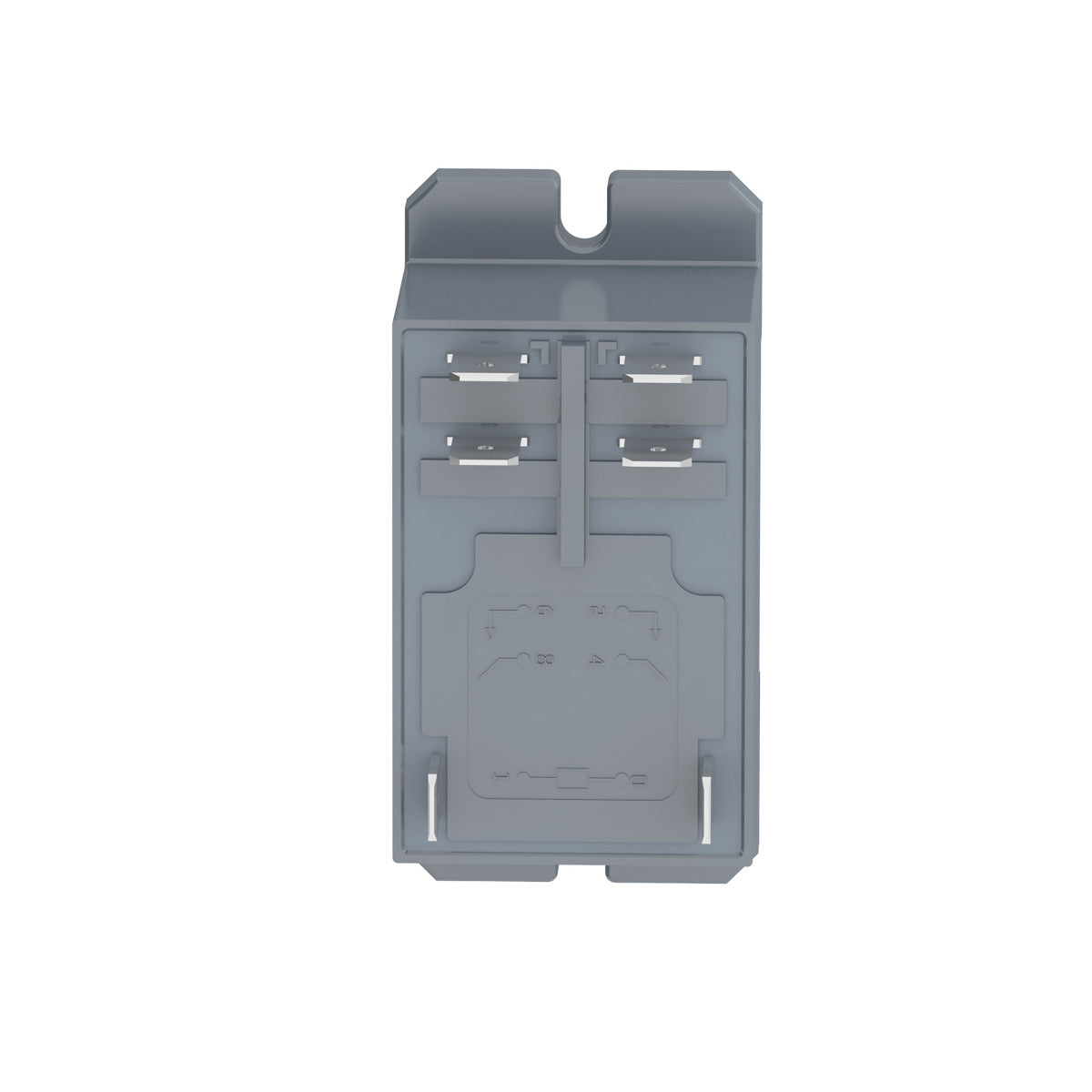

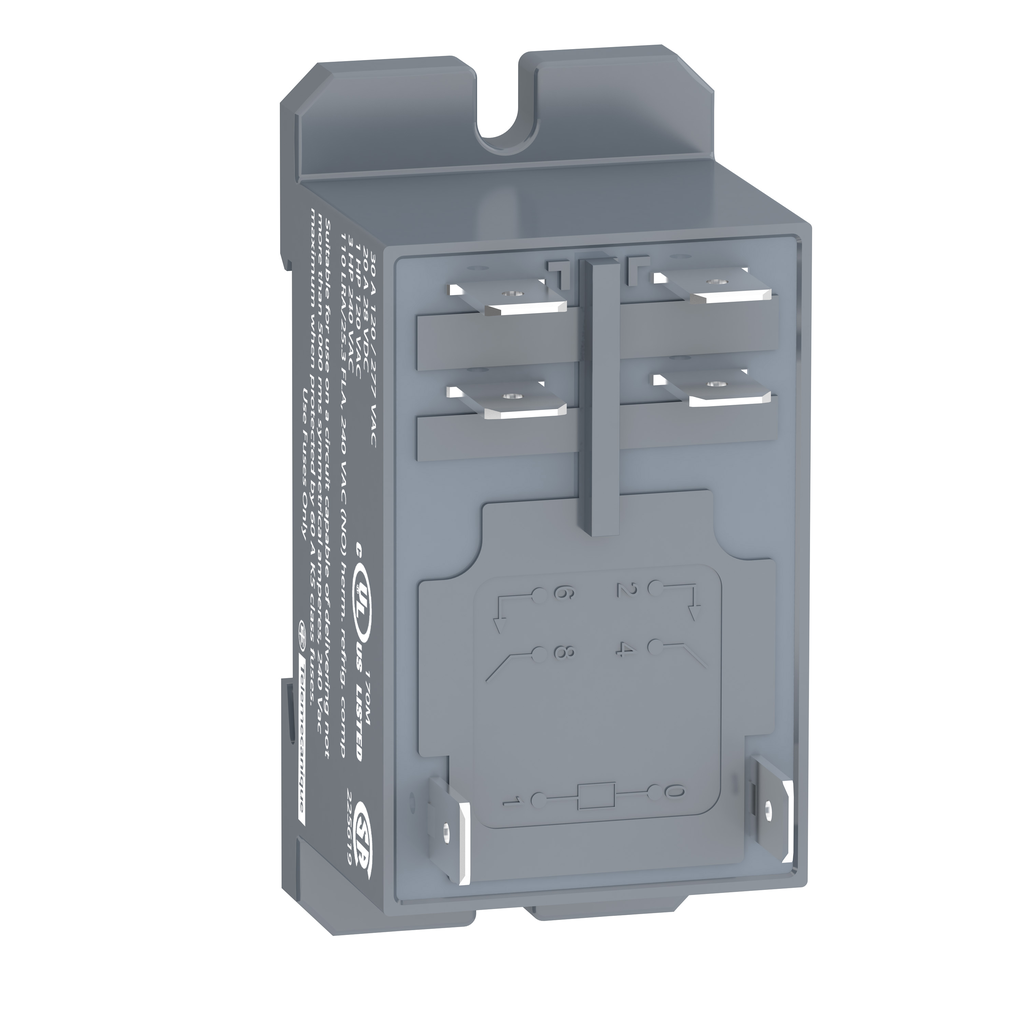

Schneider Electric RPF2AF7 Square D RPF2AF7 120 VAC 30 Amp 2NO Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RPF2AF7 is a plug-in relay designed for DIN rail or panel mounting. It operates on a control voltage of 120V AC and features two normally open contacts rated for thirty amps. This product is useful in reducing enclosure size while enhancing machine reliability. It is suitable for hard-wired automation systems to complement industrial programmable logic controllers.

• 120V AC control voltage
• 30A contact rating with two normally open configurations
• DIN rail or panel mount capable

Product Highlights

Reliable and compact relay for various automation needs.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: RPF2AF7
• Contact Rating: 30A 250V AC
• Control Type: Without lockable test button
• Dimensions: Width 33.7 mm, Height 68.5 mm
• Weight: 0.18 lb
• Operating Temperature: -40 to 55 degrees C
• Country of Origin: China
• Certifications: CE, CSA, UL
