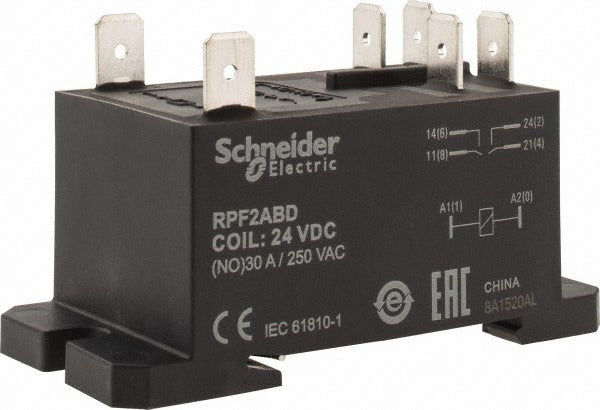

Schneider Electric RPF2ABD Plug-in Relay 7500 Va 2NO 24V

Product Description

The SCHNEIDER ELECTRIC RPF2ABD is an electromechanical plug-in general purpose relay rated at 7,500 VA, designed for switching and control applications in industrial and commercial electrical systems. It features a 2NO (double normally open) contact configuration and operates on a 24 VDC coil voltage. Contact ratings reach 20 amps at 28 VDC, 25 amps at 28 VDC peak, and 30 amps at 250/277 VAC, making it suitable for a wide range of load types. Licensed electricians and controls technicians are the primary installers, typically integrating this relay into control panels, motor control centers, and automation enclosures.

The RPF2ABD is suited for residential, commercial, and light industrial control circuits where a reliable plug-in relay is required. Its plug-in terminal type allows fast installation and replacement without rewiring the socket base. Typical applications include HVAC control panels, lighting control systems, machine control circuits, and building automation panels where 24 VDC coil logic signals are used to switch higher-amperage loads.

Key Features

• 7,500 VA power rating supports a broad range of resistive and inductive loads
• 2NO contact form provides two independently switched normally open circuits
• 24 VDC coil voltage compatible with common low-voltage control circuits
• 30-amp contact rating at 250/277 VAC for line-voltage load switching
• Plug-in terminal type enables fast swap-out without disturbing field wiring
• Meets CSA C22.2 No. 14, EN/IEC 61810-1, and UL 508 standards

Compatibility

Designed as an OEM-style plug-in general purpose relay for use with compatible relay socket bases accepting the RPF2ABD form factor in 24 VDC coil control circuits.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local codes. De-energize and lock out the control panel before removing or inserting the relay. Verify the socket base pinout matches the RPF2ABD contact configuration before energizing. Do not exceed the published contact current and voltage ratings for the intended load type.
