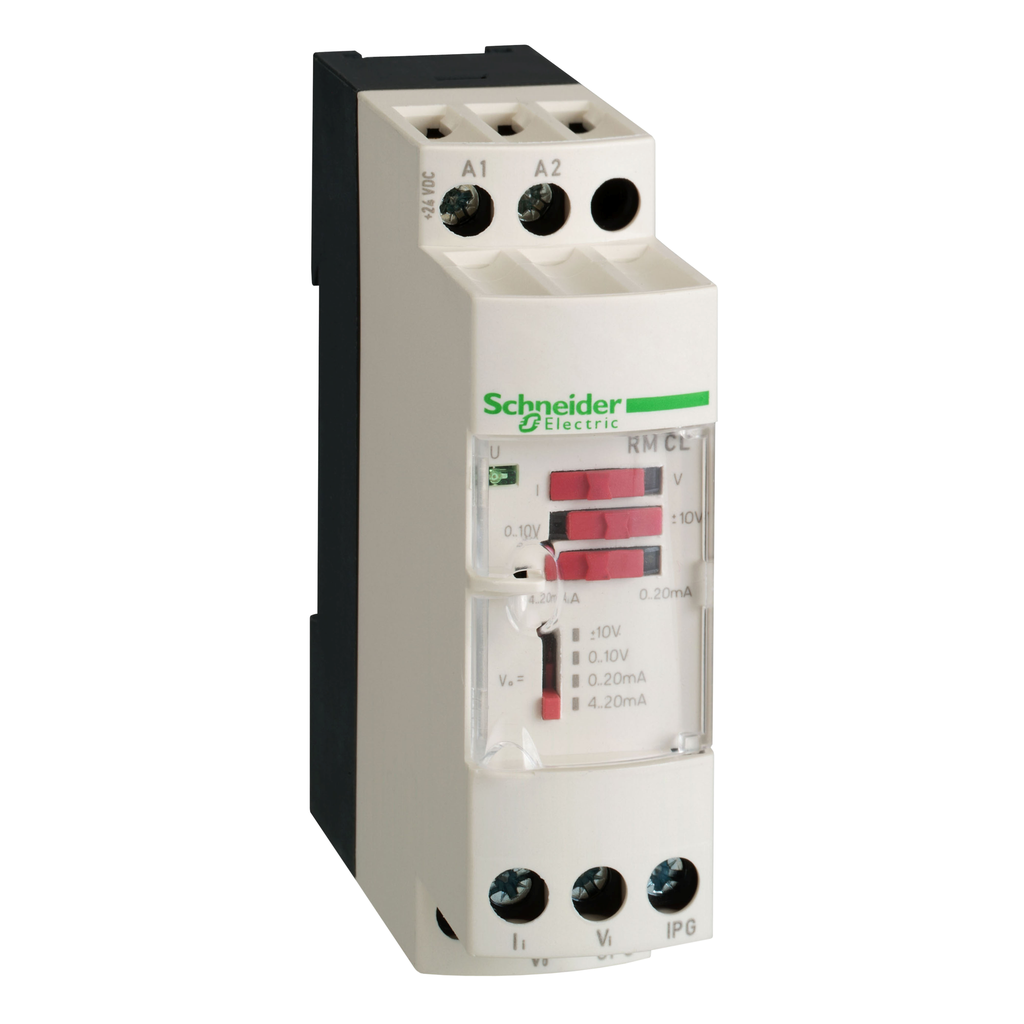

Schneider Electric RMCL55BD Analog Converter Module RMC Plus Options

Product Description

The Schneider Electric RMCL55BD Analog Converter Module RMC Plus Options is a reliable solution for converting voltage and current signals. Designed for diverse applications, it supports a 24V DC supply voltage, isolated inputs and outputs, and a wide operating temperature range. This converter module conforms to IEC standards and is UL and CSA certified, making it suitable for universal use.

• Convert common signals
• Secure settings with protective cover
• Wide operating temperature range

Product Highlights

This module allows for the conversion of common signals with ease. It can operate at 24V DC, is isolated, and offers four inputs and outputs with switchable ranges. With secure settings and a sealable protective cover, this module is suitable for various industrial environments.

Product Information

Standard Information

• Catalog Number: RMCL55BD
• Manufacturer: Schneider Electric

Technical Specifications

• Output: Voltage 0...10V ≥ 100 KOhm switchable, Voltage +/- 10V ≥ 100 KOhm switchable, Current 4...20 mA ≤ 500 Ohm switchable, Current 0...20 mA ≤ 500 Ohm switchable
• Weight: 0.26 lb
• Current: 70 mA
• Standard: IEC 60584-1, IEC 60947-1
• Enclosure: IP50 (Housing), IP20 (Terminal Block)
• Sub Brand: Zelio
• Net Weight: 0.12 kg
• Power Supply: 24 V DC
• Certifications: CSA, GL, UL
• Warranty Length: 18 months
• Country of Origin: Indonesia
• Temperature Rating: 32 to 140 F
• Storage Temperature: -40 to 85 degrees C
• Operating Temperature: 0 to 50 degrees C (mounting side by side), 0 to 60 degrees C (2 cm spacing)
