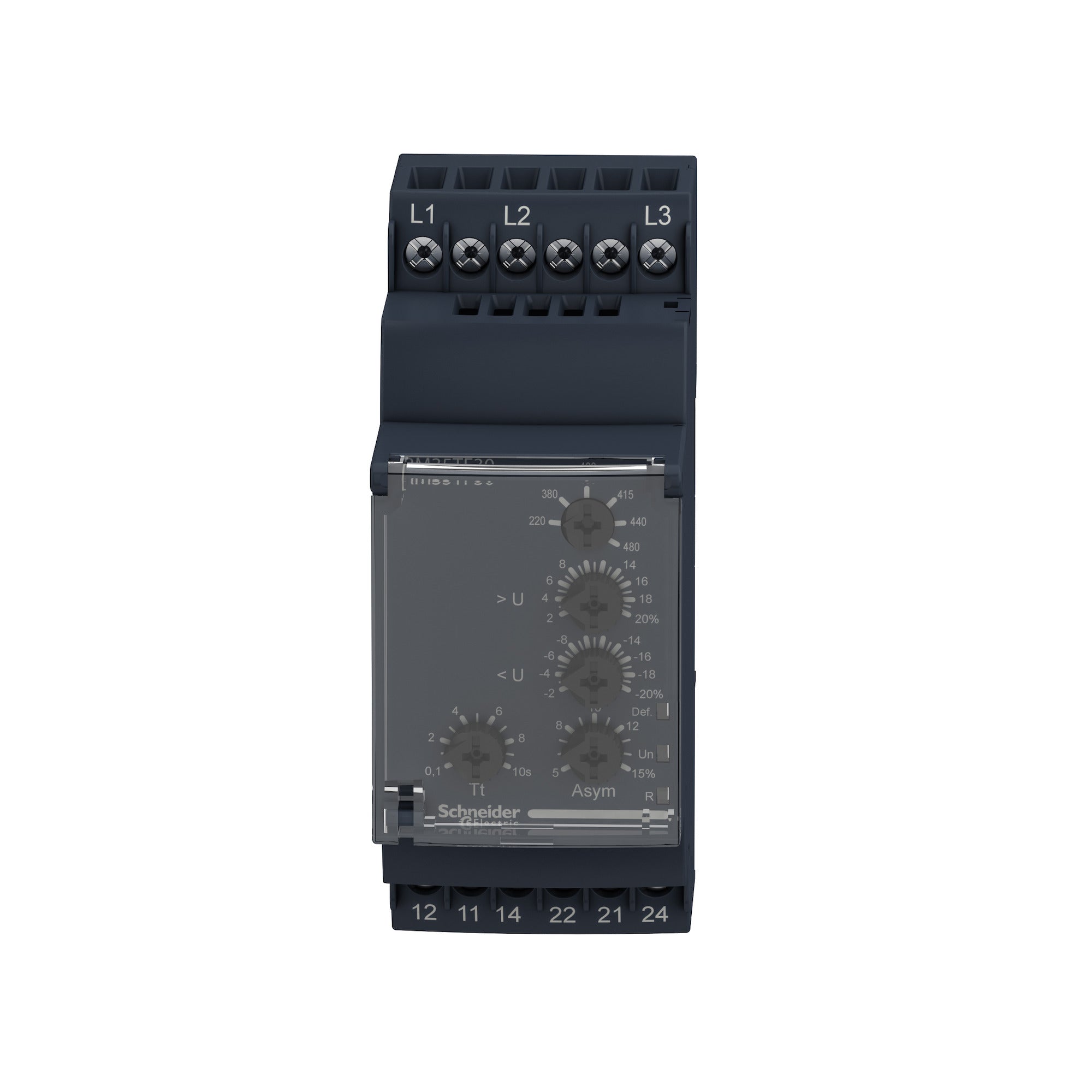

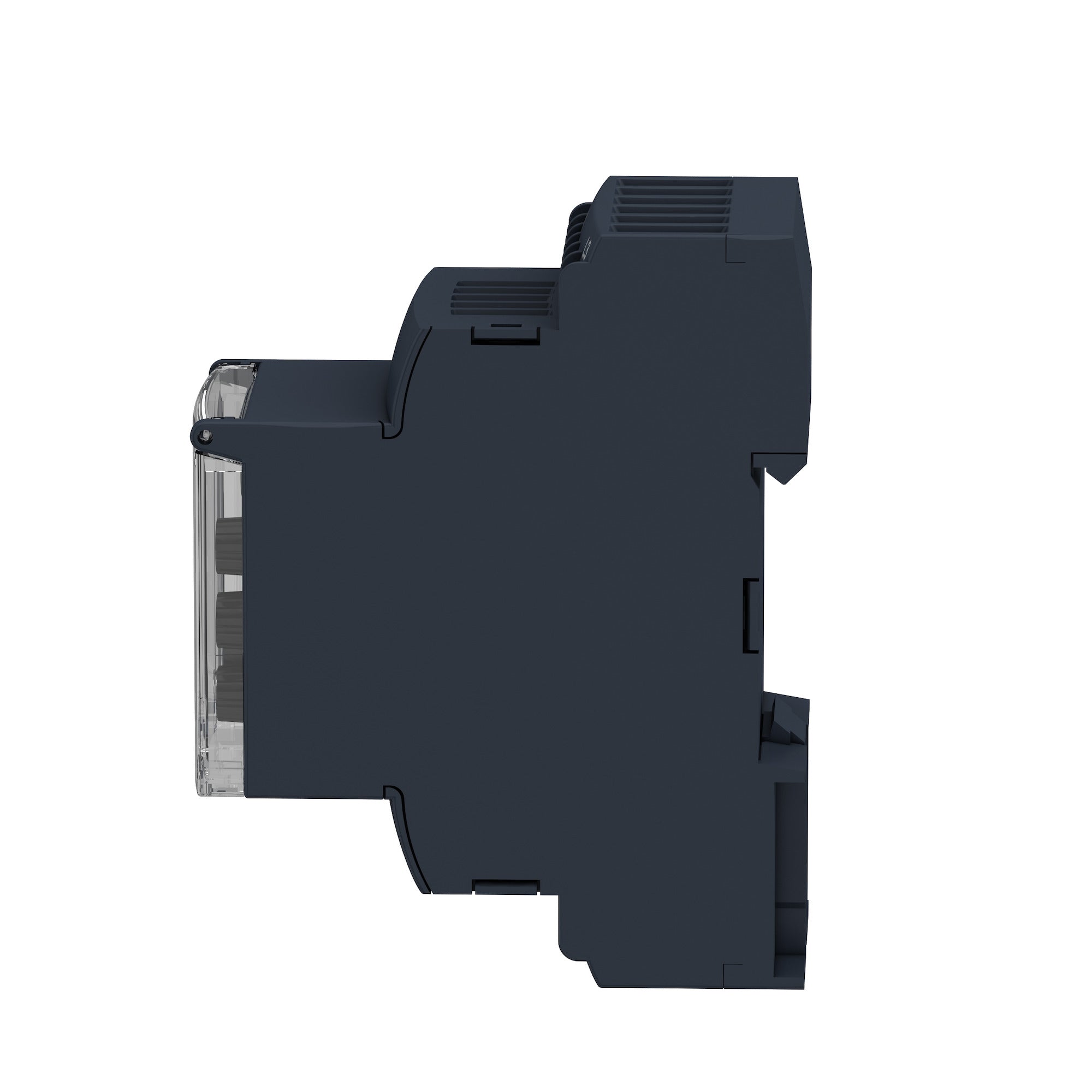

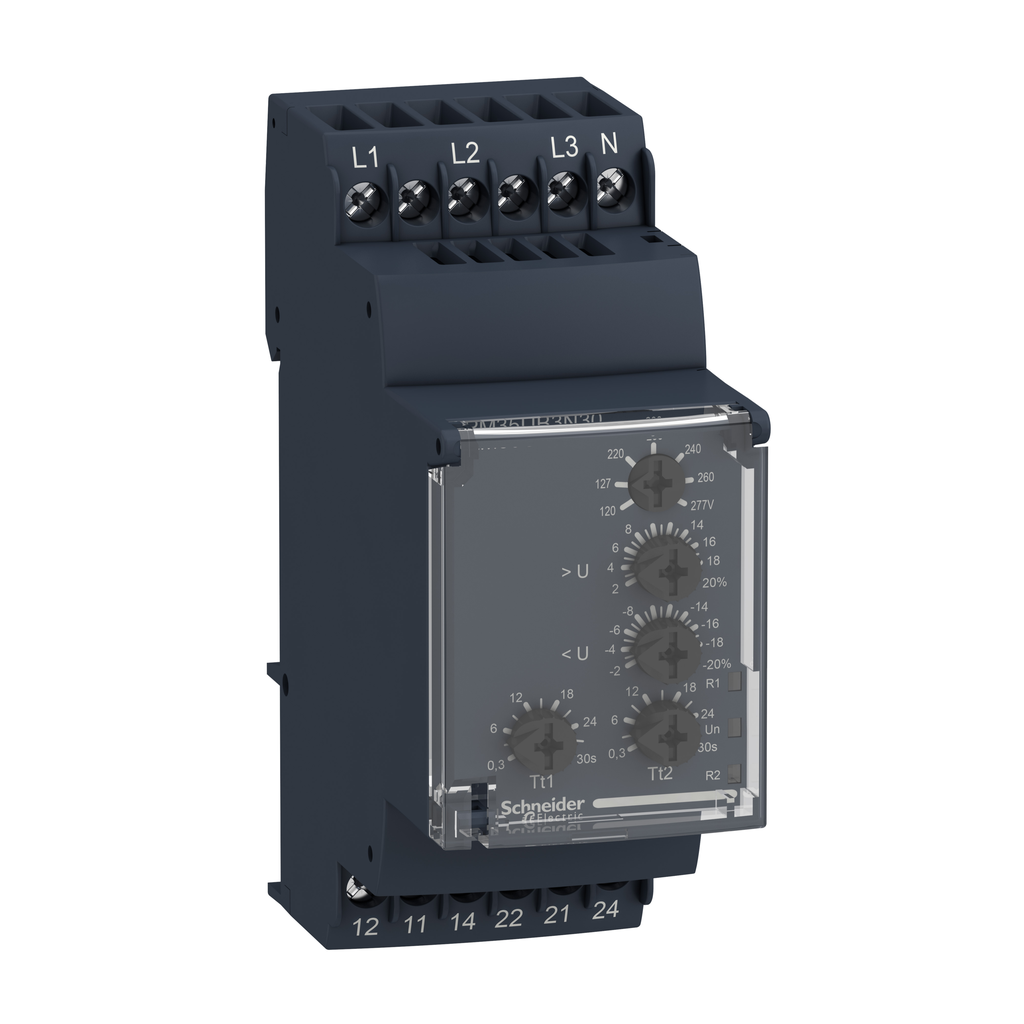

Schneider Electric RM35UB3N30 voltage control relay 5A 2CO 120277V AC

Product Description

Schneider Electric RM35UB3N30 is a voltage control relay designed for monitoring electrical values in 3-phase networks. This modular relay fits into industrial and building control panels and is suitable for various applications, including hoisting and packaging. With a width of 35 millimeters, it can be easily installed on DIN rail systems. It includes a sealable cover and accurate settings via screw trimmers. The RM35UB3N30 also features automatic shutdown management and quickly identifies faults for efficient troubleshooting.

• Modular design for DIN rail installation.
• Automatic shutdown management.
• Suitable for various industrial applications.

Product Highlights

This voltage control relay is ideal for applications requiring precise monitoring of electrical voltage in complex systems.

Product Information

Standard Information

• Catalog Number: RM35UB3N30
• Brand: Schneider Electric

Technical Specifications

• Voltage Type: 3-phase
• Width: 35 mm
• Weight: 0.18 lb
• Amperage: 5 A AC/DC
• Standard: IEC 60255-1
• Response Time: Less than 200 ms
• Operating Temperature: -20 to 50 degrees C
• Country of Origin: Indonesia
