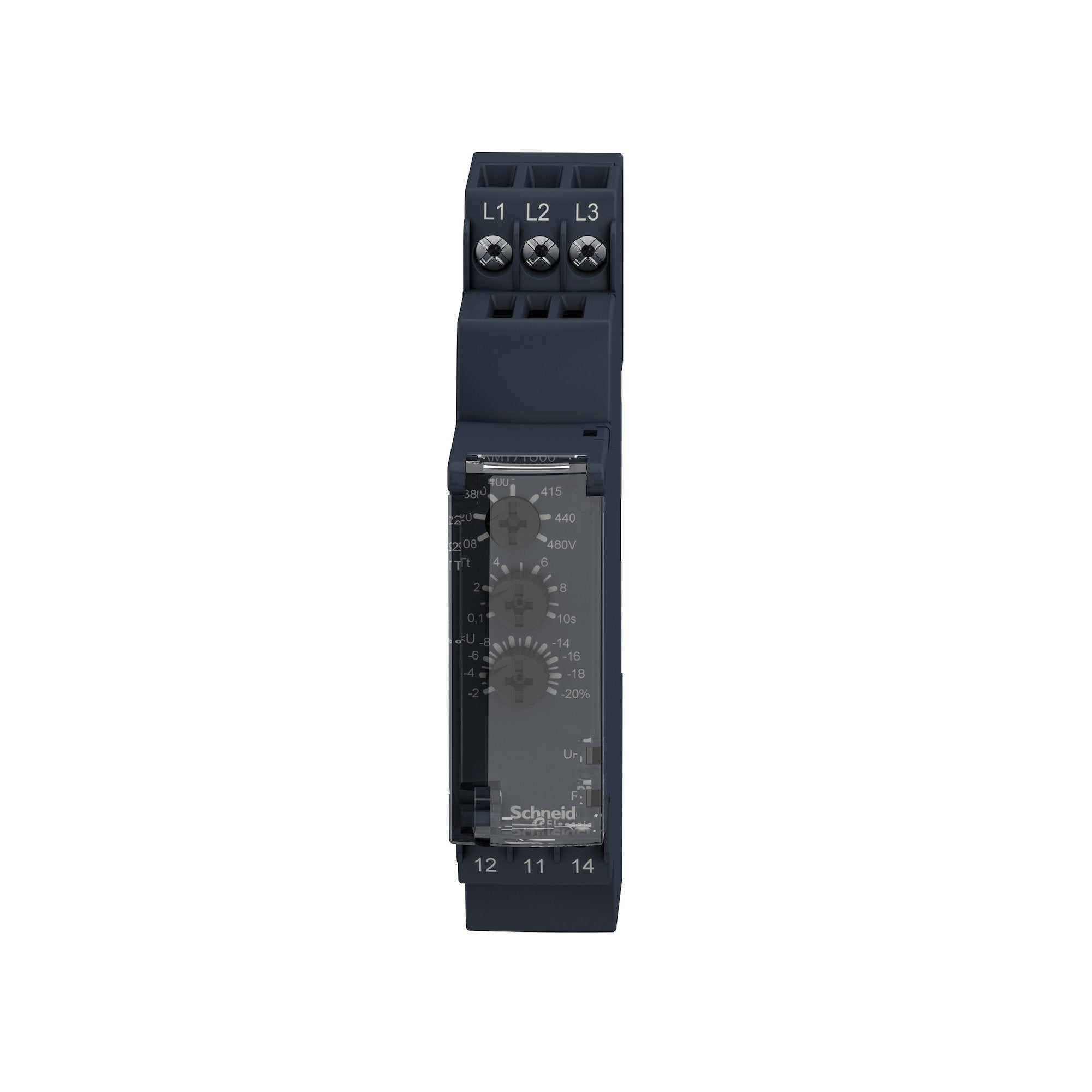

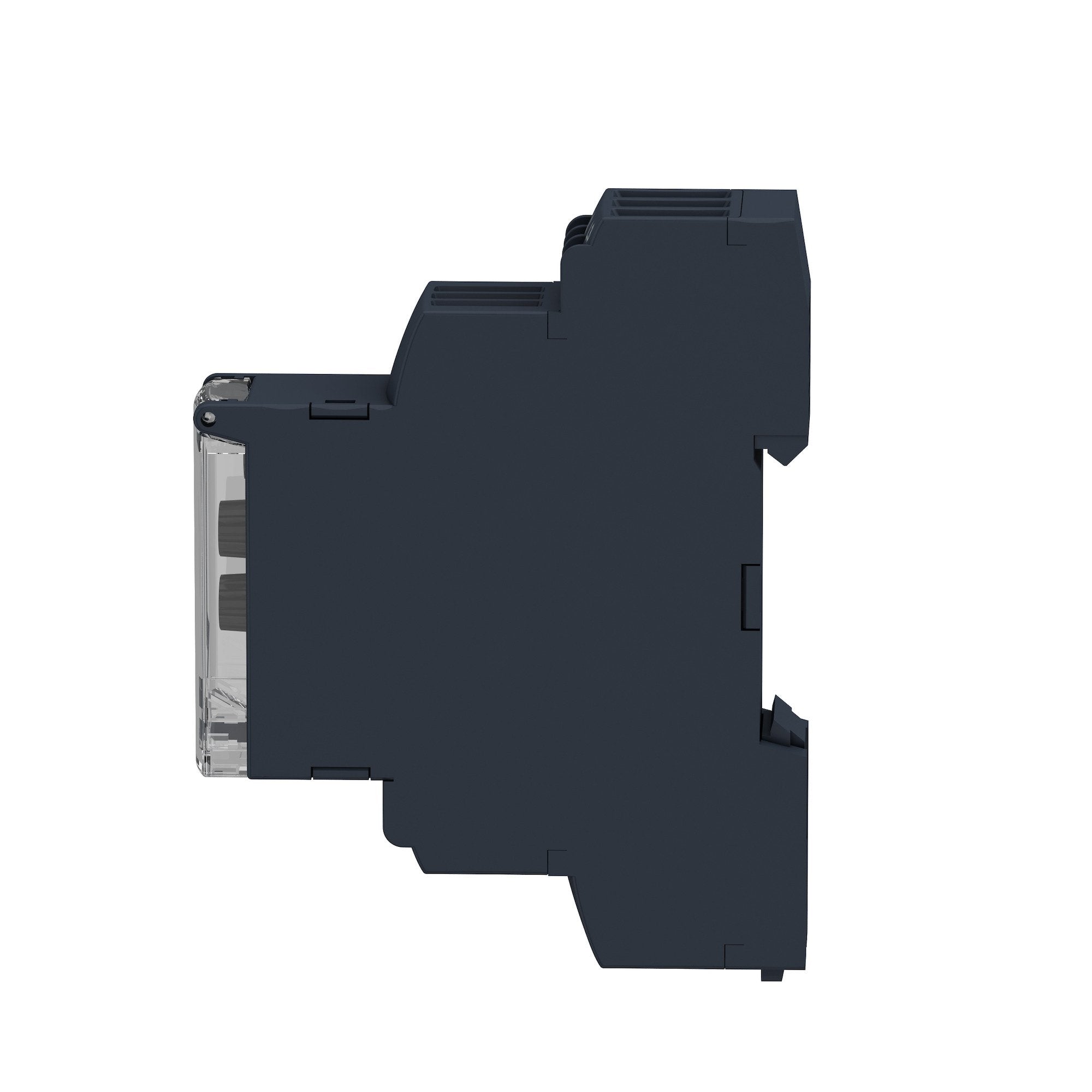

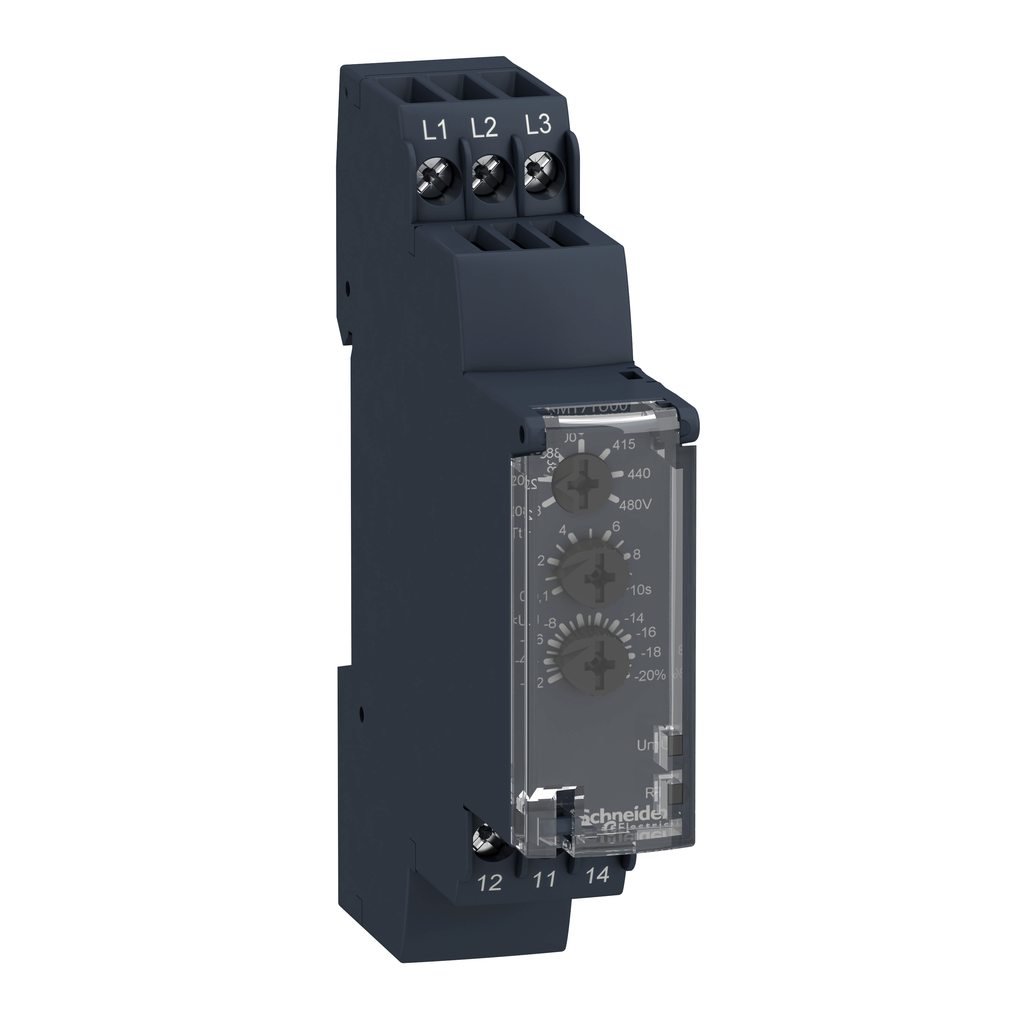

Schneider Electric RM17TU00 250 VAC/VDC 5 Amp 3-Phase 1NO 1NC Plastic 35 mm Din Rail Mount Multi-Functional Relay

Product Description

This Schneider Electric RM17TU00 relay is a multi-functional relay designed for monitoring power supply circuits in three-phase networks. It is suitable for various industrial applications, including hoisting, packaging, lifts, textiles, and water systems. This relay features a slim design measuring seventeen point five millimeters in width, allowing for more efficient installation on DIN rail systems. It occupies the same space as a standard one-pole DIN device.

• Compact size for easy installation
• Monitors three-phase supply effectively
• Sealable cover with simple settings

Product Highlights

This product monitors its own power supply. If the power supply becomes abnormal, the output relay will de-energize. It functions as a multi-function controller, making it a suitable choice for hard-wired logic automated systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: RM17TU00
• Power Supply: 250 VAC/VDC
• Current Rating: 5 A
• Width: 17.5 mm
• Weight: 0.29 lb
• Response Time: Less than 200 ms during a fault
• Operating Temperature: -20 to 50 degrees Celsius
• Country of Origin: Indonesia
