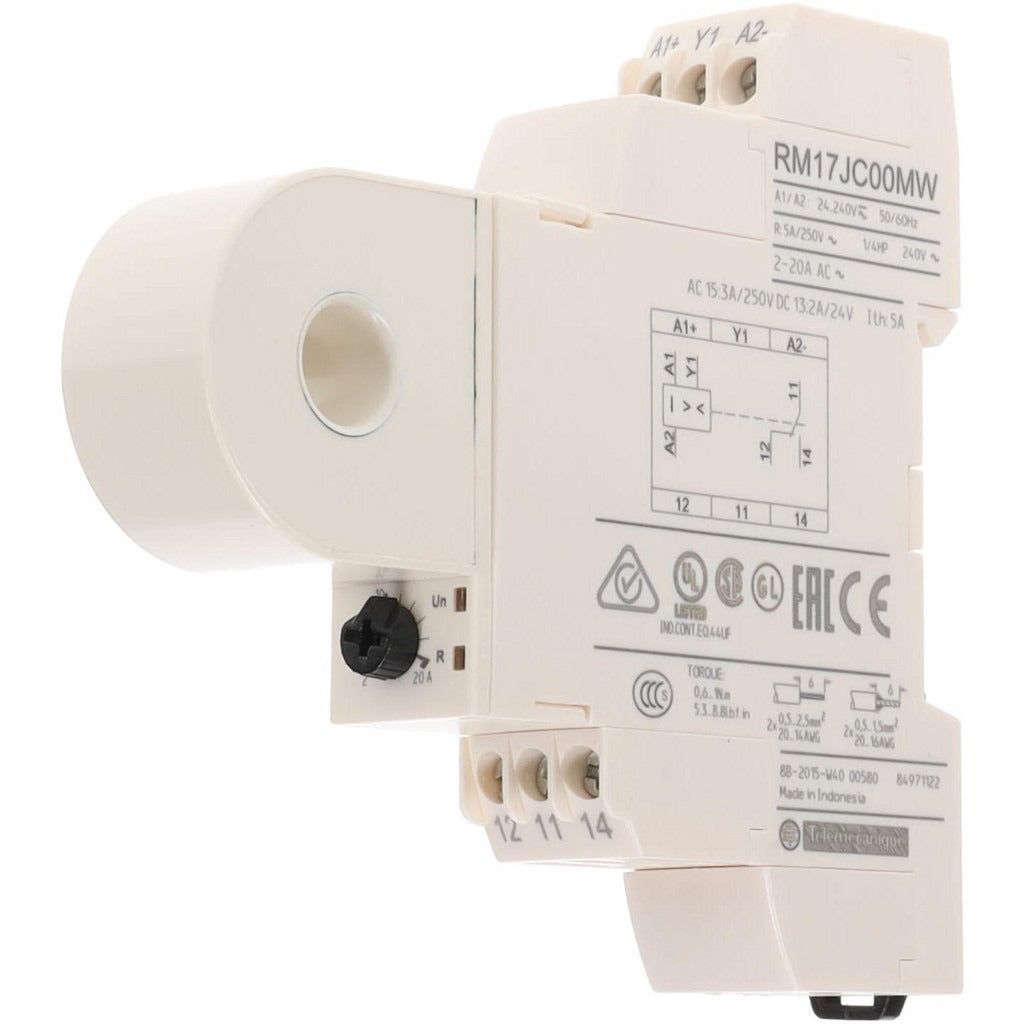

Schneider Electric RM17JC00MW Over Current Relay 2-20A

Product Description

The SCHNEIDER ELECTRIC RM17JC00MW is an over current control relay designed to monitor and protect electrical circuits from overcurrent conditions. It operates across a wide supply voltage range of 24 to 240 volts AC/DC, making it adaptable to a broad range of control circuit applications. The relay handles sensed current from 2 to 20 amps and mounts on standard DIN rail for clean panel integration. Screw terminals provide secure, service-friendly wiring connections. Electricians and industrial control panel builders install this relay in motor protection, HVAC control panels, and process equipment where overcurrent monitoring is required.

The RM17JC00MW is suited for residential and commercial electrical panels, machine control enclosures, and building automation systems where overcurrent protection is a design requirement. Its wide voltage compatibility — 24 to 240 volts AC or DC — reduces the need to stock multiple relay variants for different panel voltages. The screw terminal interface and DIN rail form factor align with standard IEC panel-building practice, making it a practical fit in new construction and retrofit control panel work alike.

Key Features

• Wide operating voltage range: 24 to 240 volts AC/DC for versatile panel integration
• Sensed current range: 2 to 20 amps for overcurrent monitoring
• DIN rail mount with screw terminals for fast, secure installation
• IP20 ingress protection at terminals, IP30 at casing
• Certified to UL, CSA, EN/IEC 60255-6, GL, GOST, and multiple IEC utilization categories
• Compact footprint: 4.1 inches tall, 3.8 inches wide, 1.1 inches deep

Compatibility

Designed as an OEM-style DIN rail overcurrent relay for use in control panels, motor protection circuits, and building automation enclosures requiring 24 to 240 volt AC/DC supply compatibility.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel before wiring or removing the relay. Mount on a standard 35 mm DIN rail and secure all screw terminals to the torque value listed in the manufacturer installation sheet. Verify the supply voltage and sensed circuit amperage match the relay's rated ranges before energizing the panel.
