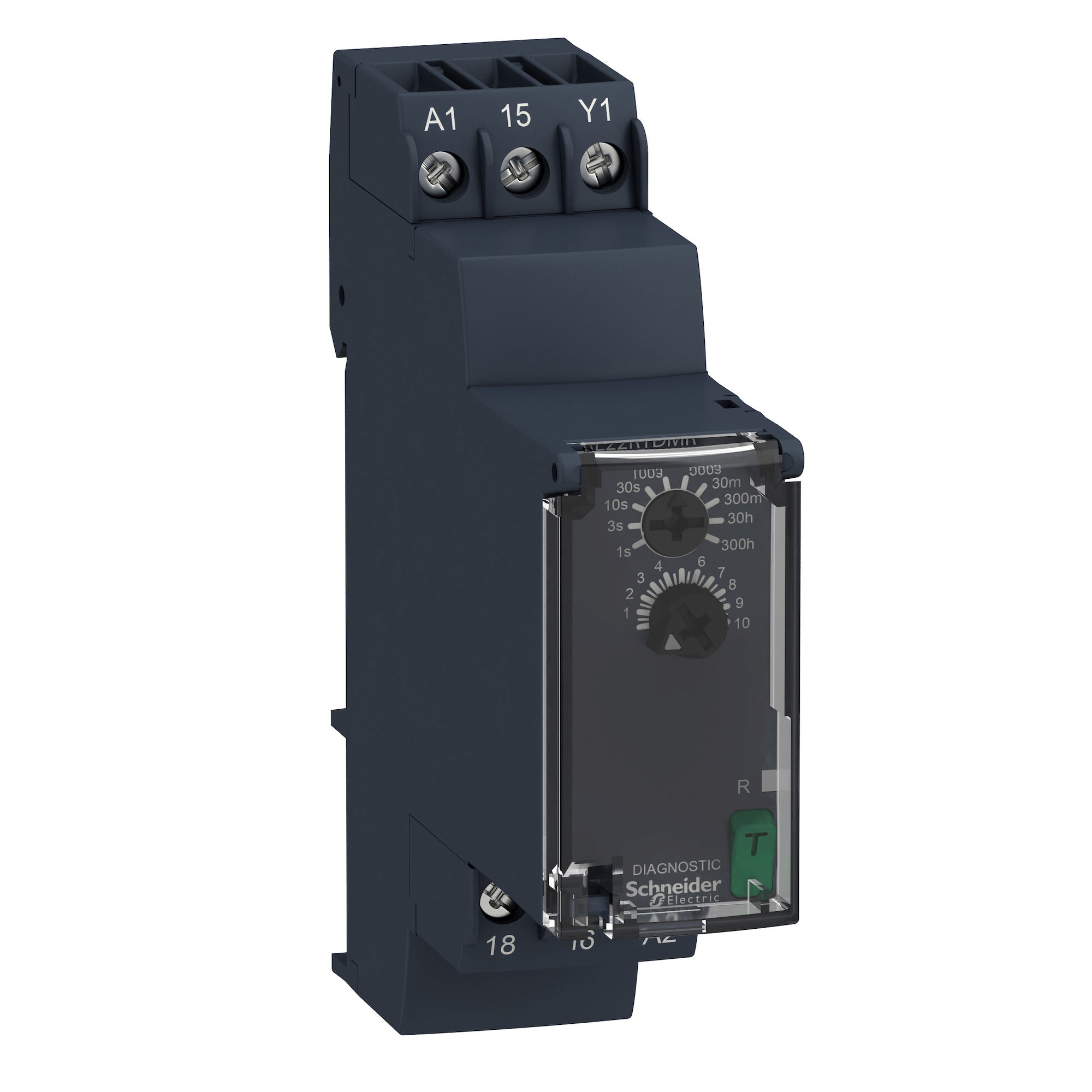

Schneider Electric RE22R1DMR Dual Function Relay Harmony Timer Relays 8A 1CO 0.05s300h 24...240V AC DC

Product Description

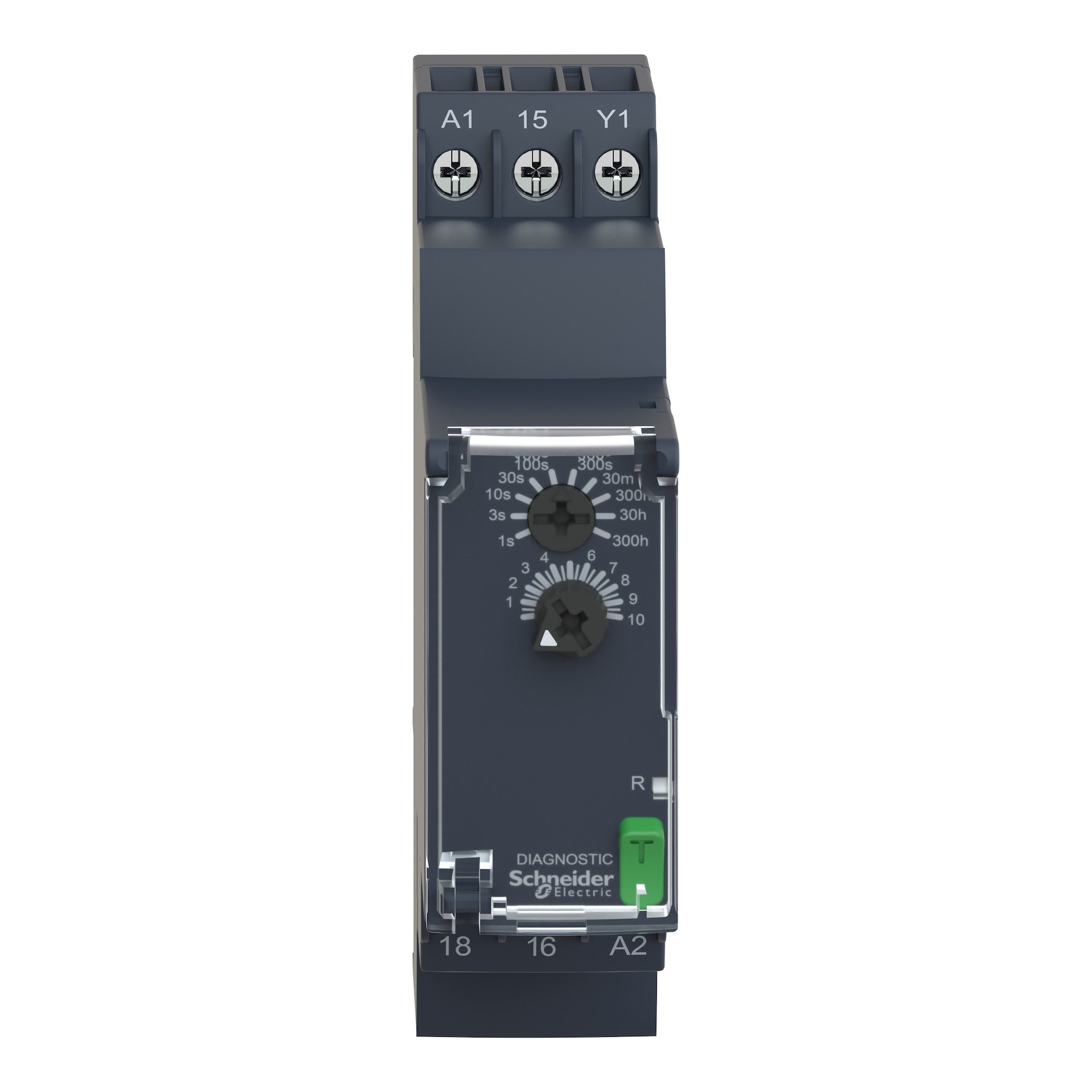

The Schneider Electric RE22R1DMR is a modular dual function timer relay. It can be set to run from one second to three hundred hours. With an output rating of eight amperes, it measures twenty-two point five millimeters in width. This timing relay is suitable for automation tasks such as controlling automatic doors, alarms, and lighting in restrooms and parking barriers.

• Configurable time settings from 1 second to 300 hours
• Output rating of 8A
• Compact design, only 22.5 mm wide

Product Highlights

The RE22R1DMR is designed for easy installation on a DIN rail. It occupies the same space as a standard modular 2-pole DIN device. This dual function timer is ideal for use in hard-wired logic applications, making it suitable for upgrading existing systems without needing a PLC.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Indonesia

Technical Specifications

• Catalog Number: RE22R1DMR
• Brand: Schneider Electric
• Output Rating: 8A
• Width: 22.5 mm
• Time Range: 1 second to 300 hours
