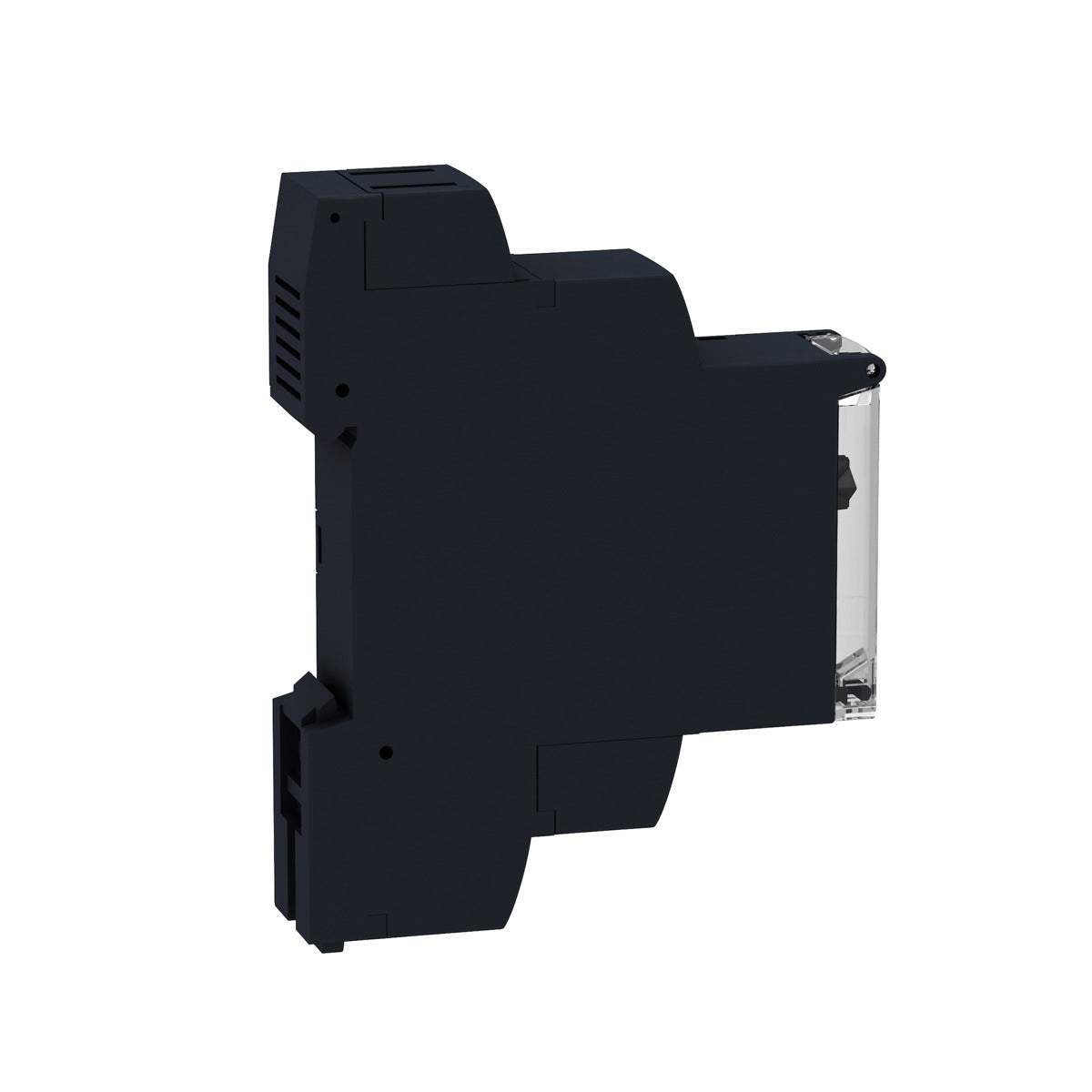

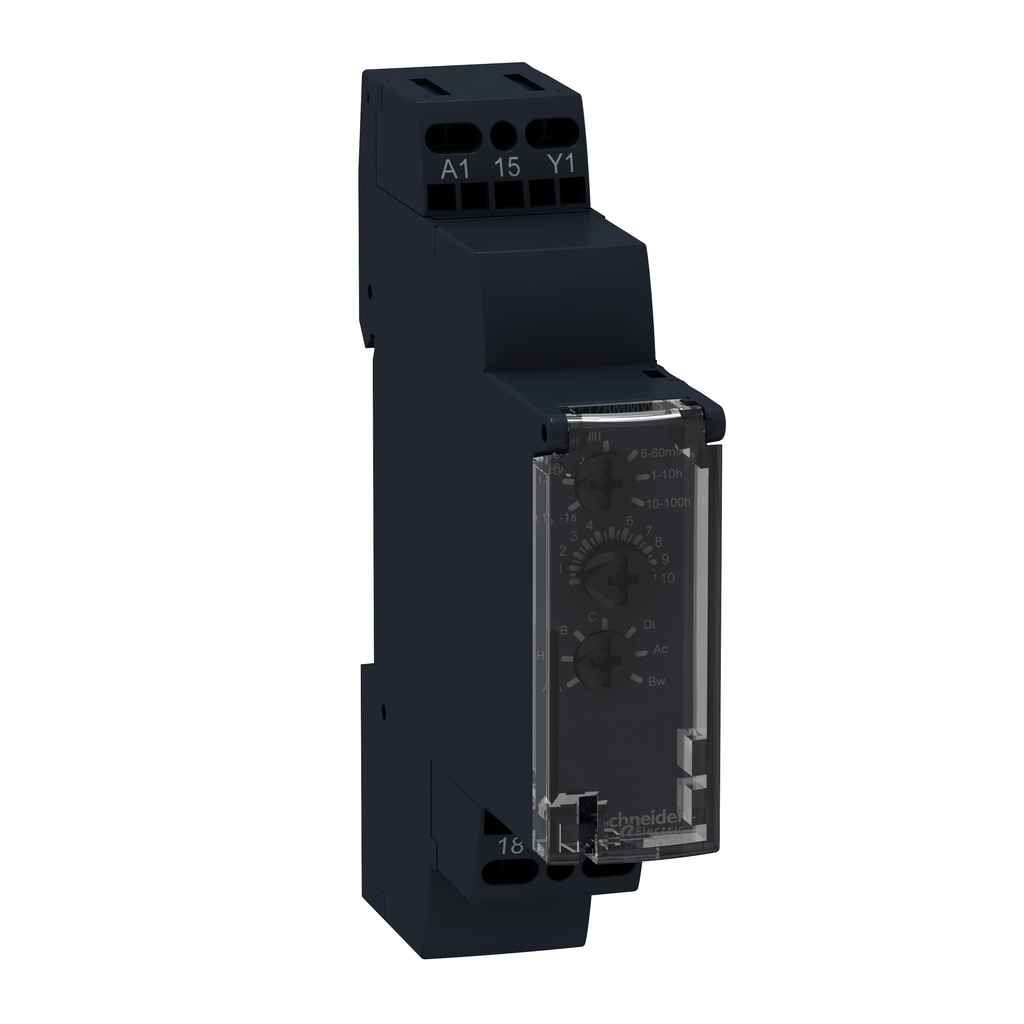

Schneider Electric RE17RMJU SQD Multifunction Relay, H 12V AC/DC

Product Description

The Schneider Electric RE17RMJU is a multifunction timing relay designed for various control applications. This relay can be adjusted from zero point one seconds to one hundred hours and is rated for an output of eight amps. It measures seventeen point five millimeters in width and operates on twelve volts alternating current or direct current. The relay features a single pole double throw (SPDT) contact configuration.

• Adjustment range from 0.1 seconds to 100 hours
• Output rating of 8A
• Compact design for DIN rail installation

Product Highlights

This product features a slim design that allows for easy installation on a DIN rail, utilizing the same space as a conventional single-pole device. It comes with a sealable cover and rotary trimmers for simple adjustments. The multifunction capability enables easy integration into existing hard-wired systems, making it suitable for upgrading older installations without the need for a programmable logic controller (PLC).

Product Information

Standard Information

• Catalog Number: RE17RMJU
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Schneider Electric
• Type: Modular timing relay
• Input Voltage: 12V AC/DC
• Output Rating: 8A
• Width: 17.5 mm
• Height: 90 mm
• Depth: 72 mm
• Weight: 0.15 lb
• Operating Temperature: -20 to 60 degrees C
• Country of Origin: Indonesia
