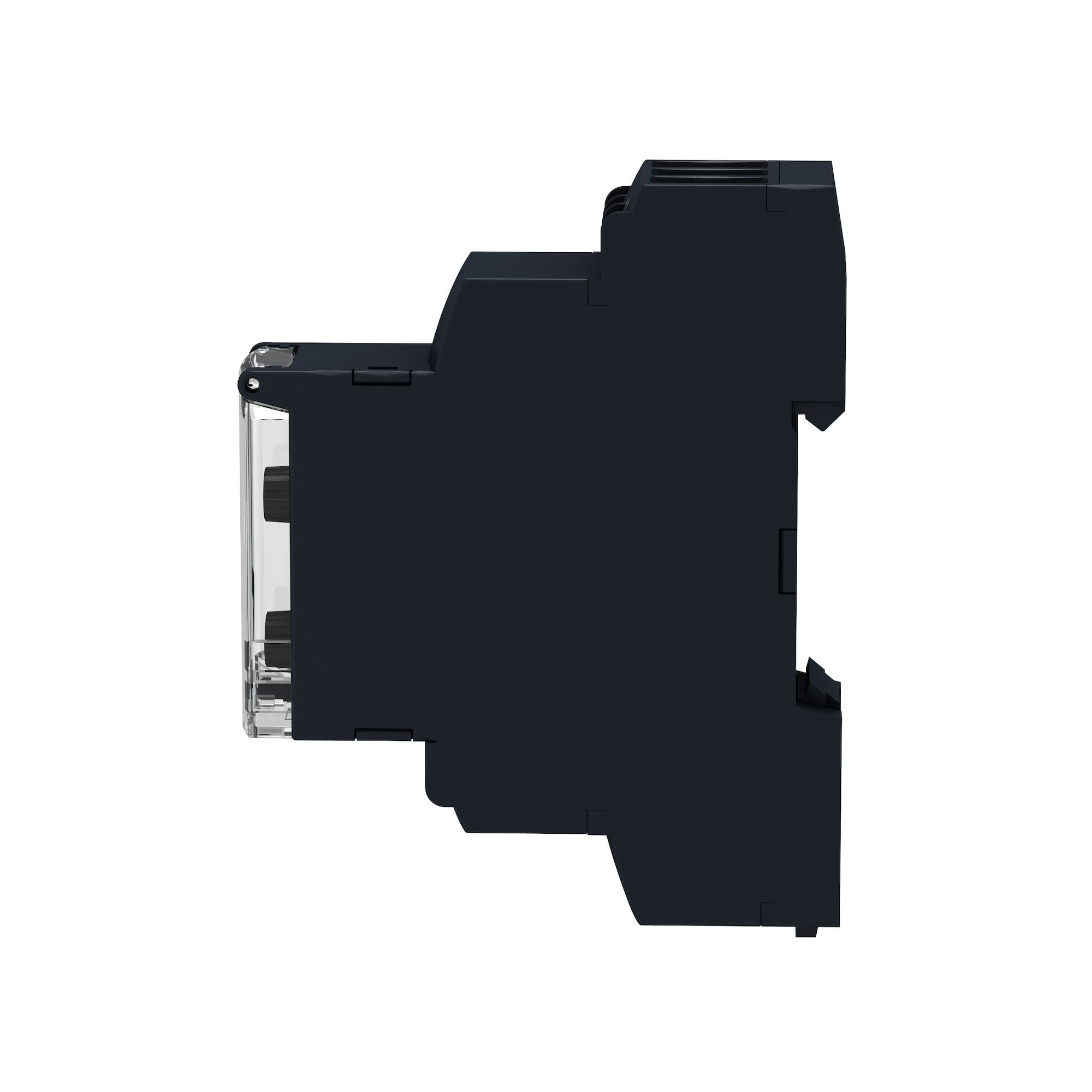

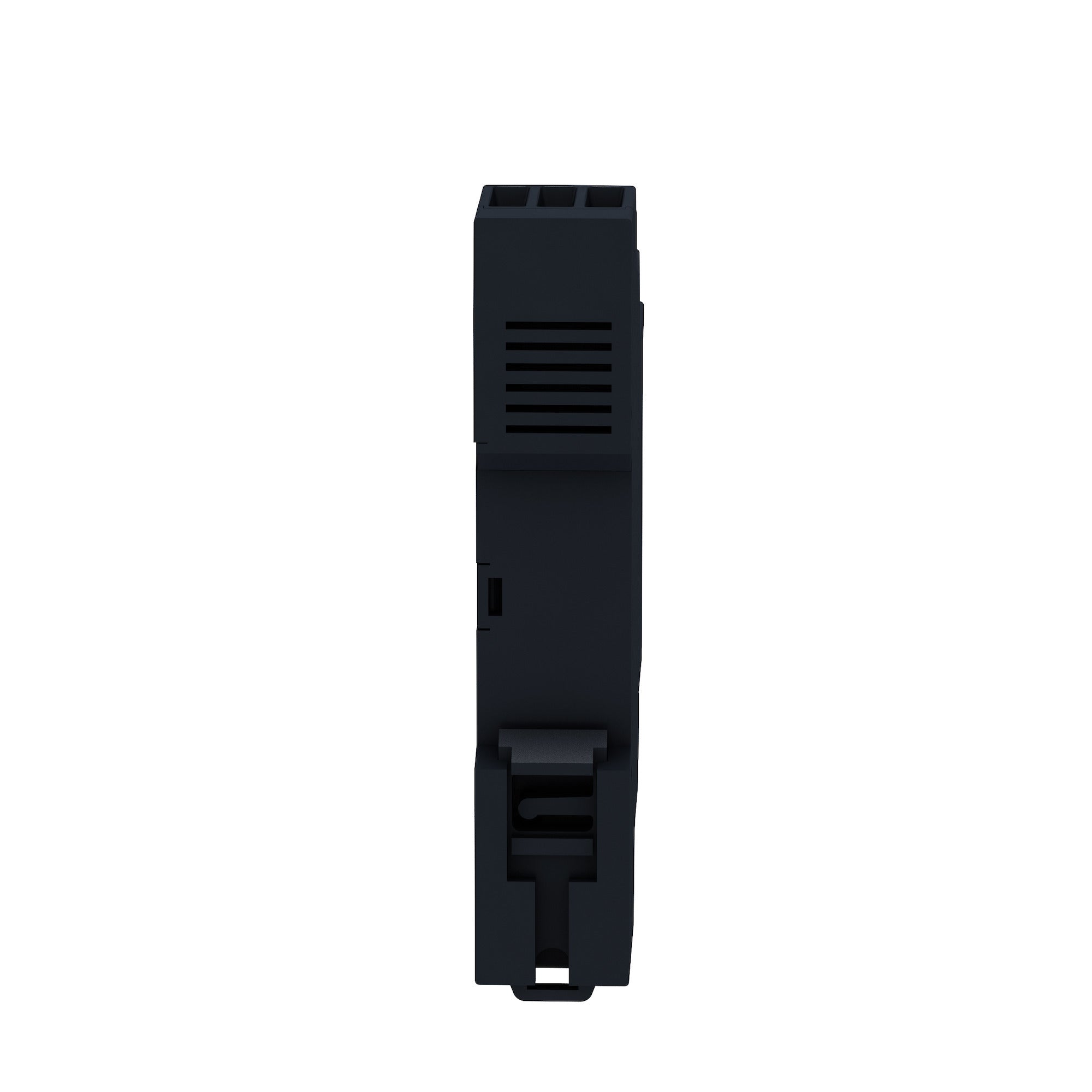

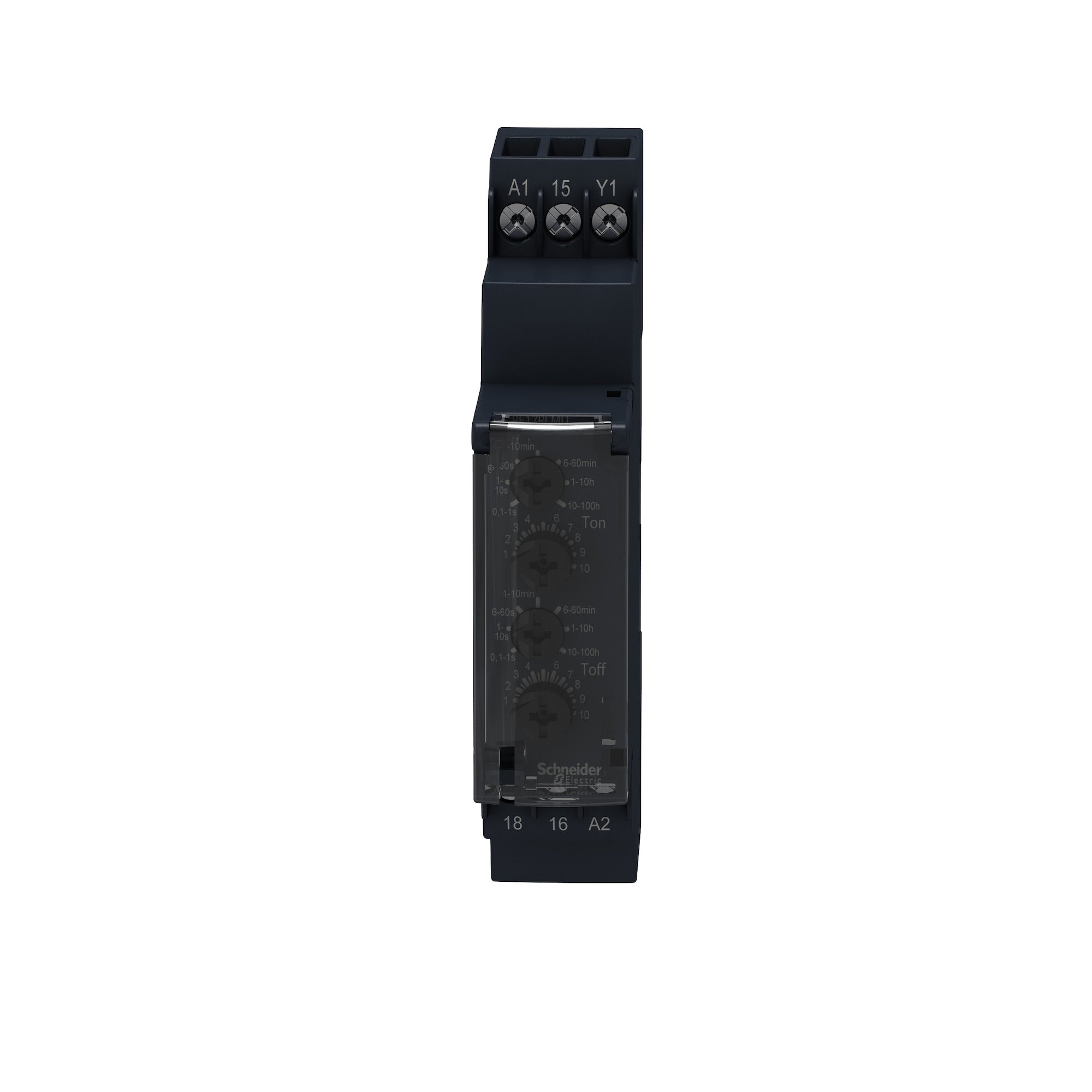

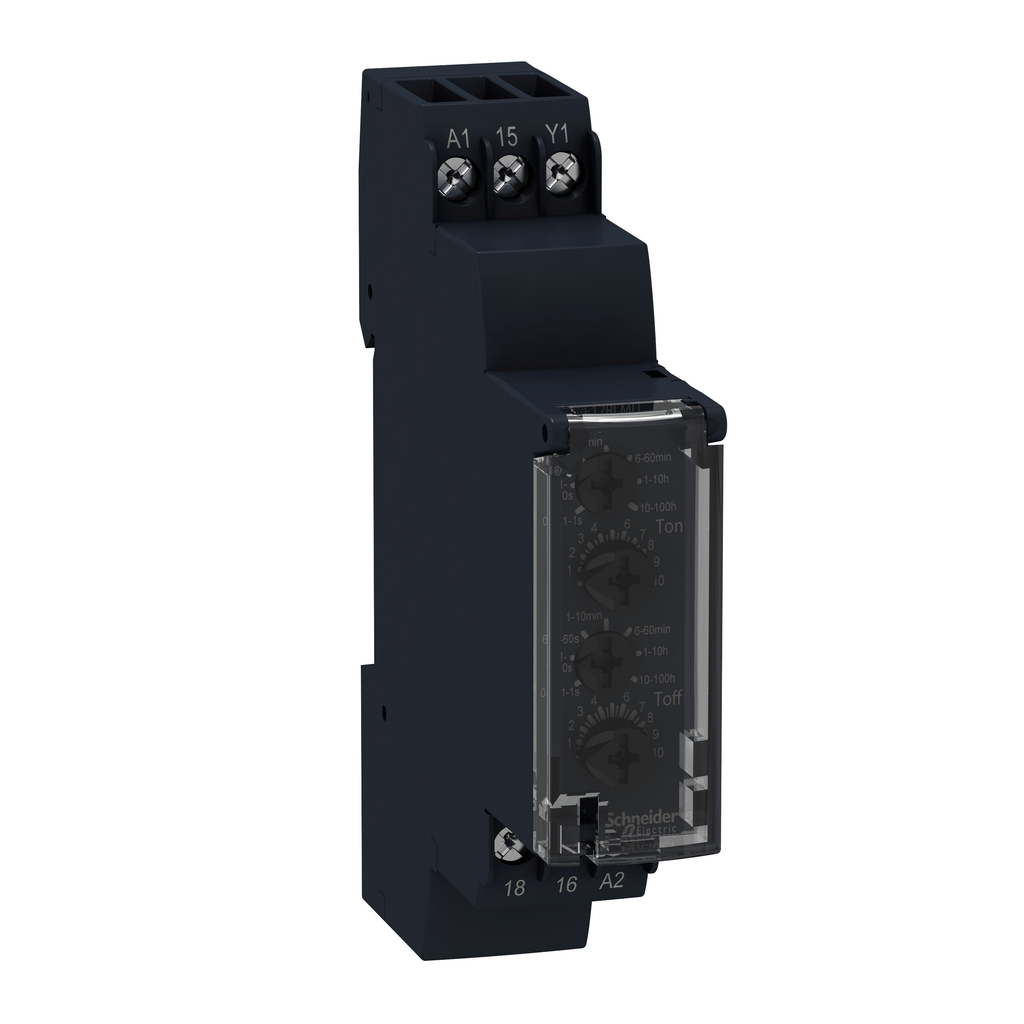

Schneider Electric RE17RLMU Multi-Function Timing Relay 8 Amp 24 to 240 VAC 24 VDC

Product Description

The Schneider Electric RE17RLMU is a versatile multi-function timing relay designed for various automation tasks. This relay supports a voltage range from 24 volts direct current to 240 volts alternating current, delivering a maximum output rating of 8 amps. It features a slim profile, measuring seventeen point five millimeters wide, enabling efficient installation on DIN rails, thus saving space in control panels.

• Adjustable timing from 0.1 seconds to 100 hours
• Single pole double throw (SPDT) contact configuration
• Offers rotary trimmers for precise settings

Product Highlights

Ideal for hard-wired logic schematics and refurbishment projects where a programmable logic controller (PLC) is not required. The relay includes a sealable cover for enhanced durability, making it suitable for both commercial and industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D/Schneider

Technical Specifications

• Catalog Number: RE17RLMU
• Input Voltage: 24V DC, 24V to 240V AC
• Depth: 2.83 inches
• Width: 0.69 inches
• Height: 3.54 inches
• Weight: 0.15 lb
• Contact Rating: 8 A
• Operating Temperature: -20 to 60 degrees C
• Country of Origin: Indonesia
