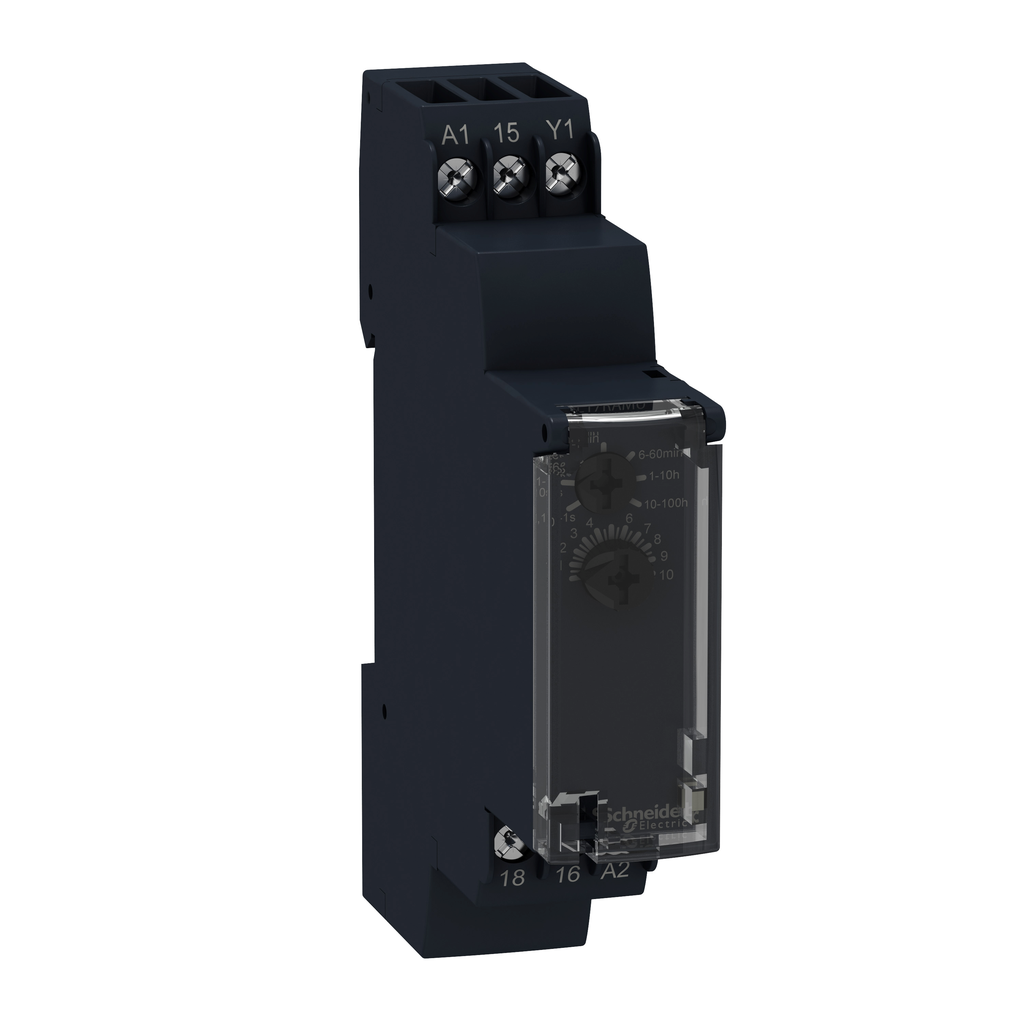

Schneider Electric RE17RHMU SQD RE17RHMU dual function relay, H

Product Description

Schneider Electric RE17RHMU is a dual function timing relay. It operates from one-tenth of a second to one hundred hours. This product has an output rating of eight amps. It is 17.5 millimeters wide, and is compatible with input voltages of 24 volts DC and 24 to 240 volts AC. The relay features a single-pole double-throw contact configuration.

• Configurable timing from 0.1 seconds to 100 hours
• Output rated at 8A
• 1 SPDT (single pole double throw) contact

Product Highlights

This timing relay allows for flexible installation on DIN rails due to its slim design. It uses the same space as a standard one-pole DIN device. The relay features a cover that can be sealed, along with simple rotary trimmers for precise adjustments. Ideal for integration into hard-wired logic systems, this timer is a reliable choice for upgrading older installations without additional programmable logic controllers (PLC).

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RE17RHMU
• Contact Rating: 8 A
• Depth: 72 mm
• Width: 17.5 mm
• Height: 90 mm
• Weight: 0.15 lb
• Operating Temperature: -20 to 60 degrees C
• Storage Temperature: -30 to 60 degrees C
• Country of Origin: Indonesia
• GTIN: 03606480552700
