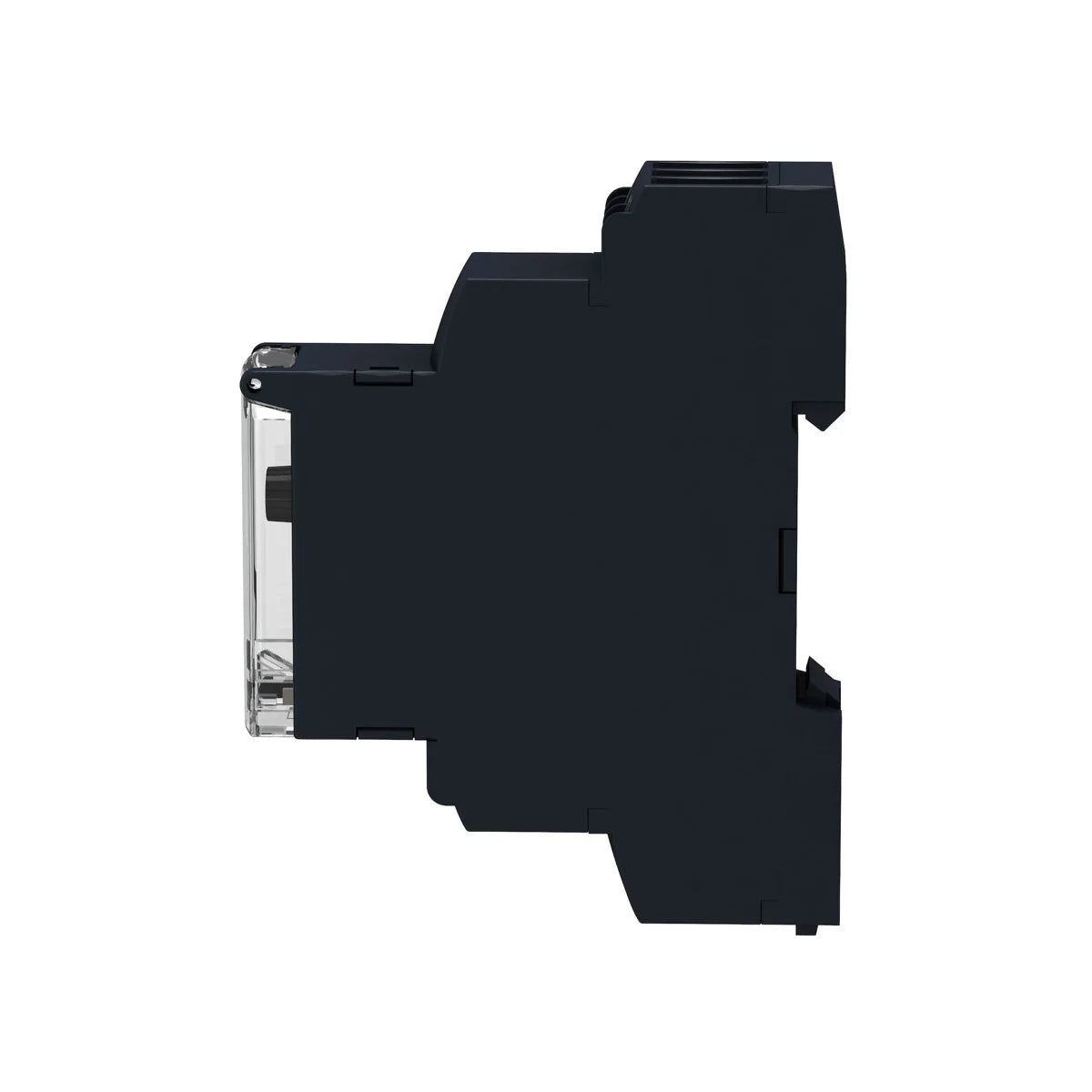

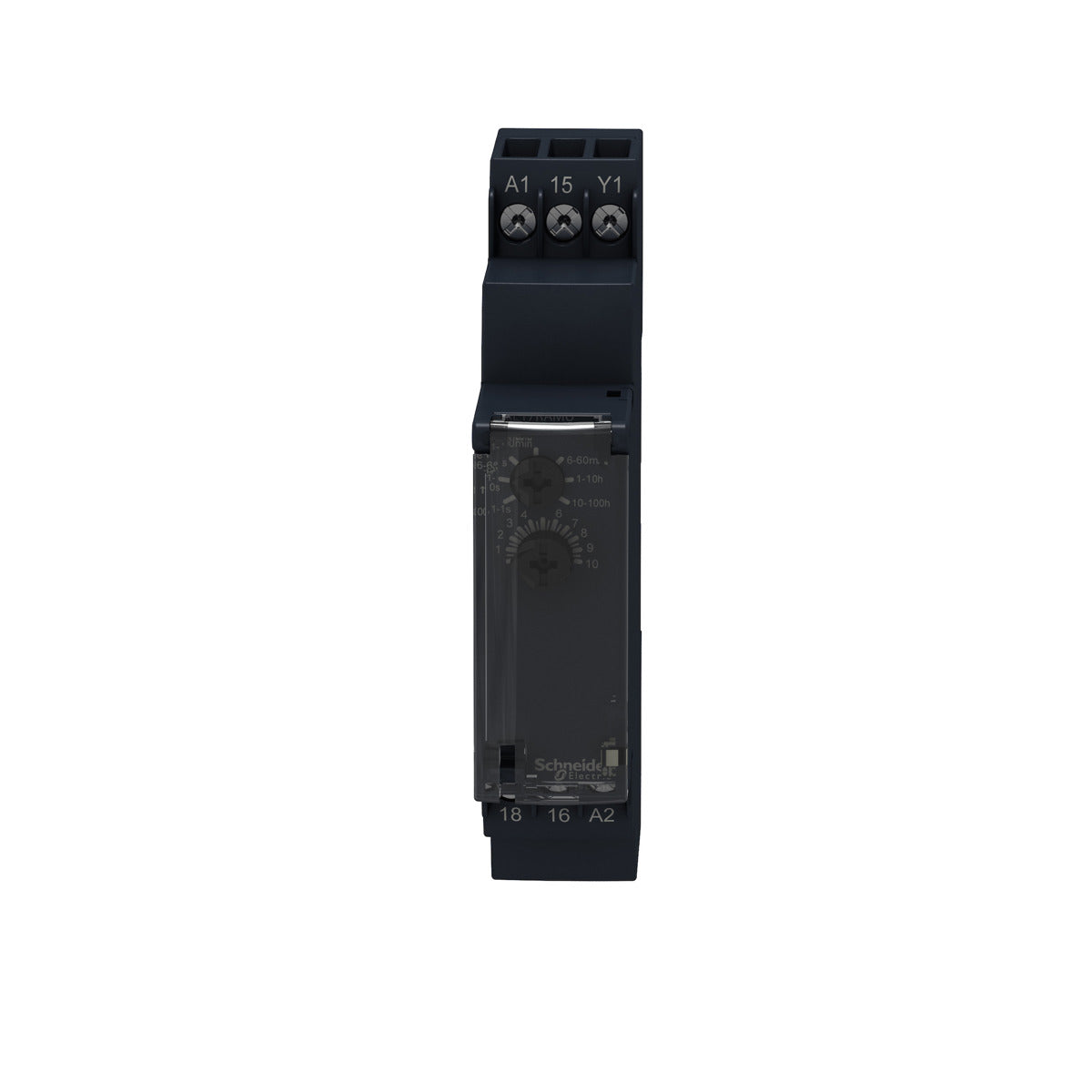

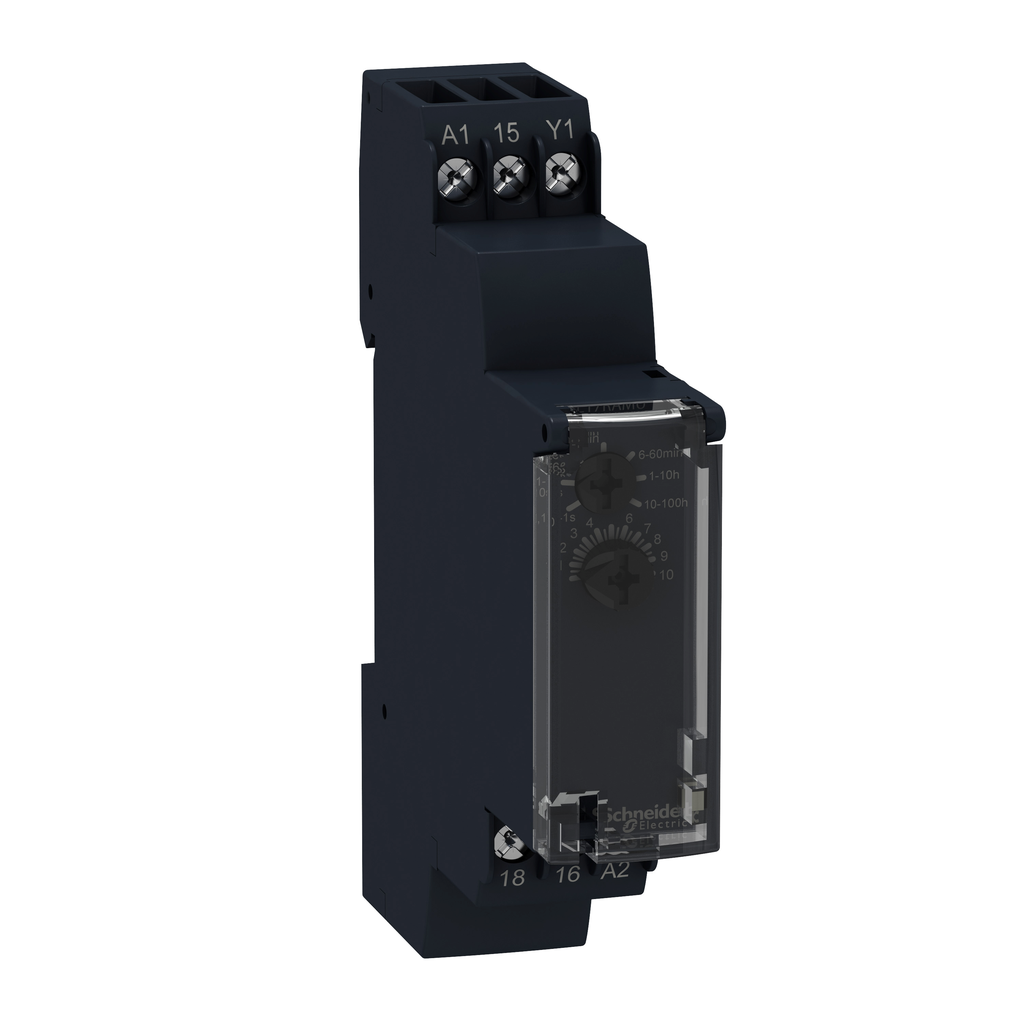

Schneider Electric RE17RCMU Multi-Function Timing Relay 24 to 240 VAC 24 VDC 8 Amp 1 Second to 100 Hour

Product Description

The Schneider Electric RE17RCMU is a multi-function timing relay with settings between 0.1 seconds and 100 hours. It has an output rating of 8 amps and operates with input voltage options of twenty-four volts direct current or twenty-four to two hundred forty volts alternating current. This relay features one single pole double throw (SPDT) changeover contact.

• Compact design with a width of seventeen point five millimeters
• Reliable operation with a sealable cover
• Suitable for DIN rail mounting

Product Highlights

Ideal for various automation and control applications, this timer enables simple integration into existing systems and is great for upgrading older installations without needing additional control devices.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RE17RCMU
• Input Voltage: 24V DC, 24 to 240V AC
• Contact Rating: 8A
• Operating Temperature: -20 to 60 degrees Celsius
• Contact Configuration: 1 C/O
• Net Weight: 0.07 kg
• Dimensions: 2.83 inches (length), 17.5 mm (width), 90 mm (height)
• Certifications: CSA, CULus, GL
