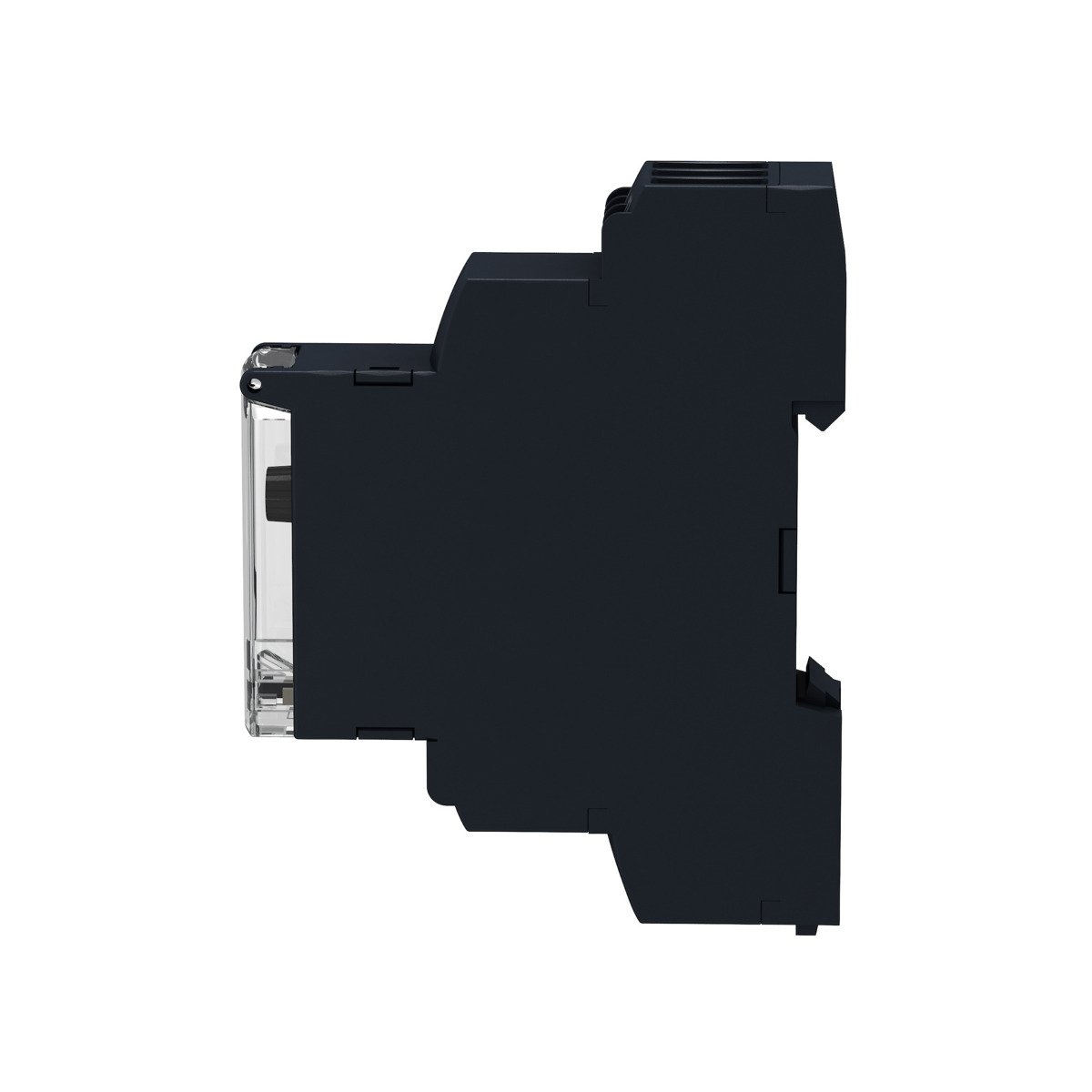

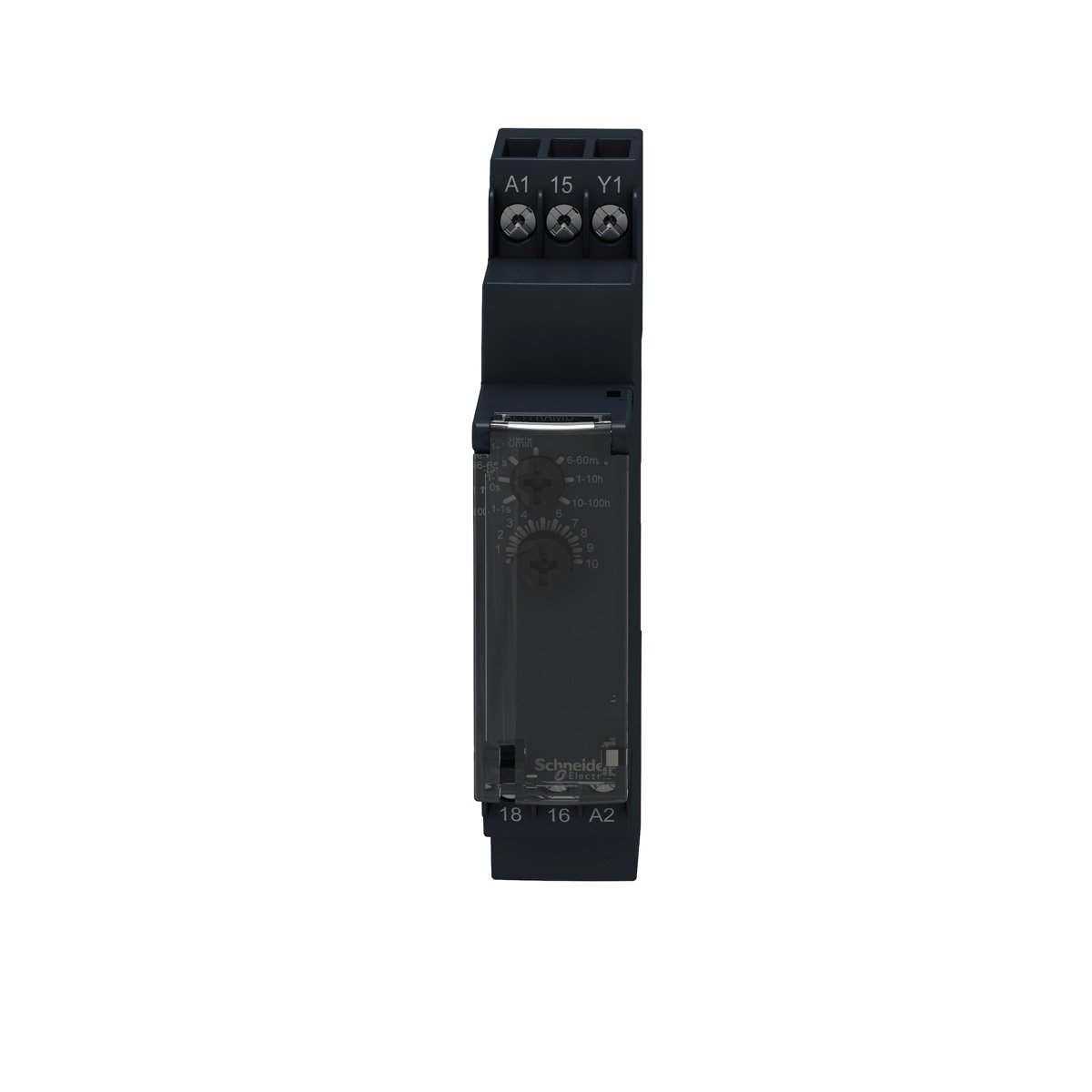

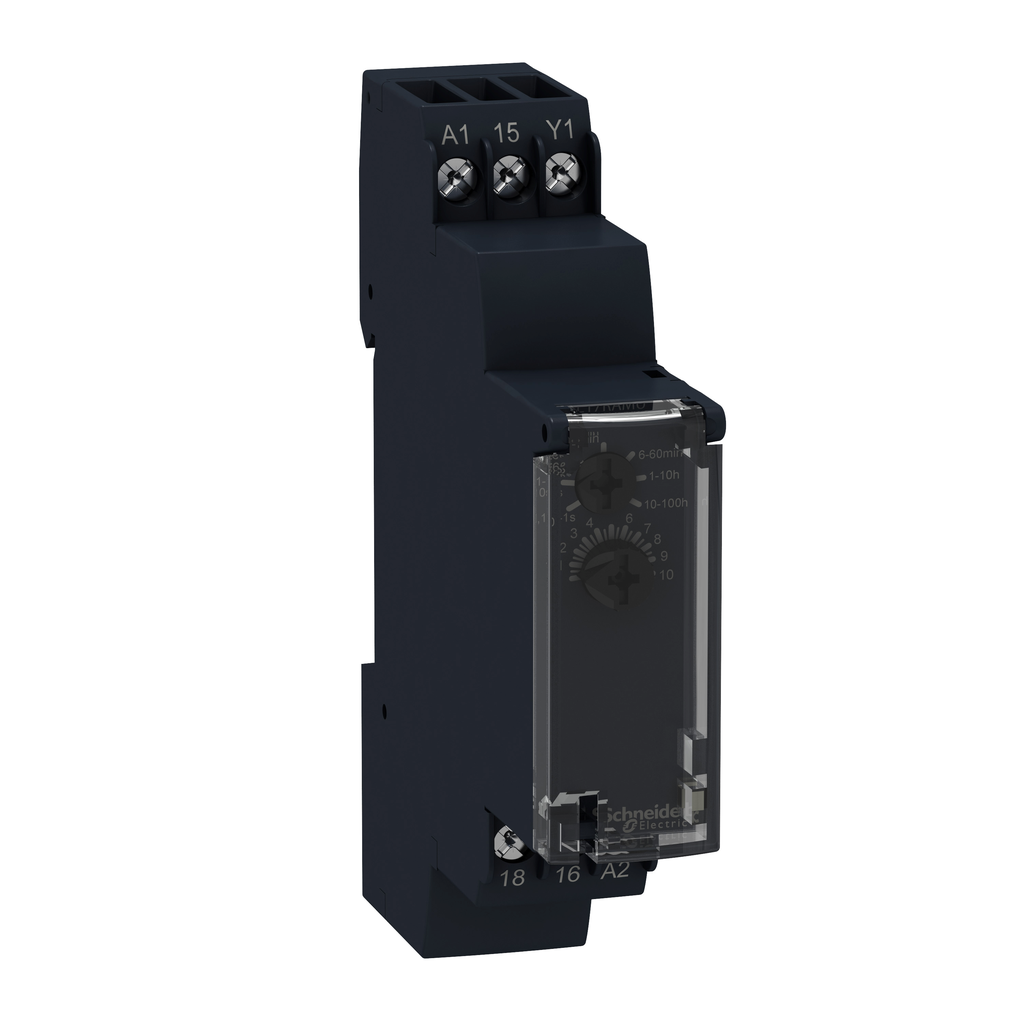

Schneider Electric RE17RAMU 24 to 240 VAC 24 VDC 8 Amp 1 Second to 100 Hour Multi-Function Timing Relay

Product Description

This Schneider Electric RE17RAMU timing relay operates between zero point one seconds and one hundred hours. It supports an output rating of eight amps and a width of seventeen point five millimeters. This relay can be supplied with twenty-four volts DC and twenty-four to two hundred forty volts AC. It features one changeover contact including single pole double throw.

• Set timing from 0.1 seconds to 100 hours.
• Output rating of 8A.
• Compact design for easy DIN rail installation.

Product Highlights

This timing relay's slim form-factor enables flexible installation on standard DIN rails, using minimal space. It includes a sealable cover for safety, along with precise settings using rotary trimmers. Ideal for applications requiring pause and summation control signals, it integrates easily into hard-wired logic circuits, making it suitable for modernizing older setups without a PLC.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: RE17RAMU

Technical Specifications

• Input Voltage: 24 V DC, 24 to 240 V AC
• Operating Temperature: -20 to 60 degrees C
• Storage Temperature: -30 to 60 degrees C
• Depth: 72 mm
• Width: 17.5 mm
• Height: 90 mm
• Weight: 0.15 lb
• Contact Rating: 8 A
• Country of Origin: Indonesia
