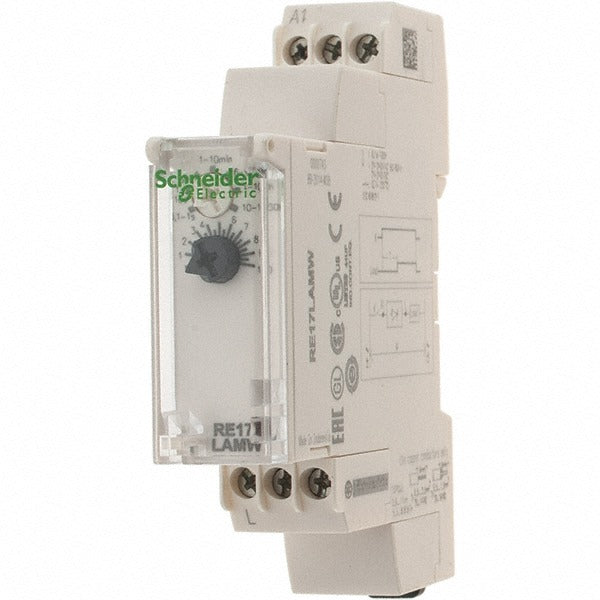

Schneider Electric RE17LAMW Time Delay Relay 100 Hr Spst

Product Description

The SCHNEIDER ELECTRIC RE17LAMW is a multi-range, power-on delay time delay relay designed for industrial and commercial control panel applications. It accepts a wide input voltage range of 24 to 240 volts AC or DC, making it adaptable across a broad range of control circuits without requiring separate SKUs for different supply voltages. Timing is adjustable via a front-mounted selector switch, with a minimum delay of 0.1 seconds and a maximum delay of 100 hours across multiple selectable timing ranges. The relay features an SPST contact configuration rated at 0.7 amps. Licensed electricians and control panel integrators are the primary installers of this component.

This relay is suited for residential, commercial, and light industrial control panel wiring where a power-on time delay function is required. Typical applications include sequencing HVAC equipment startups, delaying motor or fan engagement after power restoration, and time-controlled switching in building automation or process control circuits. The wide voltage input range simplifies sourcing across projects that use 24-volt low-voltage controls as well as 120 or 240-volt line-voltage systems.

Key Features

• Power-on delay timer function with adjustable delay from 0.1 seconds to 100 hours
• Multiple selectable timing ranges via front selector switch
• Wide input voltage range: 24 to 240 volts AC or DC
• SPST contact output rated at 0.7 amps
• Compact form factor suitable for DIN rail or panel mounting in control enclosures

Compatibility

Designed as an OEM-style replacement or new-installation time delay relay for control panels requiring a power-on delay function with a wide AC or DC supply voltage range.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC guidelines for control circuit wiring. De-energize and lock out the control panel before installing or replacing the relay. Verify input voltage supply matches the relay's rated range before energizing. Do not exceed the 0.7 amp contact rating when sizing the controlled load.
