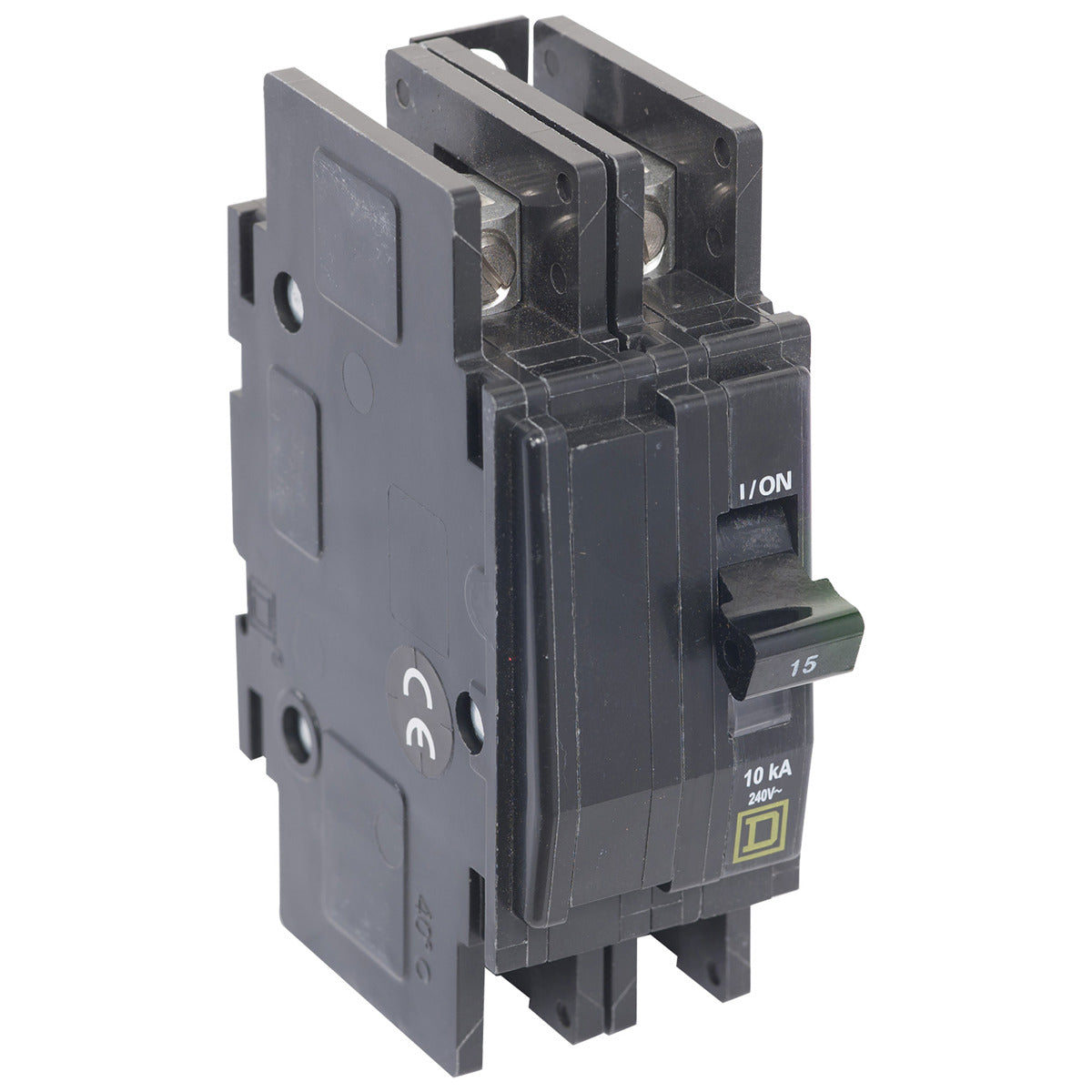

Schneider Electric QOU210B Mini Circuit Breaker 10A 2 Pole 120/240 VAC

Product Description

The Schneider Electric QOU210B is a two-pole miniature circuit breaker rated for ten amps and designed for 120/240 VAC systems. This unit provides essential overcurrent protection for both alternating current and direct current applications, making it suitable for various OEM uses.

• 10 kA breaking capacity for reliable circuit interruption
• Compatible with DIN rail, surface, or flush mounting
• UL Listed and CSA Certified for safety

Product Highlights

The QOU210B circuit breaker features a trip-free toggle mechanism for quick operation and visual trip indication through the VisiTrip system. The product is designed to accept wire sizes from fourteen AWG to two AWG.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOU210B
• Voltage Rating: 120/240 V AC; 48 V DC
• Connection: Slotted box lugs for copper or aluminum wire
• Country of Origin: Mexico
• Warranty: Contractual warranty of 18 months
• Item Type: Miniature circuit-breaker
• Width: 1.5 inches
• Height: 4.05 inches
