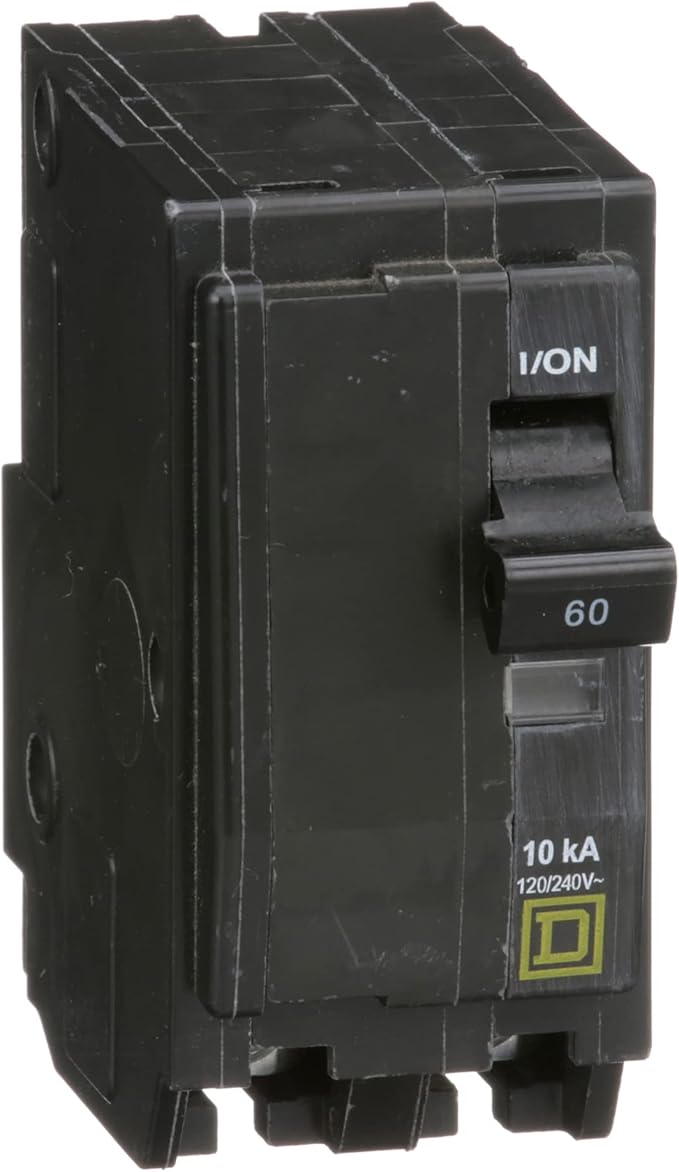

Schneider Electric QO260 Miniature Circuit Breaker 60-Amp

Product Description

The Schneider Electric QO260 is a miniature circuit breaker that offers protection against overcurrent in AC and DC systems. It is rated for 120/240-Volt and 60-Amp. This 2-pole breaker is designed with a trip-free toggle mechanism which allows for quick make and break actions. Additionally, it features VisiTrip trip indication, providing a clear visual signal that the breaker has been tripped and the circuit is interrupted.

• Provides overcurrent protection
• Features a trip-free toggle mechanism
• Offers VisiTrip trip indication

Product Highlights

This circuit breaker is ideal for residential and commercial applications, ensuring safety in electrical systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: QO260

Technical Specifications

• Current Rating: 60 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Snap-In Mount
• Number Of Poles: 2
• Voltage: 240 Volts
• Interrupt Rating: 10 kA
• Rated Voltage: 120/240V ac
• AWG Range: AWG 8...AWG 2
• Torque: 5-5 N.m
• Height: 3.1 inches
• Depth: 2.9 inches
• Width: 1.5 inches
