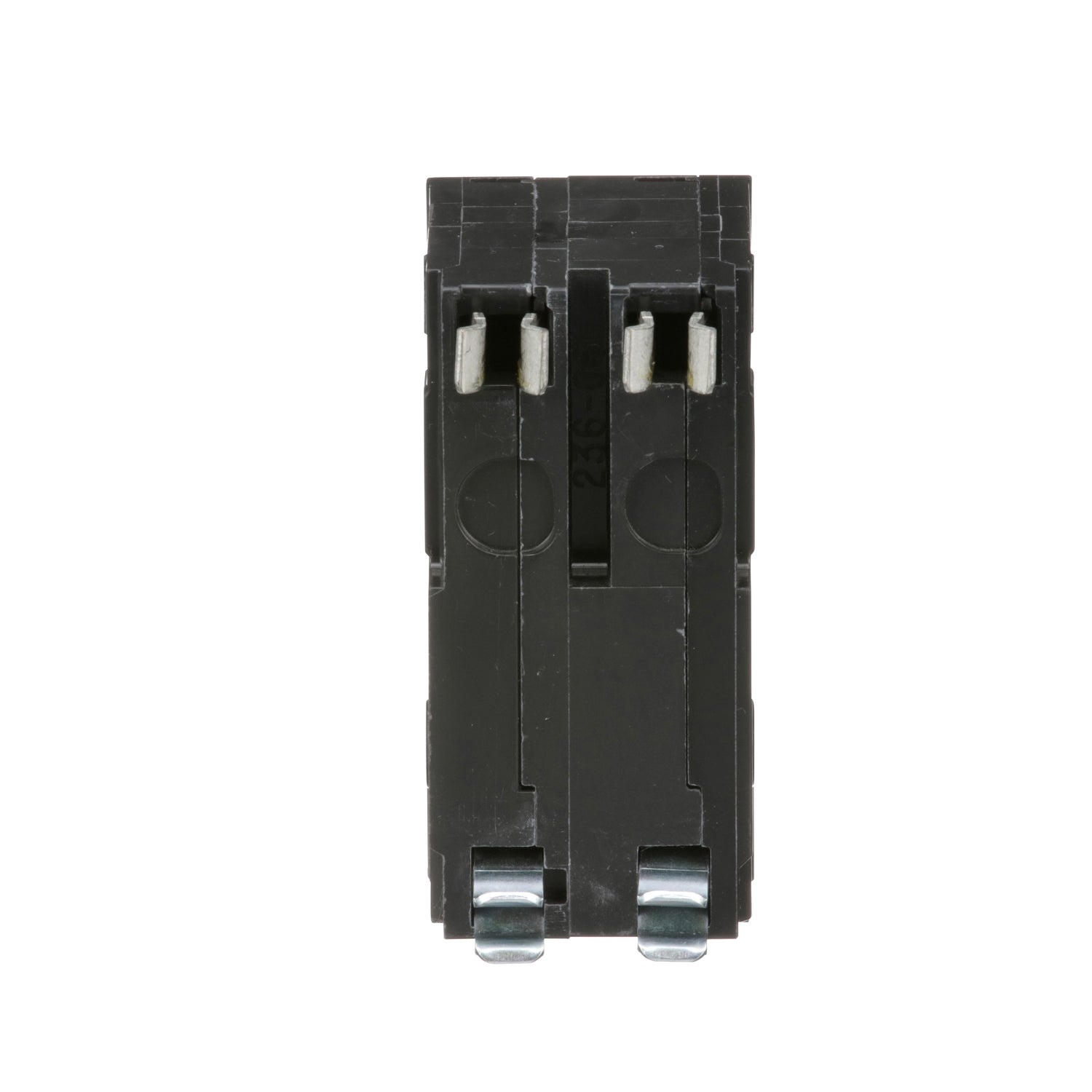

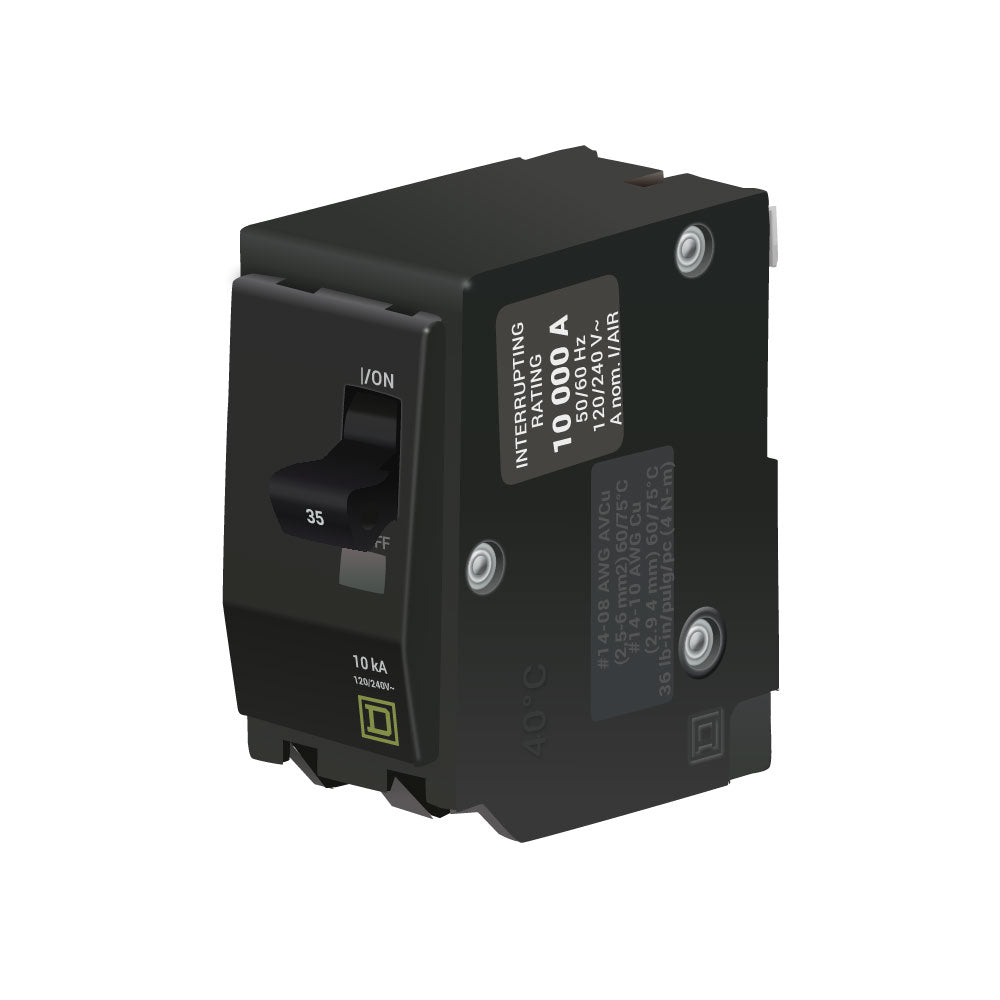

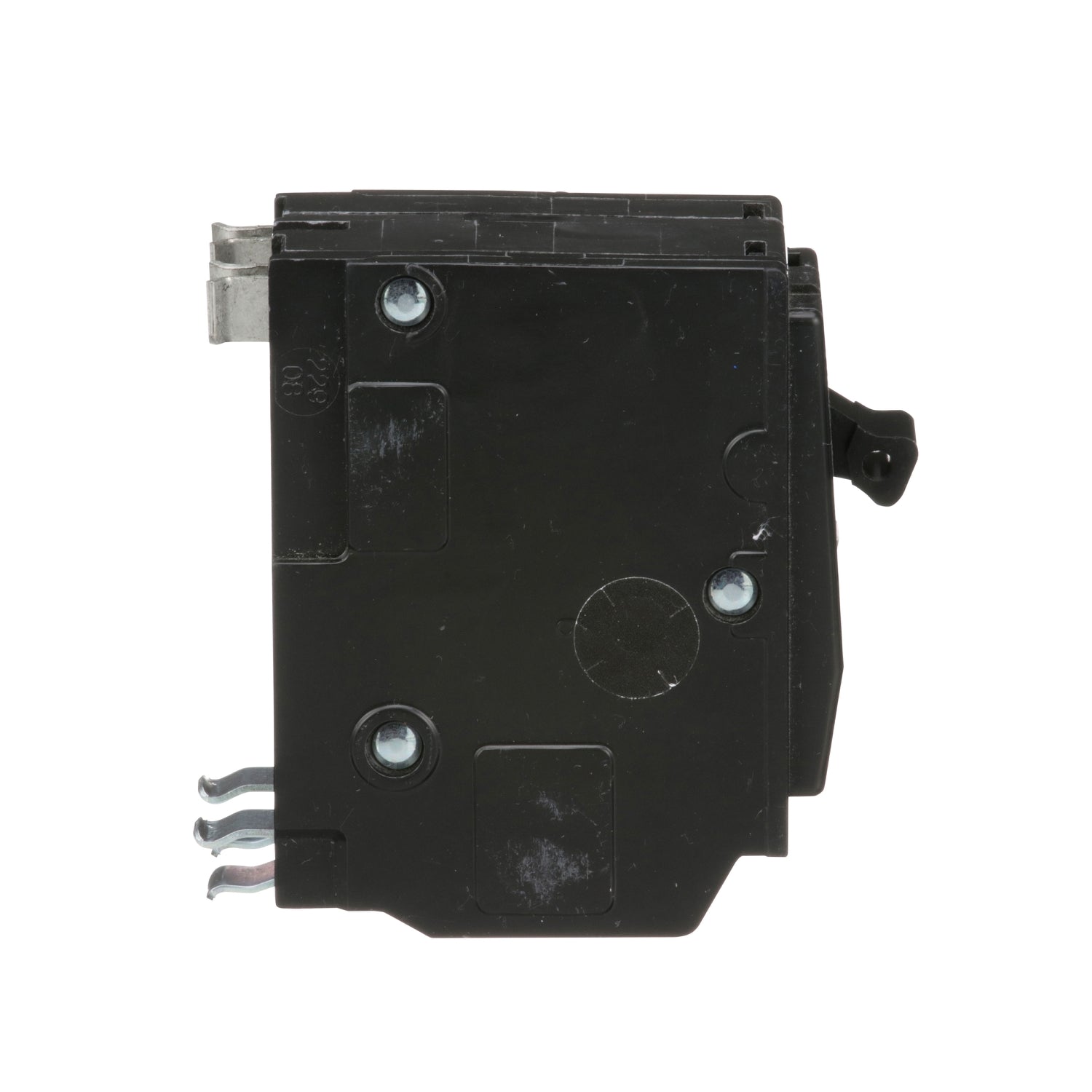

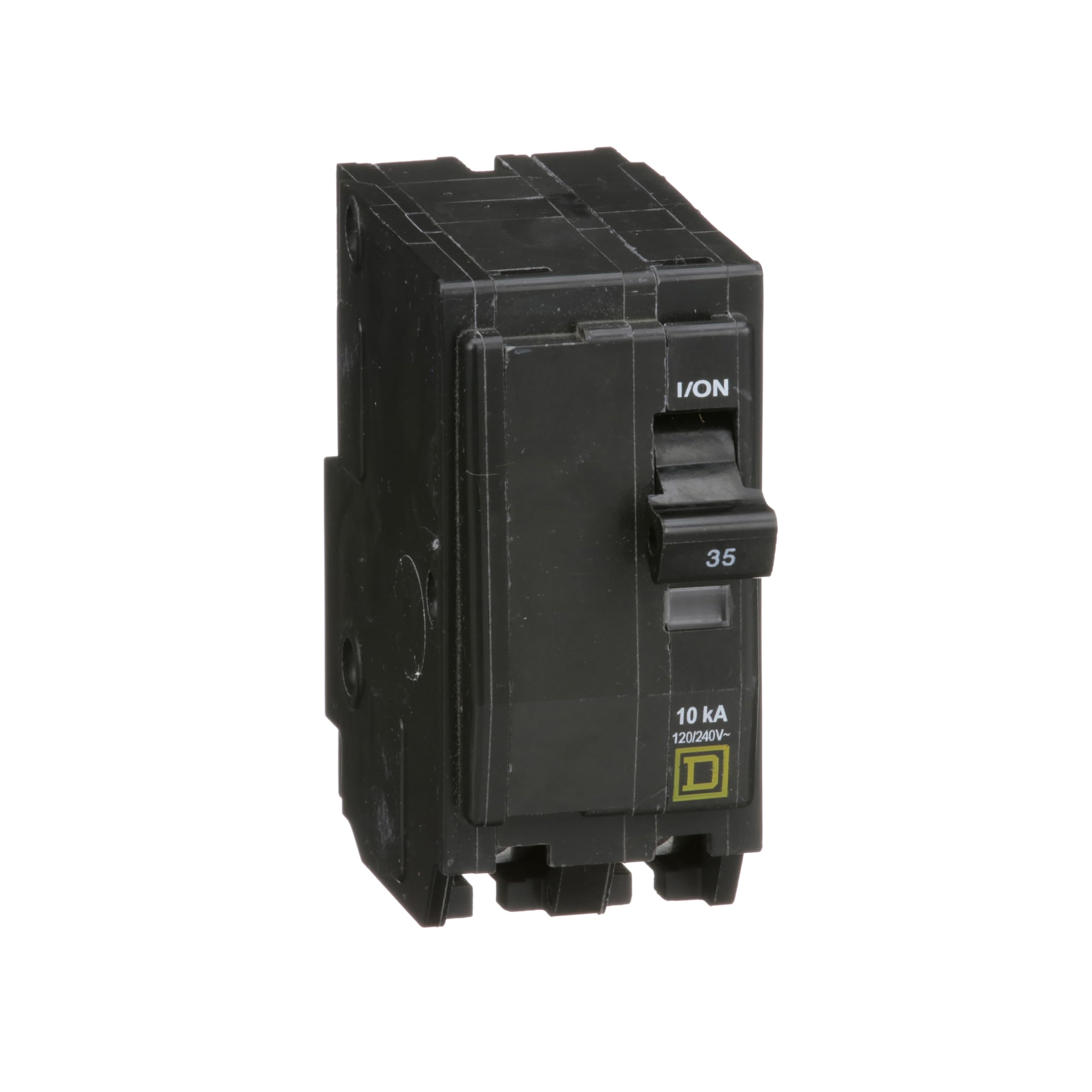

Schneider Electric QO235 mini circuit breaker 35A 120/240VAC 2 pole

Product Description

The SCHNEIDER ELECTRIC QO235 is a 2-pole, 35 Amp miniature circuit breaker designed for 120/240VAC systems. This QO series thermal magnetic circuit breaker provides overcurrent protection with a 10kA interrupting rating. It features plug-in mounting for use in QO load centers, NQOD panelboards, and OEM interior/Speed-D switchboard distribution panels. The unit supports 8 to 2 AWG wire and includes a Visi-Trip indicator.

• 2-pole, 35 Amp rating for 120/240VAC systems
• 10kA interrupting rating provides overcurrent protection
• Plug-in mounting for QO load centers and panelboards

Product Highlights

Features Visi-Trip indication for clear identification of tripped circuits and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: QO235
• Country of Origin: Mexico

Technical Specifications

• Brand: SCHNEIDER ELECTRIC
• MPN: QO235
• Product Type: Mini Circuit Breaker
• Series: QO
• Current Rating: 35A
• Number of Poles: 2
• Voltage Rating: 120/240 VAC at 50/60 Hz
• Interrupting Rating: 10 Kiloampere
• Mounting Type: Plug In
• Terminal Type: Box Lug
• Wire Size: 8 to 2 AWG (Aluminum/Copper)
• Application: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
• Certifications: UL Listed under UL File E84967 and CSA Certified under CSA Master Contract 153555
• Includes: Visi-Trip Indicator
• Torque: 5 N.m
• Ambient Temperature: 40 °C
