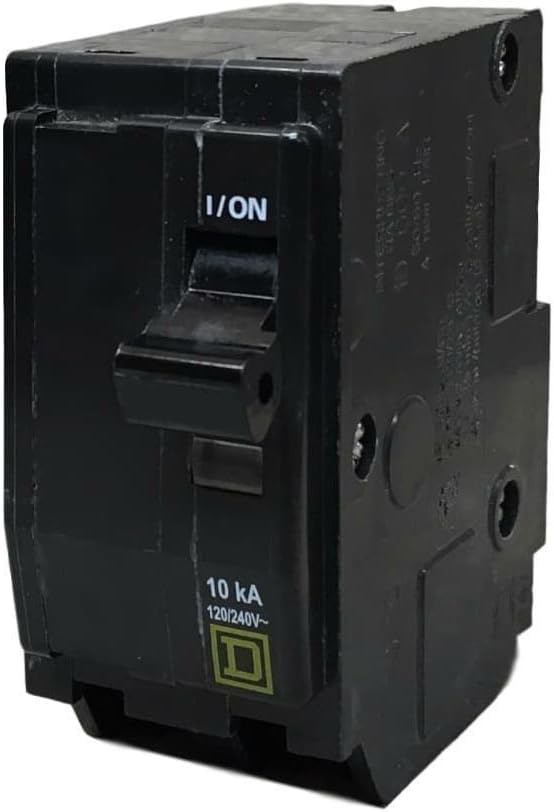

Schneider Electric Q250 QO Miniature Circuit Breaker 50-Amp

Product Description

The SCHNEIDER ELECTRIC Q250 is a QO series plug-on miniature circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 50-amp, 120/240-volt, 2-pole circuit breaker has an over center, trip-free toggle mechanism with quick make/break action and positive handle indication.

• Overcurrent protection
• Switching on ac and dc systems
• Over center, trip free toggle mechanism

Product Highlights

The QO250 circuit breaker has VisiTrip trip indication and a 10kA interrupting rating. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: Q250
• Country of Origin: MX - Mexico

Technical Specifications

• Brand: Schneider Electric
• Current Rating: 50A
• Circuit Breaker Type: Standard
• Mounting Type: Plug-In Mount
• Number Of Poles: 2
• Voltage: 240 Volts
• Series: QO
• AWG Range: AWG 8...AWG 2
• Interrupt Rating: 10 kA
• Rated Voltage: 120/240V ac
• Torque: 5-5 N.m

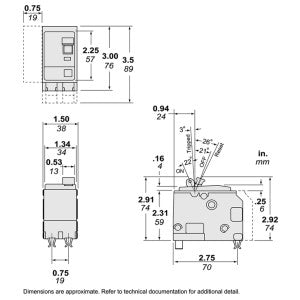

• Height: 79 mm
• Depth: 74 mm
• Width: 38 mm
