Schneider Electric Q225 QO Circuit Breaker 25A

Product Description

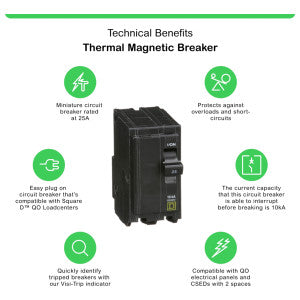

The SCHNEIDER ELECTRIC Q225 is a Square D QO 25 Amp Two-Pole Circuit Breaker designed for overload and short-circuit protection. Equipped with the Visi-Trip indicator, the handle snaps to a midpoint position between "OFF" and "ON" with a red indicator for easy identification of tripped breakers. It is compatible with Square D QO electrical panels and CSED with 2 spaces.

• Plug-on design, easy to install
• Designed to protect against overloads and short-circuits
• Quickly identify tripped breakers with Visi-Trip indicator

Product Highlights

Provides overcurrent protection and switching on AC and DC systems. Features a trip-free toggle mechanism with quick make, quick break action and positive handle indication.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: Q225
• Country of Origin: US

Technical Specifications

• Brand: Schneider Electric
• Current Rating: 25A
• Circuit Breaker Type: Standard
• Mounting Type: Plug-In Mount
• Number Of Poles: 2
• Voltage: 240 Volts
• Series: QO
• AWG Range: AWG 14...AWG 8
• Interrupt Rating: 10 kA
• Rated Voltage: 120/240V ac
• Torque: 5-5 N.m
• Height: 76 mm
• Depth: 74 mm
• Width: 38 mm
