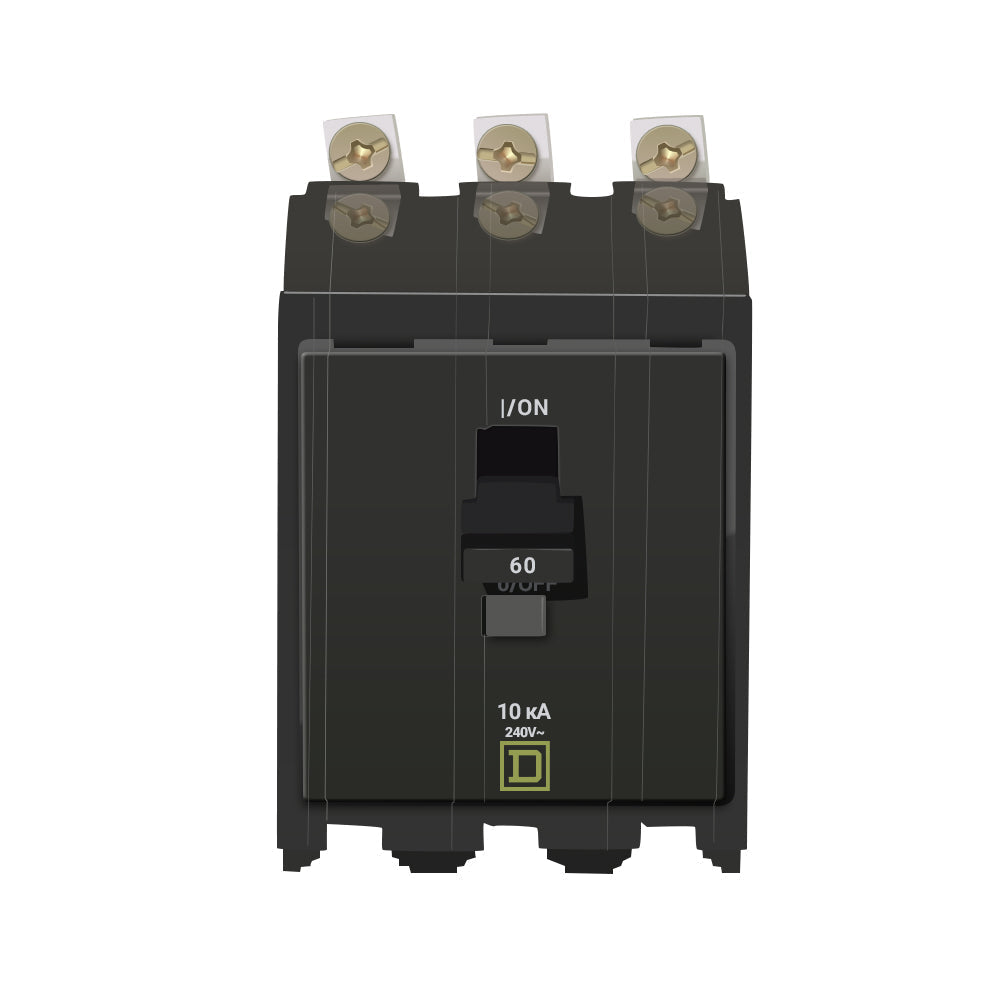

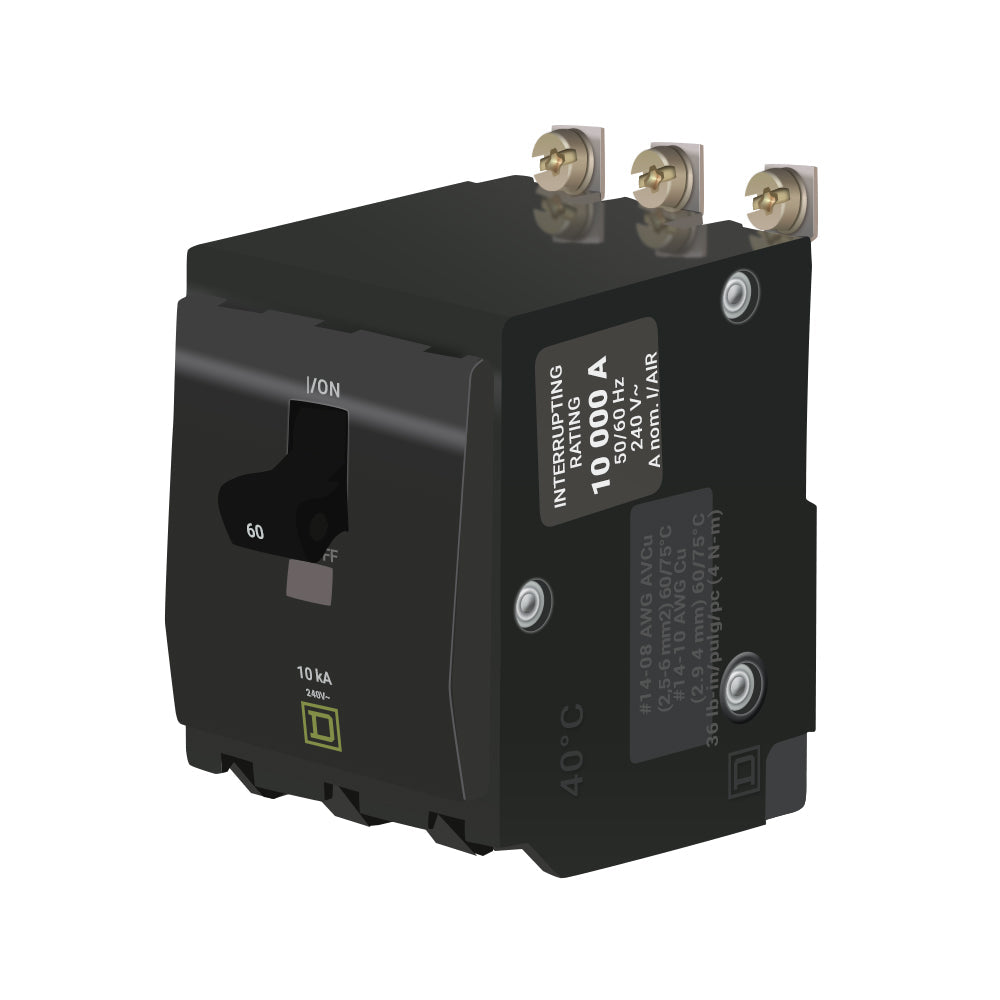

Schneider Electric Q0B360 Circuit Breaker 60 A (3-Pole) SK5668

Product Description

Schneider Electric Q0B360 is a 3-pole circuit breaker designed for overcurrent protection in 3-phase circuits. The breaker is rated 60 A continuous per pole and 240 V AC operating voltage per pole, with a 5000 A interrupting capacity per pole. It uses a thermal-magnetic, time-delay trip release with a manual trip-reset toggle actuator and provides six terminals (3 clip and 3 compression) for mounting.

• Rated 60 A continuous per pole, 240 V AC operating voltage per pole, 3 poles
• Thermal-magnetic time-delay trip release, trip-free main contact, manual reset toggle
• 5000 A interrupting capacity per pole; 3 clip and 3 compression terminals (6 terminal mounting)

Product Highlights

3-pole, 60 A, 240 V AC thermal-magnetic breaker with 5000 A interrupting capacity and six terminal mounting

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: Q0B360
• Country of Origin: USA

Technical Specifications

• Manufacturer: Schneider Electric
• Manufacturer Part Number: Q0B360
• NSN: 5925-00-936-3933
• CAGE Code: 56365
• NIIN: 009363933
• Body Style: Multipole - single actuator type
• Number of Poles: 3
• Continuous Current Rating: 60 A per pole
• Operating Voltage: 240 V AC per pole
• Interrupting Capacity: 5000 A AC per pole
• Circuit Protection Type: Overcurrent
• Trip Release Method: Thermal-magnetic
• Trip Characteristic: Time delay
• Trip Delay Time (at 200% rated current): 25 s minimum, 80 s maximum
• Reset Method: Manual (trip-reset)
• Actuator Type: Single toggle
• Main Contact Mechanism: Trip-free
• Terminal Type and Quantity: 3 clip and 3 compression (6 terminals)
• Mounting: 6 terminal mounting
• Body Dimensions: 3.000 x 2.234 x 2.312 inches (L x W x H) nominal
• Center to Center Terminal Distance: 0.750 inches nominal
• Boss Height: 0.250 inches nominal
• Case Material: Plastic
• Designed For: Fungus resistant enclosure
• Frequency: 60 Hz
• Special Features: Use mounting kit SK5668 when replacing Q1B360
