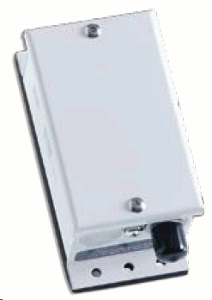

Schneider Electric PHX07S-T1 Differential Air Pressure Transducer

Product Description

The Schneider Electric PHX07S-T1 is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. This device employs a microprocessor-controlled sensor for accurate pressure measurements in steam, air, gas, and liquids compatible with seventeen-four PH stainless steel.

• Monitoring of air ducts, filters, and fans
• Switch-selectable pressure ranges
• Field-selectable output for compatibility with various systems

Product Highlights

This transducer features three switch-selectable ranges and a test mode to verify wiring. Users can automatically zero the output with a pushbutton, and it includes surge damping to minimize false alarms.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: PHX07S-T1
• Pressure Measurement Accuracy: +/- 1 % FS
• Pressure Measurement Range: 0...100 psi (0...7 bar)
• Output Type: 0-5V, 0-10V, 4-20 mA
• Ambient Air Temperature for Operation: -10 to 55 °C
• Burst Pressure: 500 psi (34 bar)
• Wiring Technique: 3-wire
• Device Application: pump and compressor monitoring, gas pressure, energy and water management
• Fitting Size: 1/4 NPT, Male
