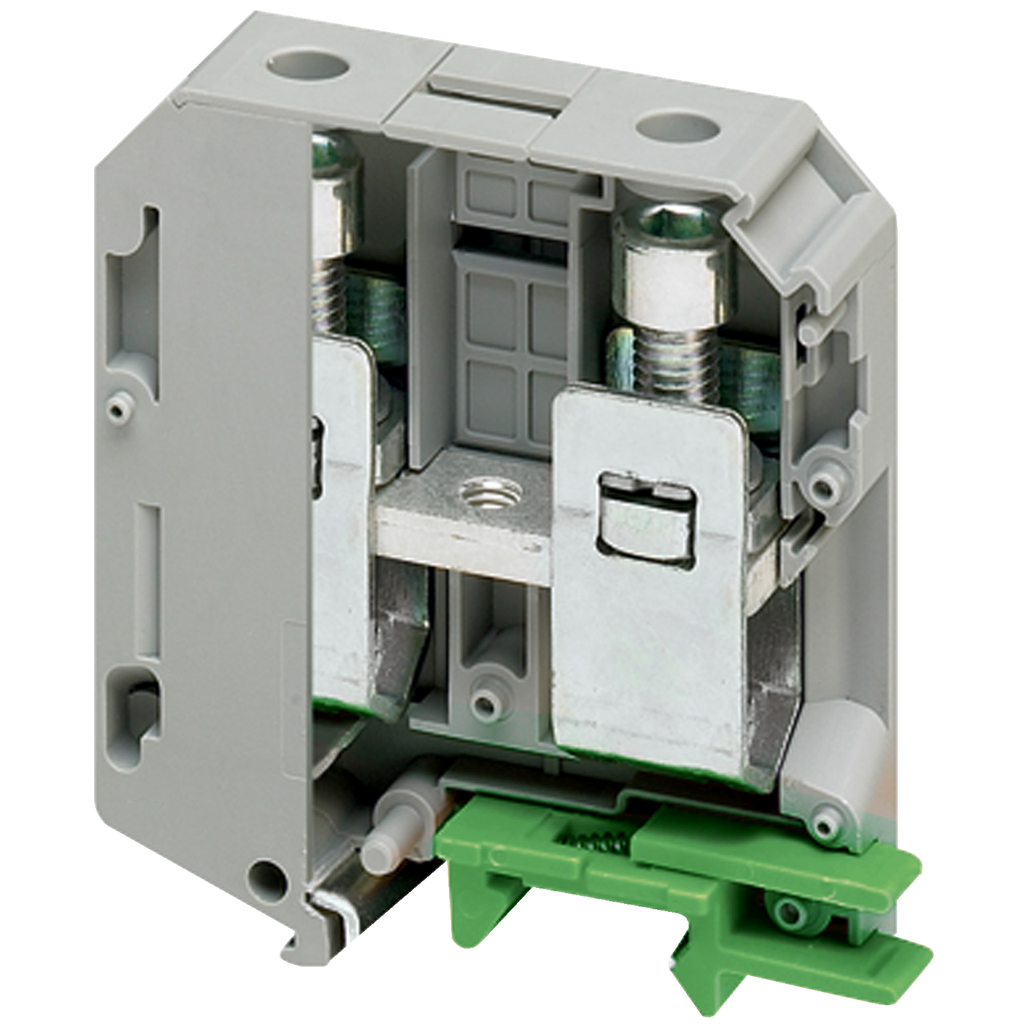

Schneider Electric NSYTRV702 Terminal Block 70 mm 2-Point Gray Replacement MPN

Product Description

The Schneider Electric NSYTRV702 is a reliable terminal block designed for efficient electrical connections. This model features a two-point screw terminal suitable for solid or stranded copper wires up to 4 AWG. The terminal block can accommodate a nominal cross-section of seventy millimeters. Rated for a voltage of 600 volts and current of 192 amps, this product meets various international compliance standards.

• Compatible with spacial enclosures including Prisma and TeSys.
• Operational temperature range from -40 to 130 degrees Celsius.
• Clip-on mounting makes installation quick and simple.

Product Highlights

Efficient connectivity and quick installation make this NSYTRV702 terminal block a suitable choice for electrical distribution applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: NSYTRV702

Technical Specifications

• Catalog Number: NSYTRV702
• Material: Polyamide, Copper Alloy, Chromium-Nickel Steel
• Width: 20.3 mm
• Height: 87.5 mm
• Length: 70.5 mm
• Weight: 6.88 oz
• Voltage: 1000 Volt
• Amperage: 192 Amp
• Wire Size: 0.11 in (70 mm)
• Mounting Type: Clip-On
• Number of Terminations: 2
• Country of Origin: China
• Warranty Length: 18 months
• GTIN: 03606480532238
