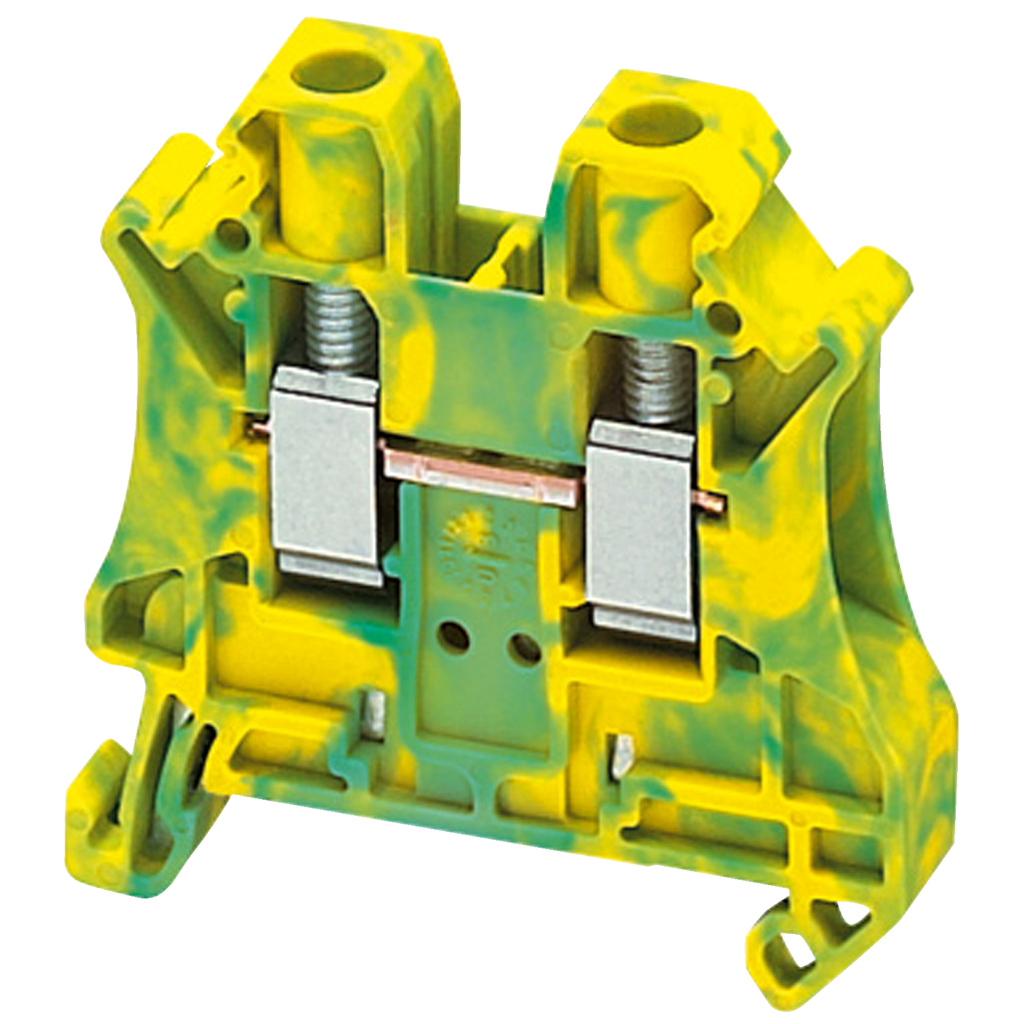

Schneider Electric NSYTRV62PE Square D NSYTRV62PE 6 mm 2-Point Green/Yellow 24 to 8 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric NSYTRV62PE is a terminal block designed for Linergy systems. This device features a nominal cross-section of six millimeters and a green-yellow surface treatment. It allows for clip-on mounting and supports connection through single-level screw terminals, facilitating easy connection and disconnection with a screwdriver.

• Compatible with various enclosures, including Prisma G, Prisma P, and TeSys.
• Operates in ambient temperatures from minus forty to one hundred thirty degrees Celsius.
• Multi-standard certified, including compliance with RoHS/REACH standards.

Product Highlights

The NSYTRV62PE terminal block ensures reliable electrical connections in industrial systems, supporting various wire sizes and installation scenarios.

Product Information

Standard Information

• Catalog Number: NSYTRV62PE
• Manufacturer: Schneider Electric

Technical Specifications

• Wire Size: 0.01 inches (6 mm)
• Material: Polyamide
• Width: 8.2 mm
• Height: 47.5 mm
• Length: 47.7 mm
• Weight: 0.80 oz
• Connection Type: 1 x screw terminal upstream, 1 x screw terminal downstream
• Country of Origin: Germany
